Description

Number of phases: 2
Rated voltage: DC3.4V
Phase resistance (20 ° C): 3.4 x (1 floor 15%) 2 / Phase
Clamping torque: ≥ 290mn. M
Direction (shaft extension): a-ab-b-clockwise
Maximum no-load operating frequency: ≥ 2000 PPS
Electric strength: ac600v / 1mA / 1s
Moment of inertia: 43.2g. cm2
Step angle: 1.8 ° ± 0.09 °
Nominal current: DC 1.0 A / phase
Phase inductance (1kHz): 5.4 X (1 ground 20%) MH / phase
Positioning torque: 20 MN. M
Maximum no-load startup frequency: ≥ 1400pps
Insulation resistance: ≥ 100 MQ (DC 500V)
Insulation class: Class B

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

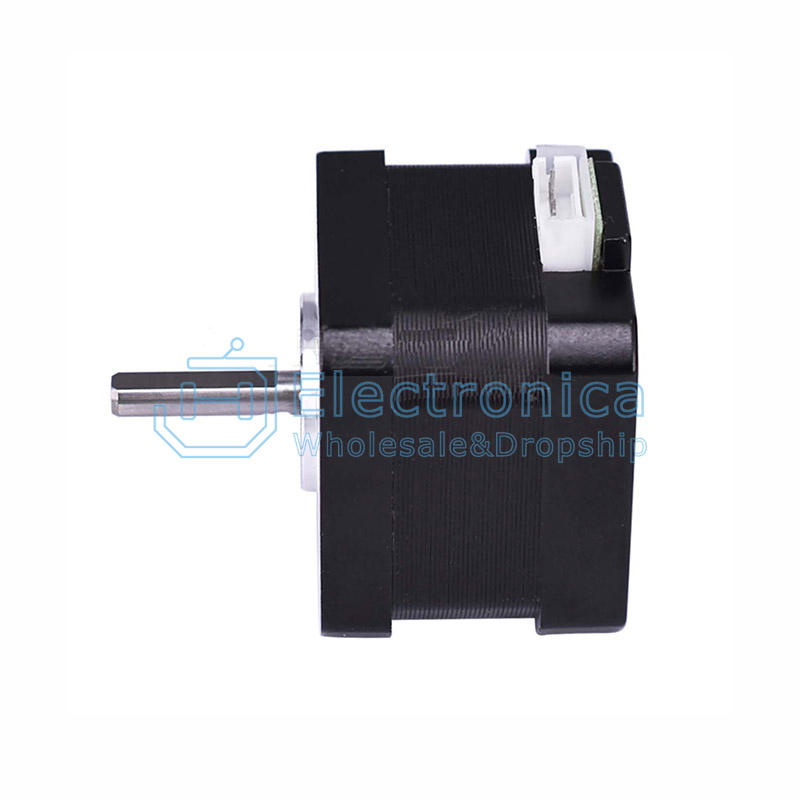

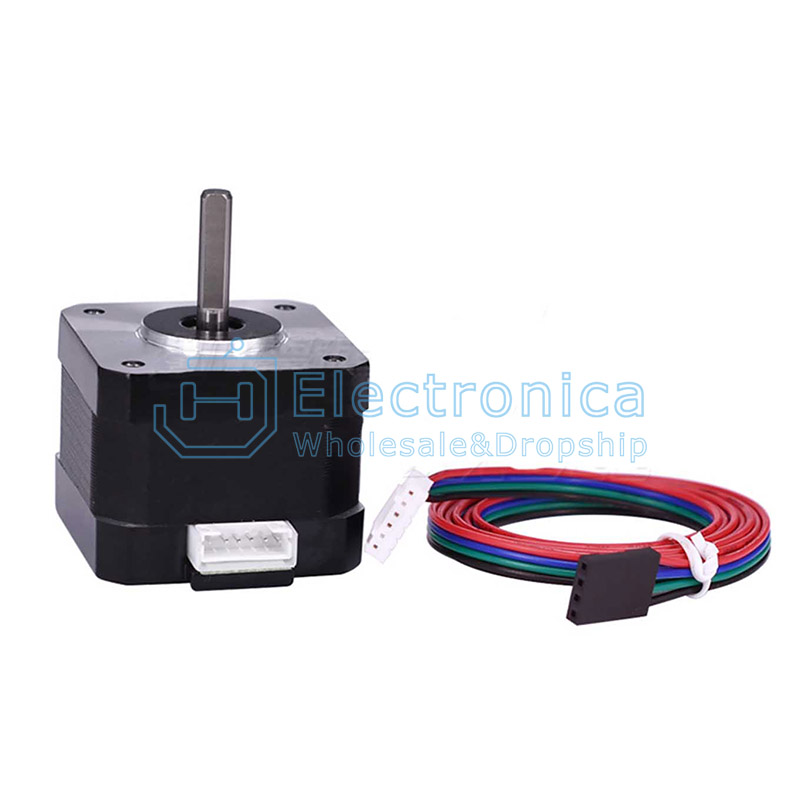

NEMA17HS3401S Two Phase Hybrid 42 Stepper Motor

SKU : YXD159 Brand : JH Sourcing

Price : $ 2.87

100 +: $2.87500 +: $2.871000 +: $2.87
