Description

Step angle:1.8

Positional accuracy:z5%
Resistance accuracy:t10%
Inductance accuracy:t20%
Temperature rise:80C MAX
Ambient Temperature:-10'C-+40'C
Insulation resistance: 100MQMin.500VDC
Dielectric strength:DC 500V
Shaft axial play:0.07 5mm Max of 10N
Shaft radial playL ..0.025mm Max of 5N
Insulation class:ClassB, 130'C
Material: stainless steel

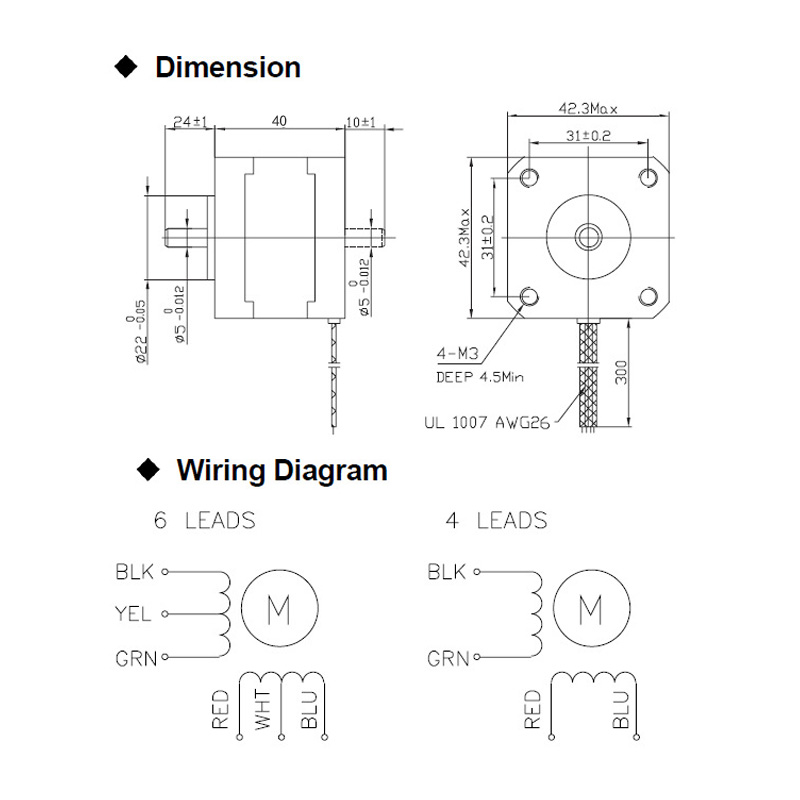

Model: 42BYGH40-1704A
Height: 40mm
Torque: 0.45N.m
Current: 1.7A

Shaft diameter: 5mm, D-type shaft ;shaft length 23mm

Advantages:

1. Pure copper is corrosion resistant, has good thermal conductivity, strong electrical conductivity, stable torque and low temperature.

2, the use of imported bearings, more rigid, high precision.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

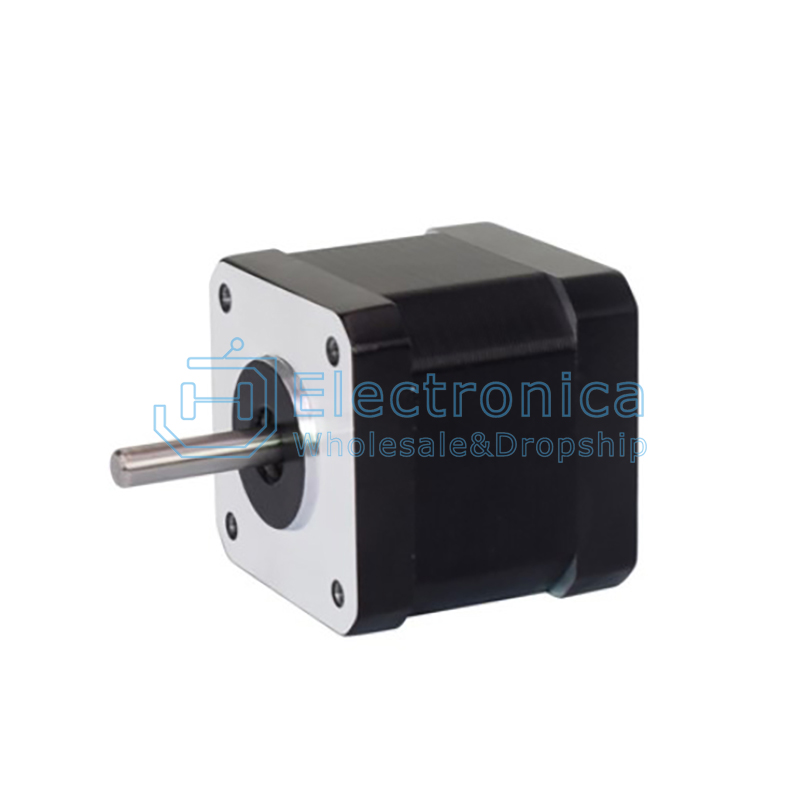

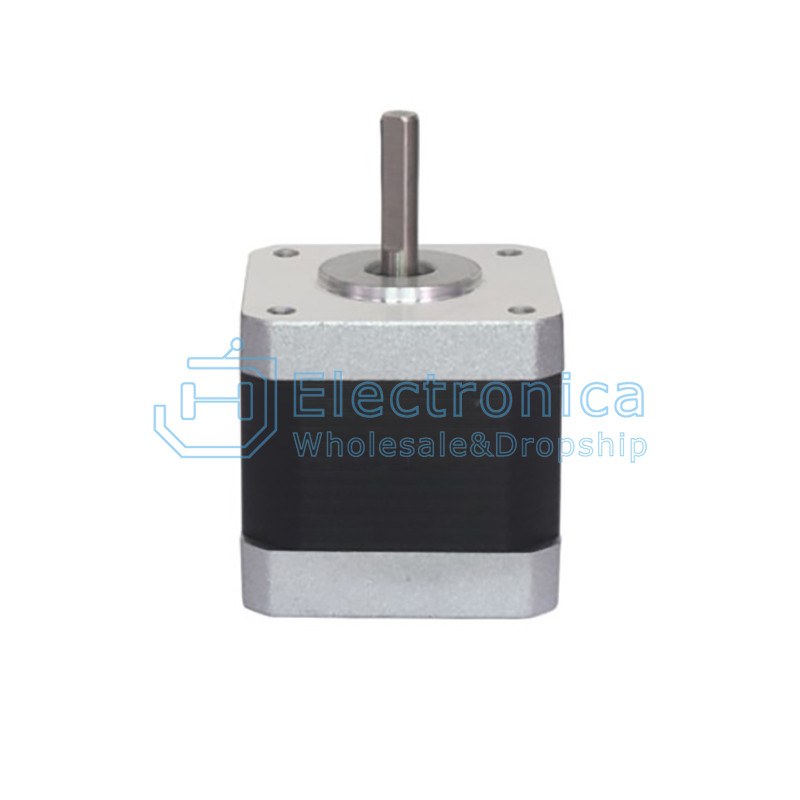

42BYGH40-1704A Stepper Motor

SKU : YXD043 Brand : JH Sourcing

Price : $ 3.16~4.01

100 +: $3.16~4.01500 +: $3.16~4.011000 +: $3.16~4.01
