Description

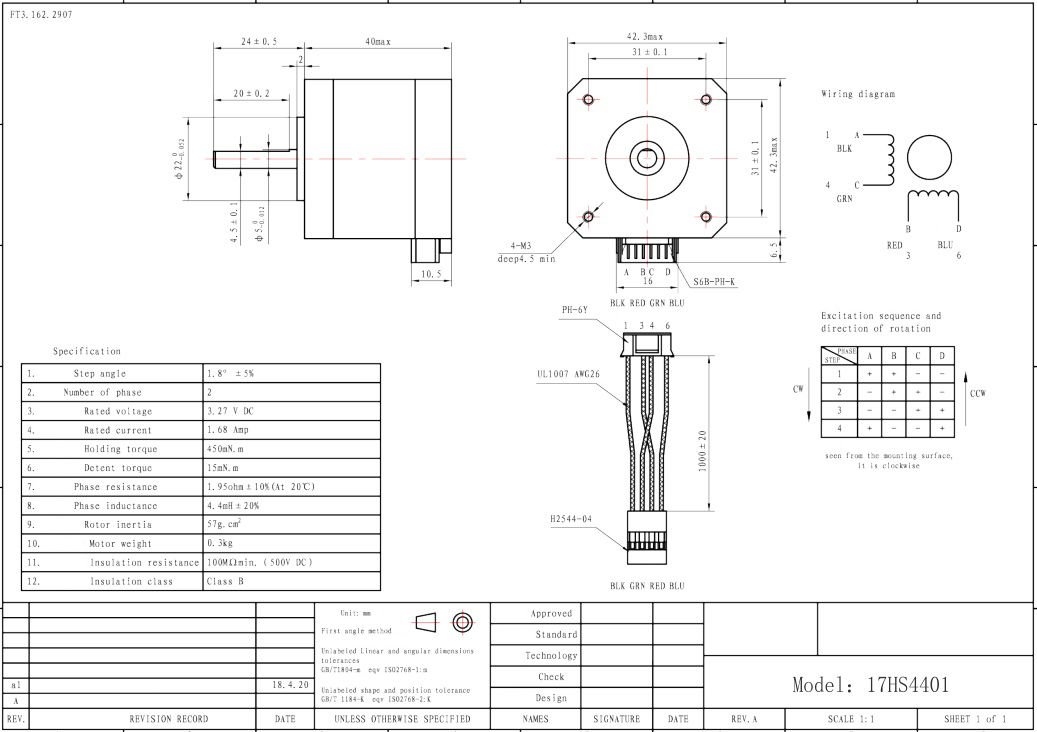

Model : 17HS4401
Phase:2
Step Angle:1.8°
Motor Size:42 x 40mm
Shaft:"D" shaft 21 x Ф5mm
Outlet way:"4" plug line
Motor leads:Dupont line(1M)
Adapter drive:Two-phase step drive
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment, Non-standard Equipment, Placement machine ect.
Electrical Specifications:
Rated Current :1.7A
Resistance/Phase:1.5 Ω
Inductance/Phase：2.8 mH
Holding Torque:40 N.cm
Couple Relaxing:2.2 N.cm
Inertia Of Rotor:54 G. cm2
Lead :4
General Specification:
Precision angle step:±5% (full step, no charge)
Resistance accuracy:±10%
Precision inductance ±20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature:( - 20°)-(+ 50°)
Insulation resistance: 100MΩ Min, 500VDC
Insultion Force:500VAC for a minute

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

NEMA17 17HS4401 Stepper Motor

SKU : YXM001 Brand : JH Sourcing

Price : $ 3.99

100 +: $3.99500 +: $3.991000 +: $3.99

Quantity :

- +

ADD TO CART
