Description

Product characteristics:
1.Support data transparent transmission with mobile phone(IOS,ANDROID) APP(working current about 1mA)
2.Support high-speed transparent transmission between module and module master
3.Support iBeacon function(ultra-low power consumption)
4.Support iBeacon probe function
5.Support BLE Bluetooth probe function
6.Support multi-slave mode, multi-connected slave can be connected with multiple mobile phones, and transmit transparently at the same time
7.Support Bluetooth MESH(networking serial port data communication, output IO control, input button control)
8.MESH networking supports reply and non-answer communication when sending data
9.Networking remote control
Working voltage:1.9-3.6V
Working temperature:-40 ~ 85℃
Maximum transmitting power:+4dbm
Communicalion distance:80m
Antenna:PCB board antenna
Receiving sensitivity:-96dbm
SMT welding temperature:<260℃
Communication interface:UART

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

JDY-24M Bluetooth MESH Networking Module

SKU : YXC975 Brand :

Price : $ 1.24~1.43

100 +: $1.24~1.43500 +: $1.24~1.431000 +: $1.24~1.43

style：

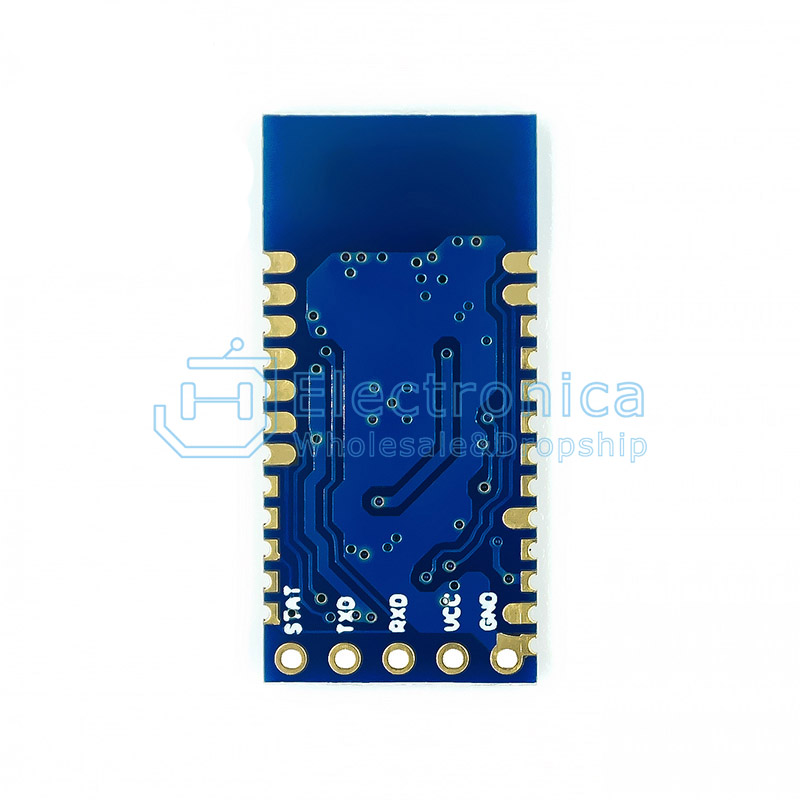

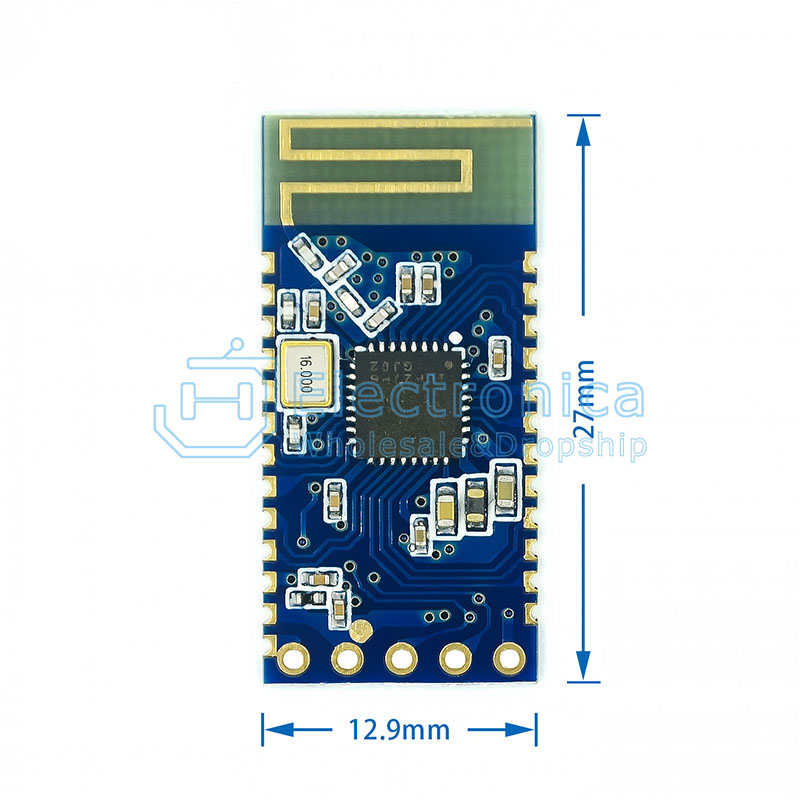

JDY-24M bluetooth patch

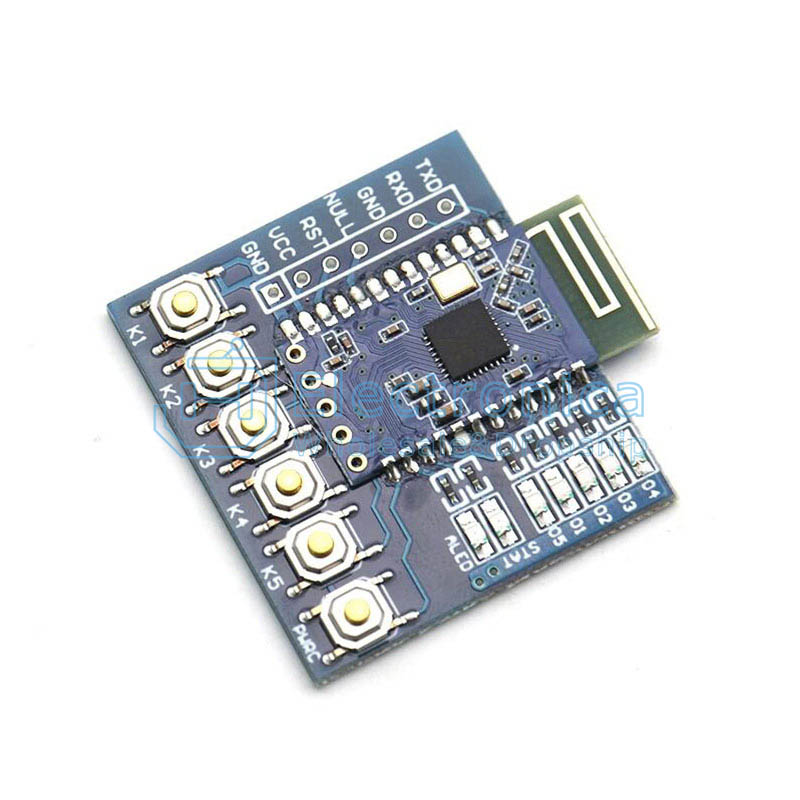

JDY-24M SMD weld button board

Quantity :

- +

ADD TO CART
