Description

Working frequency band:2.4G
Transmission power:4db(Max)
Communication interface:UART
Working voltage:1.8V -3.6V
Working temperature:-40-80℃
Receiving sensitivity: -97dbm
Transmission distance:60m

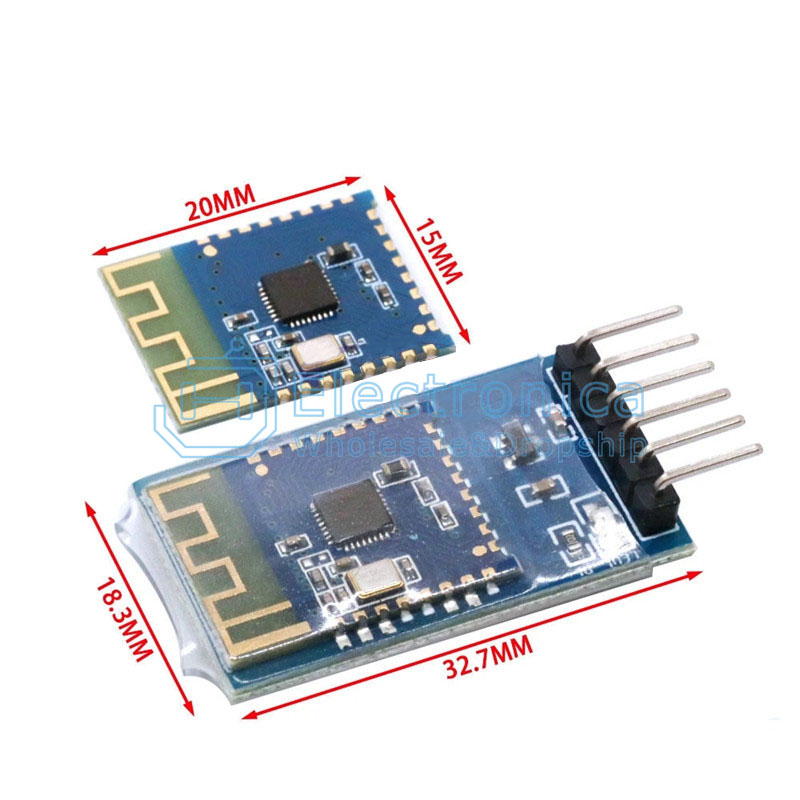

Module size:18.3*32.7mm,20*15mm

Product Introduction
The JDY-23 transparent module is based on the Bluetooth 5.0 protocol standard, with a working frequency band of 24GHz and a modulation method of GFSK. The maximum transmission power is 4db, and the maximum transmission distance is 60 meters. It is designed with imported original chips and supports users to modify device names, baud rates, and other instructions through AT commands, making it convenient, fast, and flexible to use
The JDY-23 Bluetooth module can achieve data transmission between modules and mobile phones, and by default, BLE Bluetooth can be quickly used for product applications without the need for configuration
Make BLE faster and more convenient in product application

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

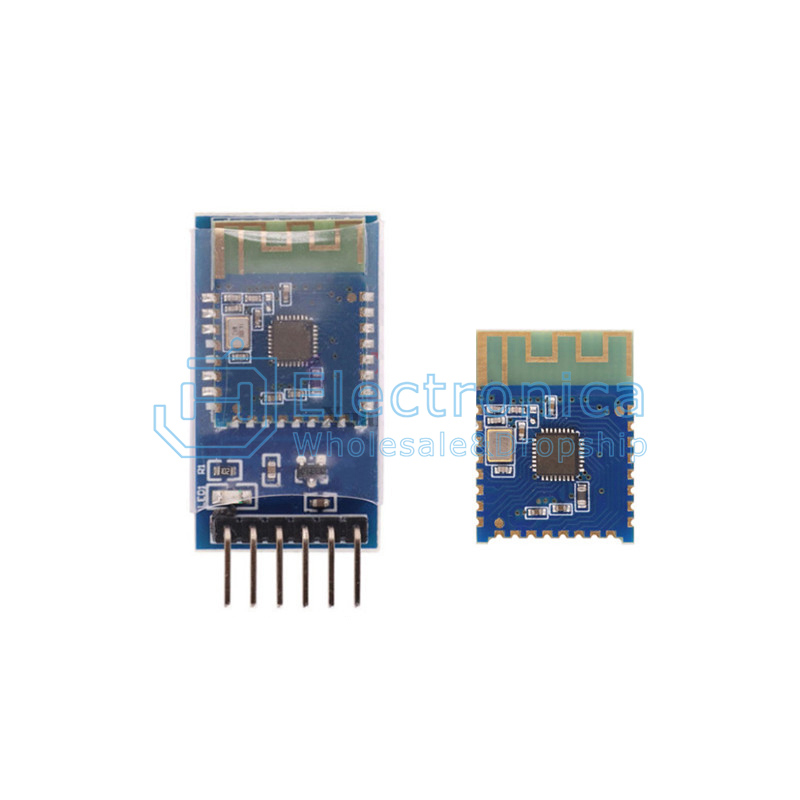

JDY-23 Bluetooth 5.0 Module

SKU : YXC958 Brand :

Price : $ 0.75~1.02

100 +: $0.75~1.02500 +: $0.75~1.021000 +: $0.75~1.02

style：

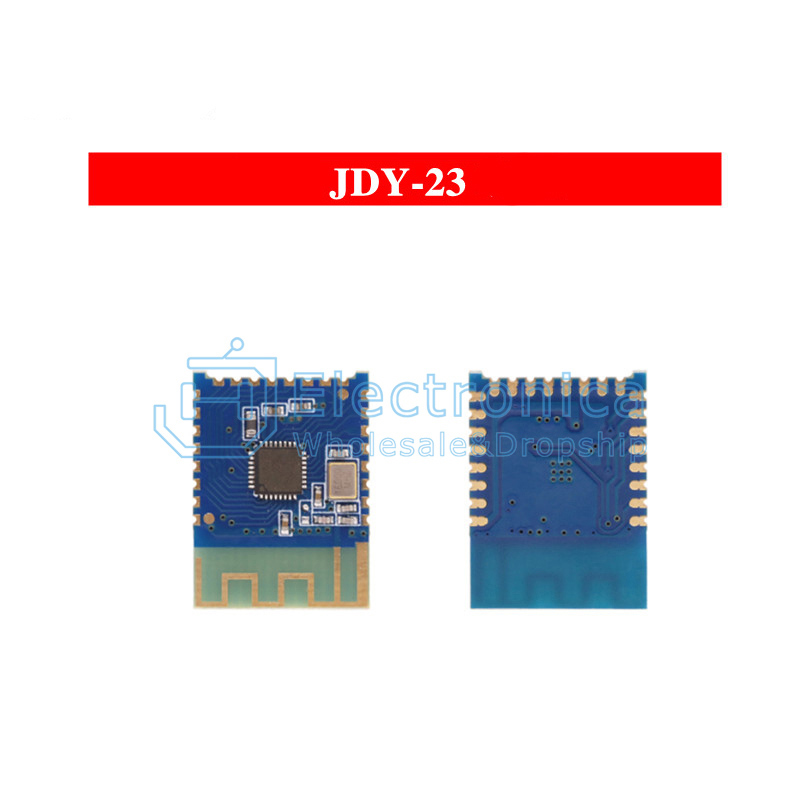

Without base plate

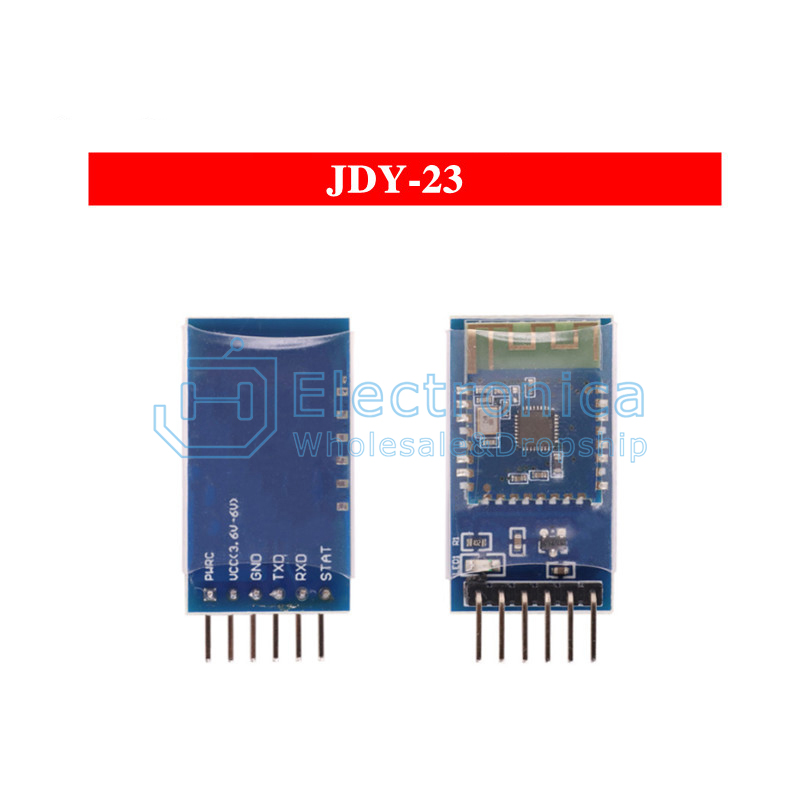

With base plate

Quantity :

- +

ADD TO CART
