Description

Model：JDY-33
Compatible with HC-05/06
Working frequency： 2.4GHZ
Communication Interface ：UART
Operating Voltage:1.8-3.6V(Recommended 3.3V)
Operating temperature: -40℃ - 80℃
Antenna: Built-in PCB antenna
Transmission distance: 30Meter
From the main support :Slave

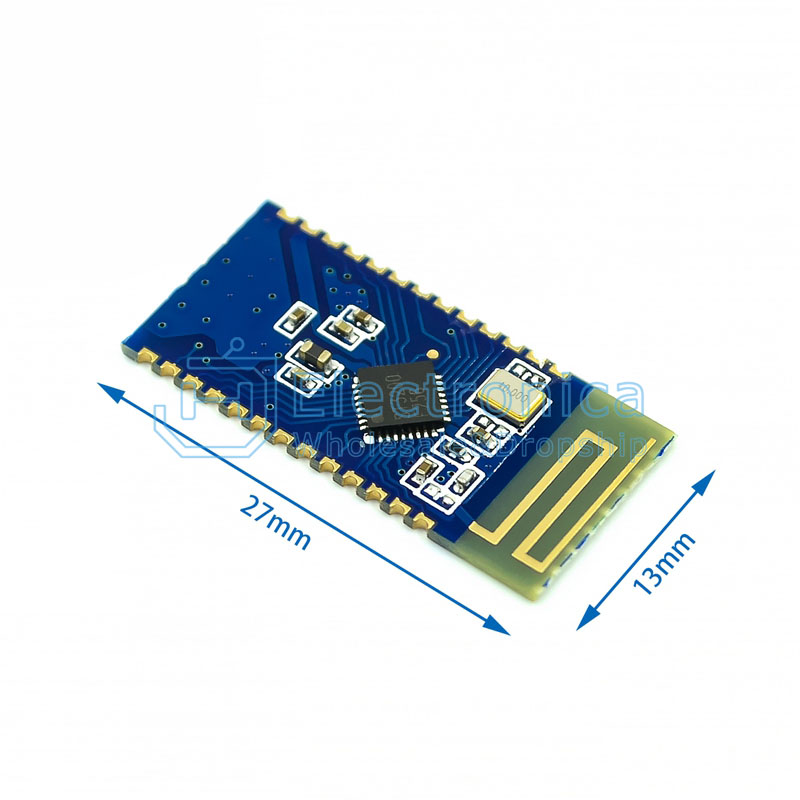

Module size: 26.7 * 13 * 1.7 mm(L*W*H)
Bluetooth version: Bluetooth 3.0 SPP + BLE4.2
SMT Welding temperature: <260℃
Working current: 6.5mA
Deep Sleep Current: <10ua
Transmission power: 6db(maximum)
Reception sensitivity: -96dbm
SPP Maximum Throughput:16K bytes / s (android, Windows)
Connect with android, the computer Bluetooth, the communication speed of 4k byte per second can be achieved
BLE: 4K bytes / s (android, IOS)
BLE connect with the Android or IOS, the communication speed is 4K per second(support 38400 baud continuous send and receive data, the baud rate is higher than 38 400 can not continuously transmit)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

JDY-33 SPP SPP-C Bluetooth 3.0 Module

SKU : YXA607 Brand : JH Stock

Price : $ 0.72~0.98

100 +: $0.72~0.98500 +: $0.72~0.981000 +: $0.72~0.98

Style：

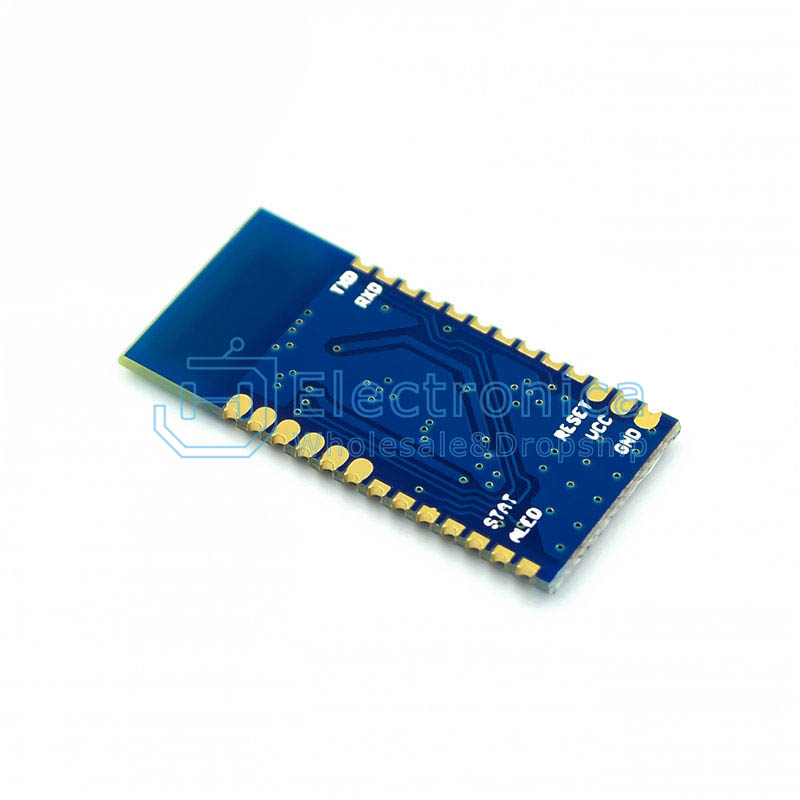

SMD

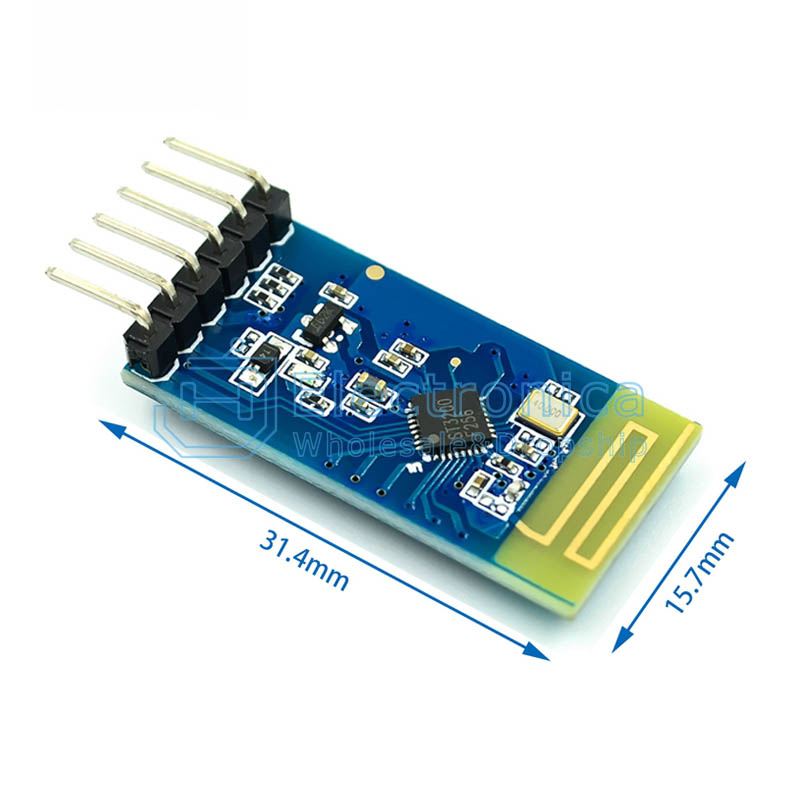

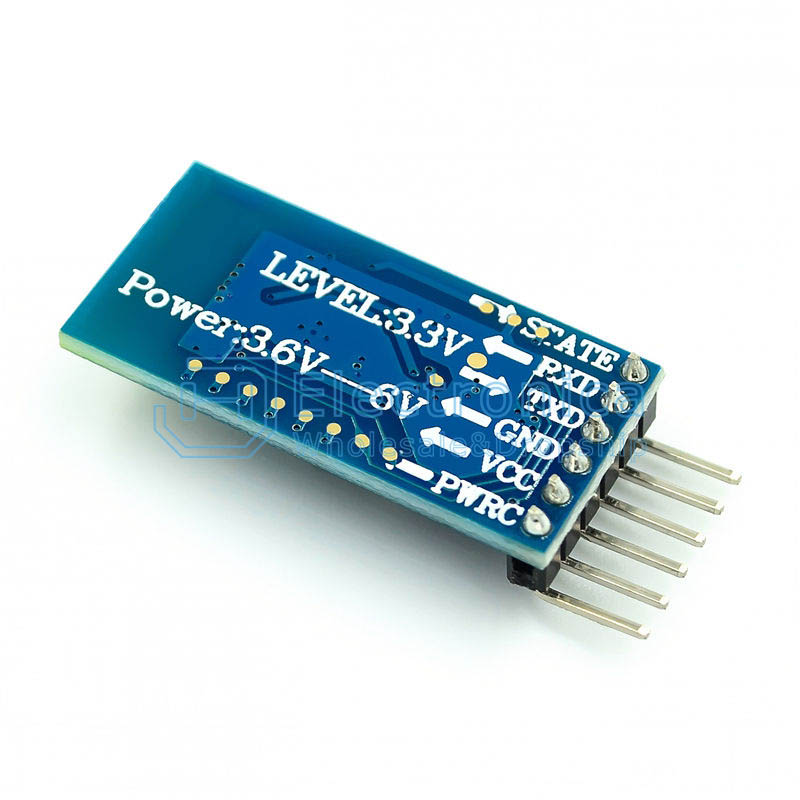

With pins
