Description

TXD: Serial transmission 3.3V TTL level
RXD: Serial receiver 3.3V TTL level
CTS: Series flow control, is not supported!
RTS: Series flow control, is not supported!
DC: simulation, burn clock pin.
DD: simulation, data-recognizing results.
RST: Reset Pin, require low level is no less than 5ms to reset.
VCC: Power pin, require DC 3.3V supply current is not less than 100mA
Operating voltage range: 2.0V~3.6V
GND: module in common
LED: Output pin, high level output.
Before connecting:
When the host does not record the slave address, it will be on for 100ms per second;
When the host records the slave address, it lights up for 900ms per second;
The slave is on for 1 second every 2 seconds.
After connection: LED is always on.
Key: Input pin, internal pull down.
This pin is connected to a high level for the master to clear the recorded slave address.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

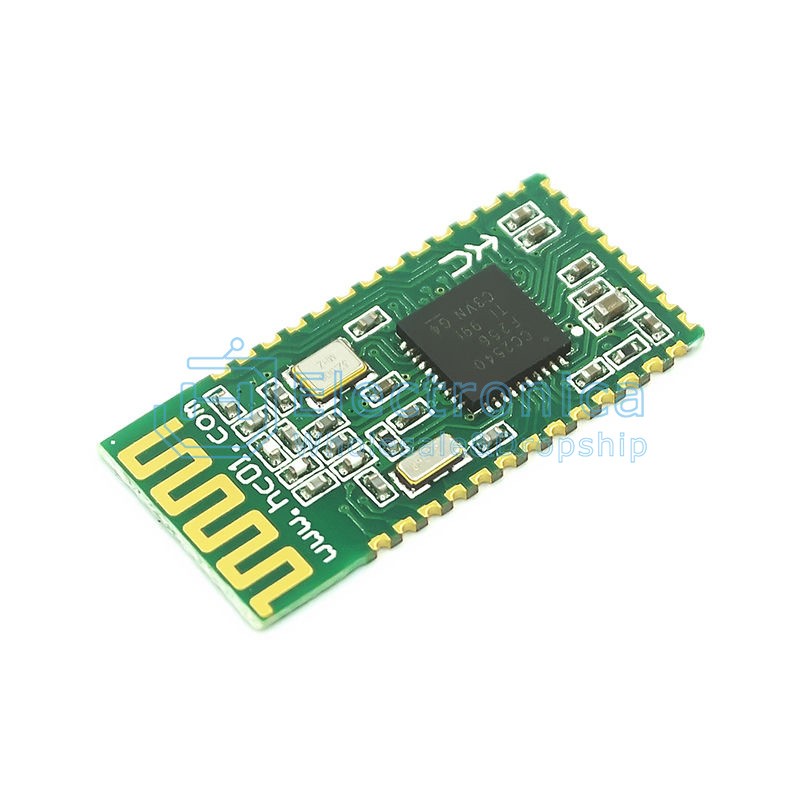

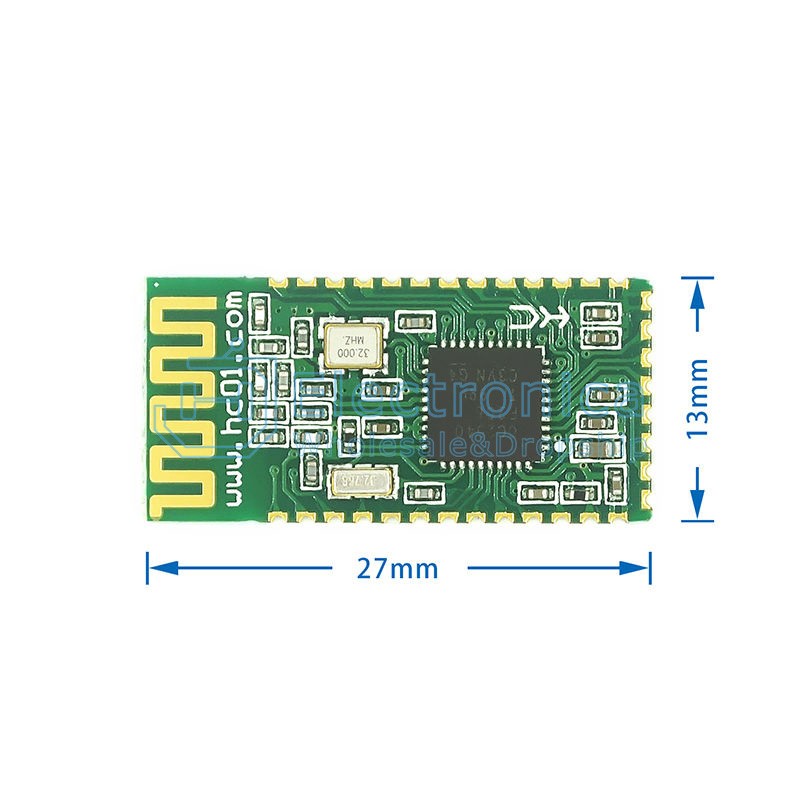

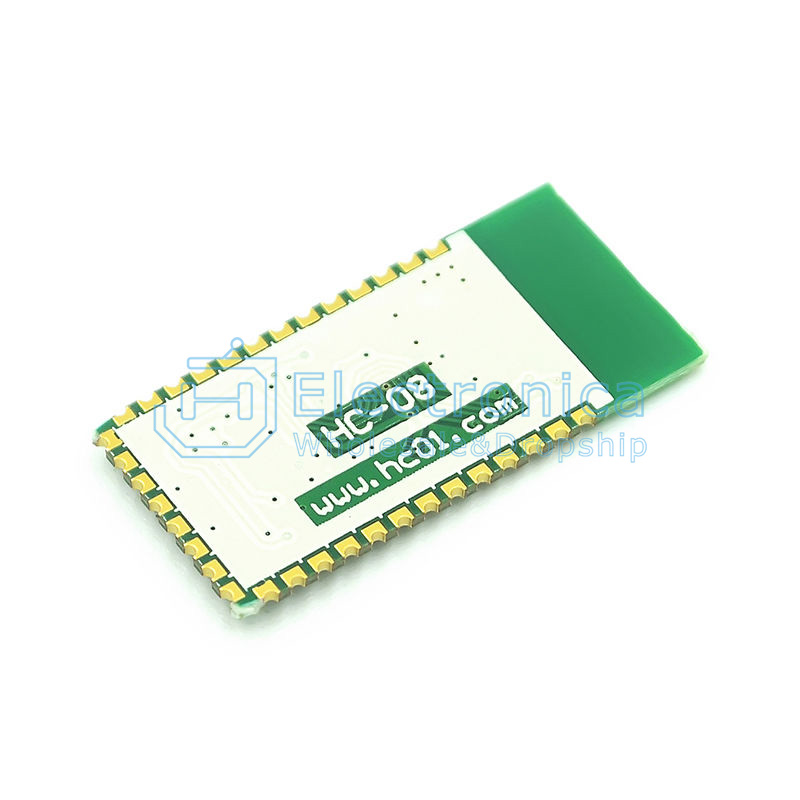

HC-08 Bluetooth 4.0 Serial Port Module

SKU : YXK377 Brand : JH Stock

Price : $ 1.65

100 +: $1.65500 +: $1.651000 +: $1.65
