Description

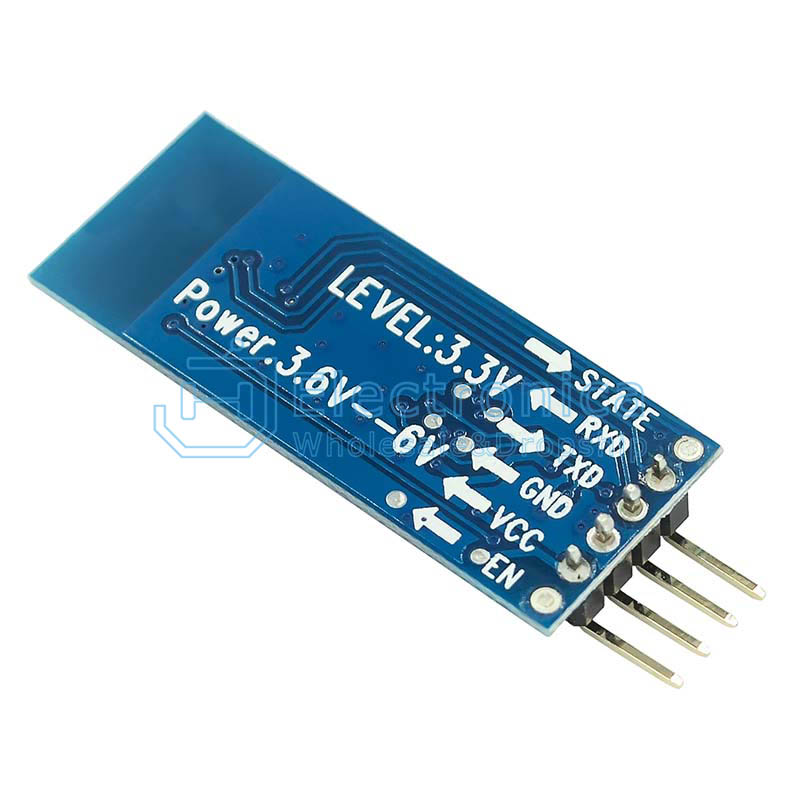

1. The core module uses hc-06 slave module to lead out interfaces, including VCC, GND, TXD, RXD, and reserved LED status output pin. The single chip microcomputer can judge whether Bluetooth has been connected through the pin status, and the key pin is invalid for the slave
2. The LED indicates the Bluetooth connection status, flashing indicates that there is no Bluetooth connection, and constant light indicates that Bluetooth is connected and the port is opened
3. The backplane is 3.3V LDO, the input voltage is 3.6 ~ 6V, the current is about 30mA when not paired, about 10mA after pairing, and the input voltage shall not exceed 7V!
4. The interface level is 3.3V, which can be directly connected to all kinds of single chip microcomputer (51, AVR, PIC, arm, MSP430, etc.), and 5V single chip microcomputer can also be directly connected without MAX232

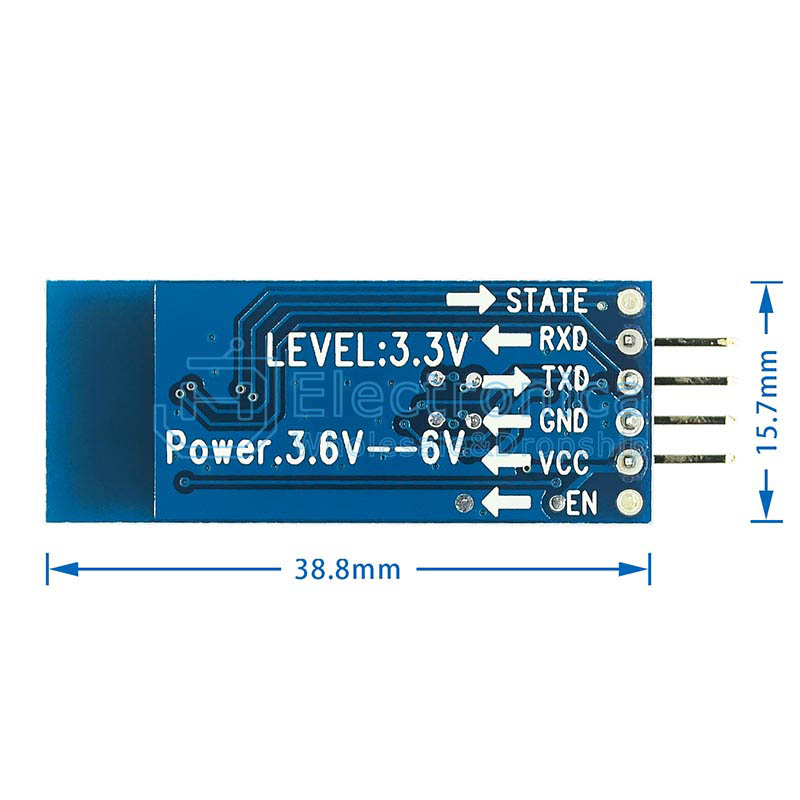

Size:3.57*1.52cm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

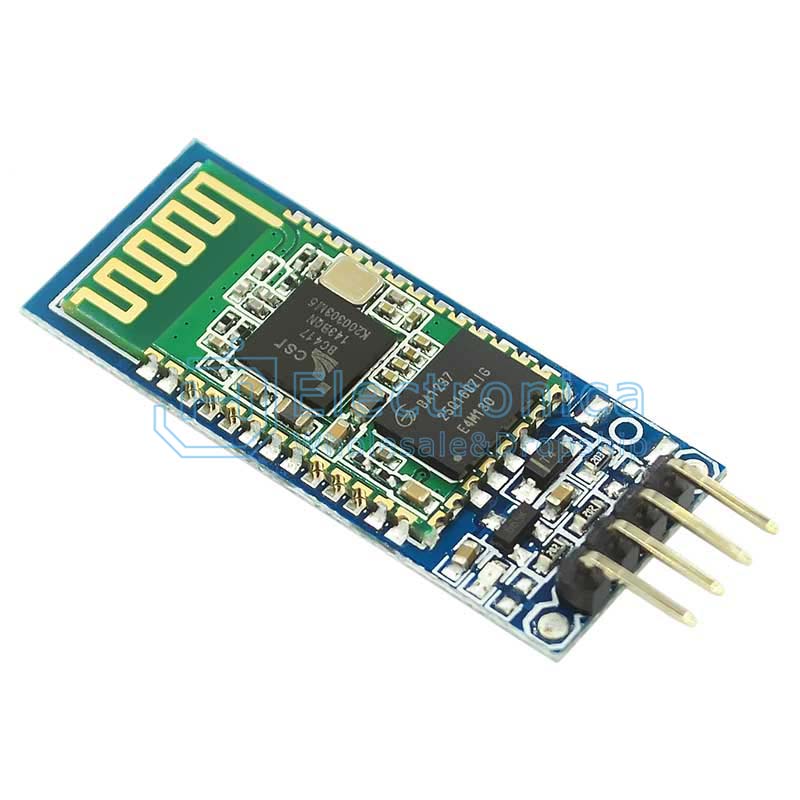

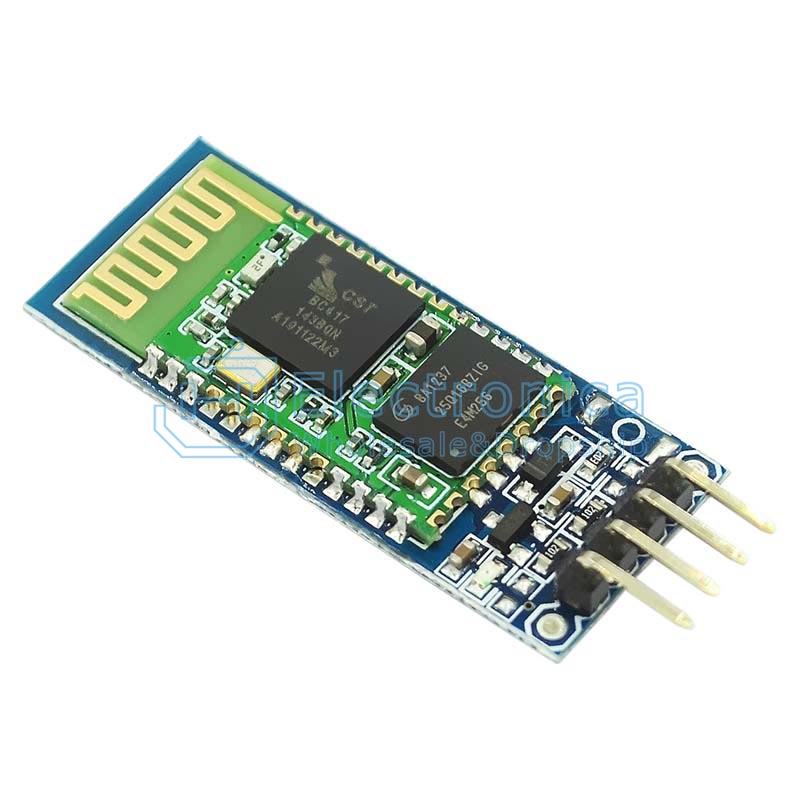

HC-06 Bluetooth Wireless Serial Communication Module

SKU : YXA174 Brand : JH Stock

Price : $ 2.05~2.98

100 +: $2.05~2.98500 +: $2.05~2.981000 +: $2.05~2.98

Style：

HC-06 offical version
HC-06 Compatible version
