Description

Working frequency band:2.4G
Transmission power:0db(Max)
Communication interface:UART OR IIC
Working voltage:1.8V-3.6V
Working temperature:-40~80℃
Antenna:Built-in PCB antenna
Introducing sensitivity:-97dbm
Transmission distance:60m
Module size:19.6mm*14.94mm*2.6mm
Bluetooth version:BLE4.2(compatible with BLE4.0,BLE4.1)
Speed:115200bps/s
Wake-up state current:4mA (with broadcast)
Light sleep state current:<300uA (no broadcast)
Deep sleep current:1.8uA (no broadcast)
STM welding temperature:<300℃

Product Introduction
The JDY-16 transparent transmission module is based on the Bluetooth 4.2 protocol standard, with a working frequency range of 2.4GHz and a modulation method of GFSK. The maximum transmission power is 0db and the maximum transmission distance is 60 meters. It is designed with imported original chips and supports users to modify device names, service UUID, transmission power, pairing passwords and other instructions through AT commands, making it convenient, fast, and flexible to use
The JDY-16 Bluetooth module can achieve data transmission between modules and mobile phones or between modules. UART or IIC communication methods can be selected through I0, and BLE Bluetooth can be quickly used for product applications through simple configuration

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

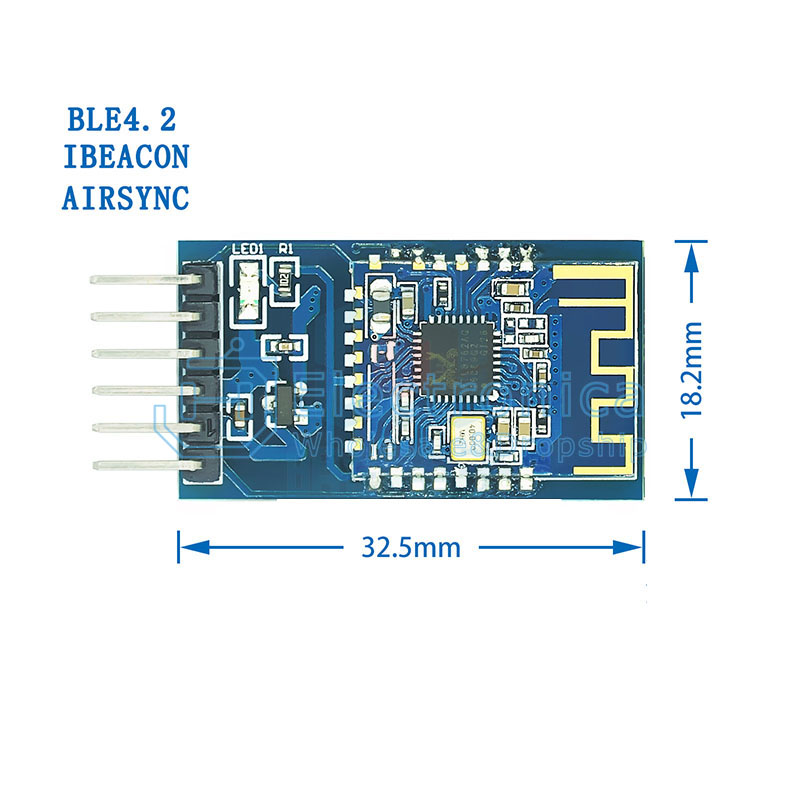

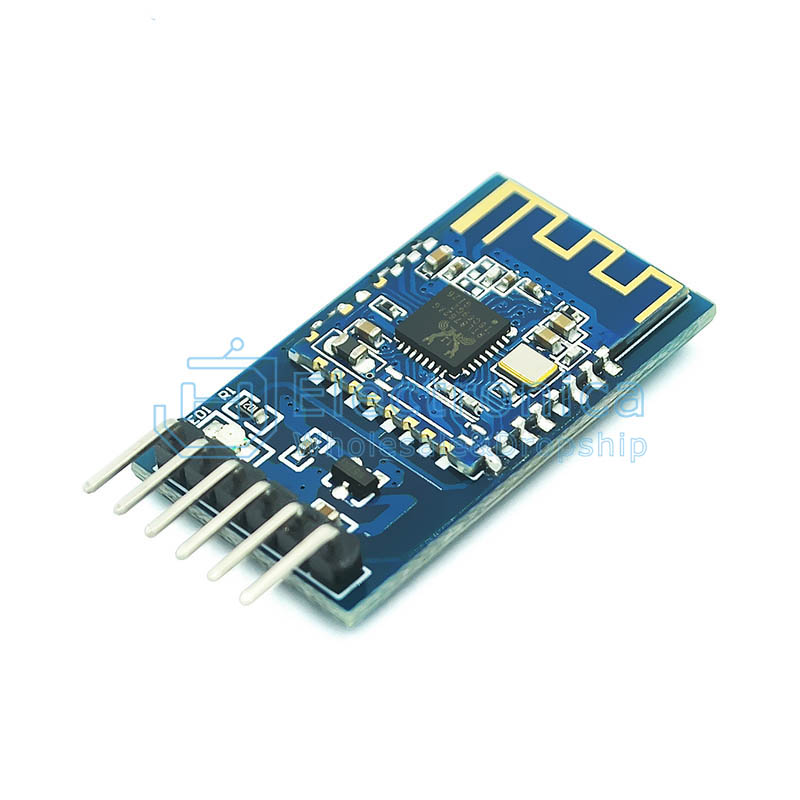

JDY-16 Bluetooth 4.2 BLE Module

SKU : YXC960 Brand :

Price : $ 1.88

100 +: $1.88500 +: $1.881000 +: $1.88
