Description

1. Power anti-reverse , reverse power does not work
2. Input voltage 3.6 ~ 6V, must not exceed 7V
3. Common variety of models can be installed Bluetooth module , such as HC05, HC06, HC
07, BC04 , or other compatible Bluetooth module pin definitions
4. The pin-outs include TXD, RXD, STATE ( if any ), KEY ( if any ) common pin , easy to use

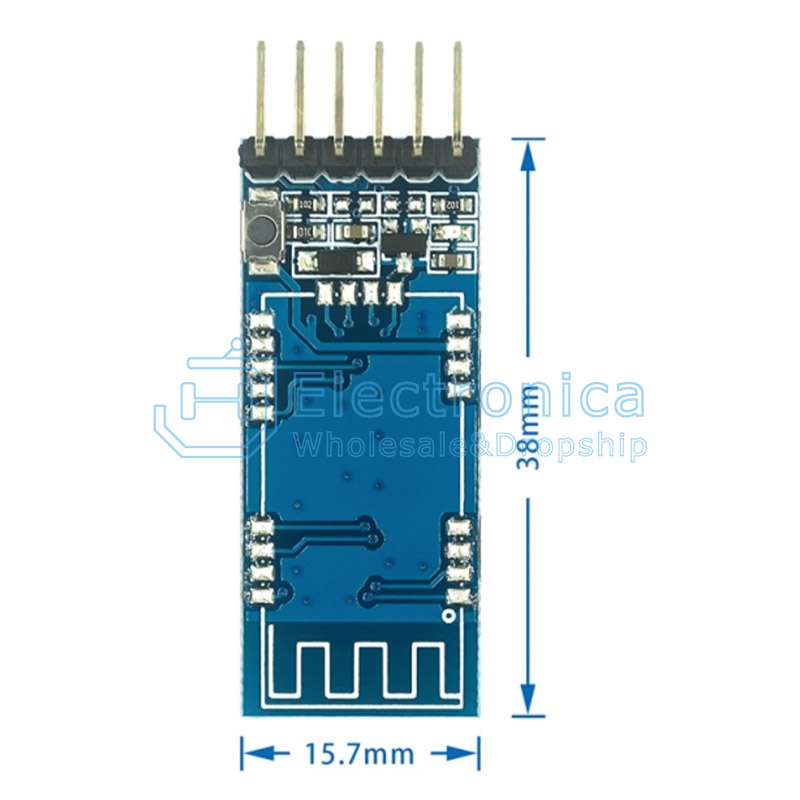

5,Size : 37.3 * 15.5(mm)

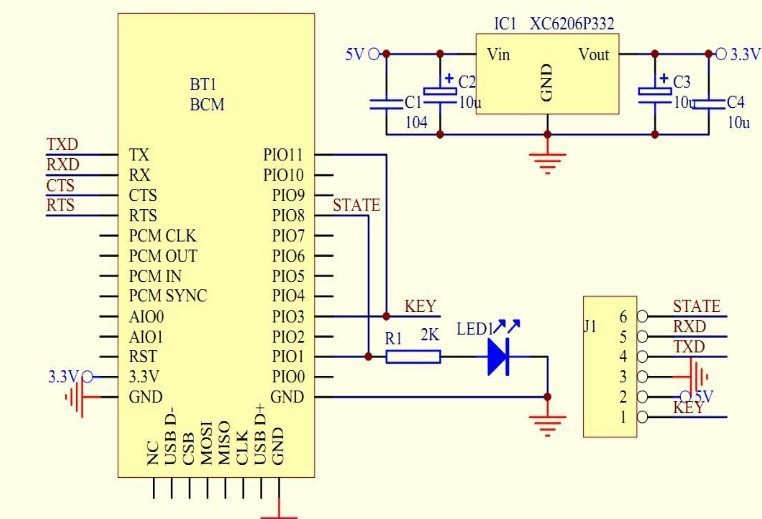

6. Lead out 6 feet:VCC/GND/TXD/RXD/STATE/EN
7. Set the EN enable pin,when suspended or connected to high level,the module works normally;Turn off the module power supply when grounded(current <20uA after shutdown)to reduce power consumption

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

Bluetooth Serial Transceiver Module

SKU : YXA019 Brand : JH Stock

Price : $ 0.25

100 +: $0.25500 +: $0.251000 +: $0.25
