Description

Product Parameters

Module model:BW16
Packaging:SMD-16

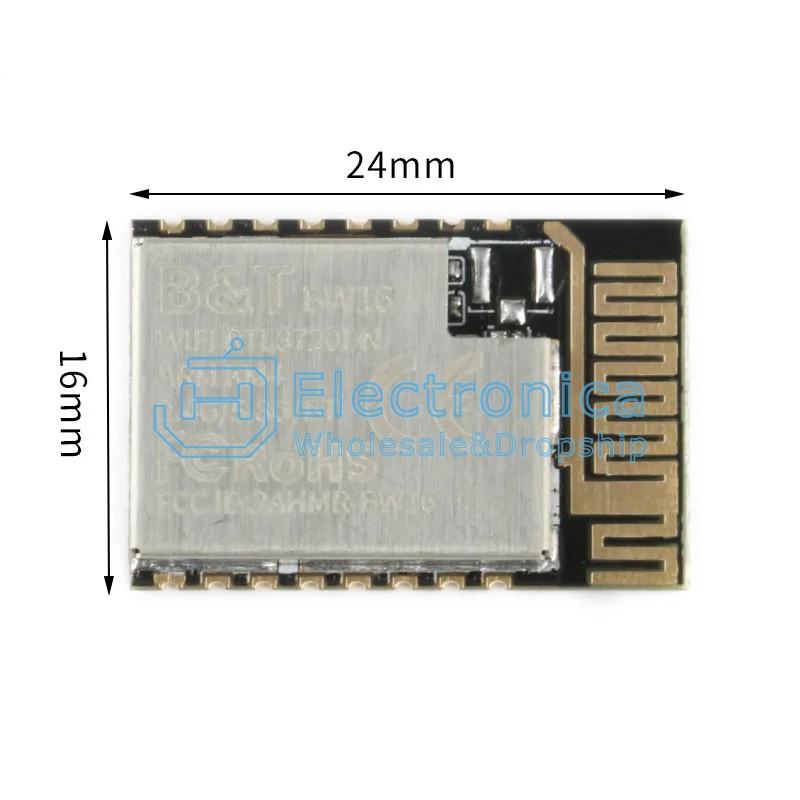

Size(mm):24*16*3(±0.2)mm
Antenna form:onboard PCB antenna or IPEX antenna
Spectrum range:2400-2483.5MHz or 5180-5825MHz
Bluetooth:BT5.0
Bluetooth frequency range:2.402GHz -2.480GHz Support interface: UART/GPIO/ADC/PWM/IIC/SPI/SWD
Supply voltage:3.0V~3.6V
Typical value:3.3V
Supply current:>450mA
Working temperature:-20~70℃
Storage environment:-40~125℃90% RH
Certification:RoHS,FCC,CE,SRRC
Product Introduction:
BW16 is a dual band Wi Fi+Bluetooth SoC module developed based on RTL8720DN. BW16 supports dual band (2.4GHz or 5GHz) WLAN and low-power Bluetooth 5.0; It integrates ARM V8 (compatible with Cortex-M4F) high-performance MCU, ARMV8M (compatible with Cortex-M0) low-power MCU, WLAN (802.11a/b/g/n), MAC, Bluetooth baseband, and RF baseband, and provides a set of configurable GPIO ports for control of different peripheral devices
The BW16 integrates internal memory and supports simple application development to achieve complete Wi Fi and BT50 protocol functionality. Can be applied in industrial manufacturing, smart homes, smart farm hotel solutions, and other fields

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

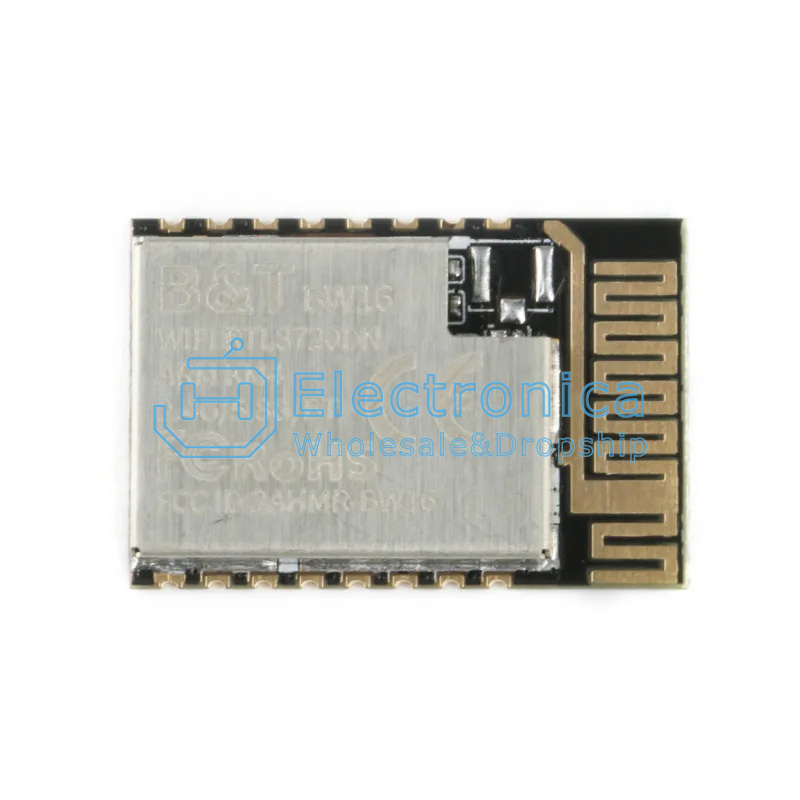

RTL8720DN BW16 Bluetooth Module

SKU : YXC1348 Brand :

Price : $ 3.53

100 +: $3.53500 +: $3.531000 +: $3.53

Quantity :

- +

ADD TO CART
