Description

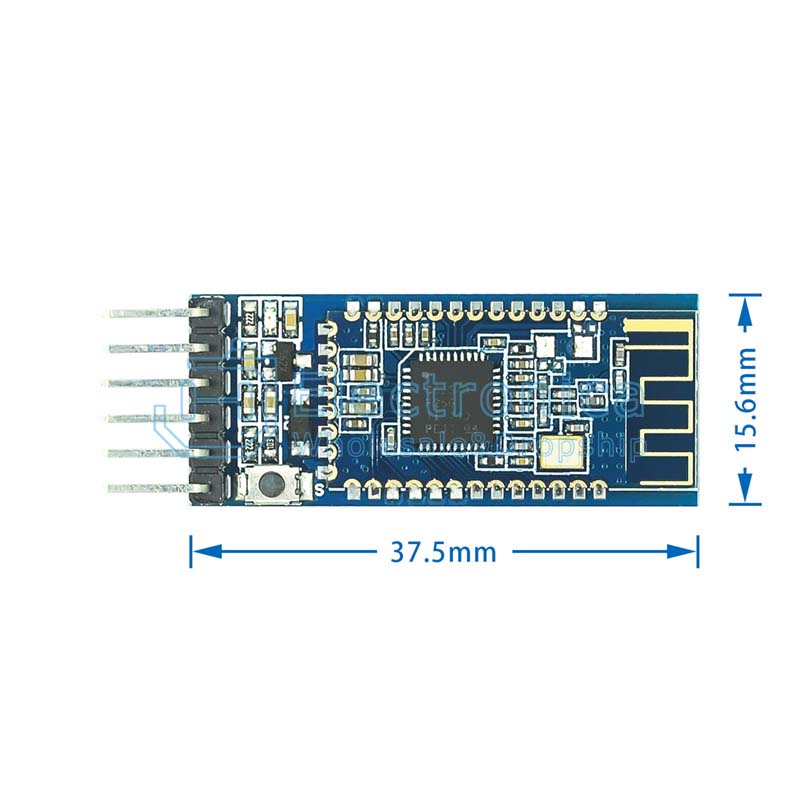

Size: 37.5mm x 15.6mm
Color: Blue
Compatible: HM-10 module
Power supply: 5V power supply or 3.3V power supply.

Specifications:
- Input voltage: 3.3V/5V
- If a 5.0V MCU is used to communicate with the bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V.
- If a 3.3V MCU is used to communicate with the bluetooth module, the 3.3V power port is powered, and the RX TX logic level is 3.3V.

Pin:
RX, the serial port receiving end of the bluetooth module is connected to the TXD of the MCU.
TX, the serial port sender of the bluetooth module is connected to the RXD of the MCU.
GND, ground terminal negative
3.3V, 3.3V power supply at the power supply
5V, power supply 5V power supply

If a 5.0V MCU is used to communicate with the Bluetooth module,the 5.0V power port is powered,and the RX TX logic level is 5V
If a 3.3V MCU is used to communicate with the Bluetooth module,the 3.3V power port is powered,and the RX TX logic level is 3.3V
RX,the Bluetooth module serial port receiver is connected to the TXD of the MCU
TX,the Bluetooth module serial port transmitter is connected to the RXD of the MCU
GND,the negative terminal of the ground power supply
3.3V,3.3V power supply on the power side
5V,5V power supply at the power end

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

BT-09 BLE Bluetooth 4.0 Serial Port Module

SKU : YXA018 Brand : JH Stock

Price : $ 1.64
