Description

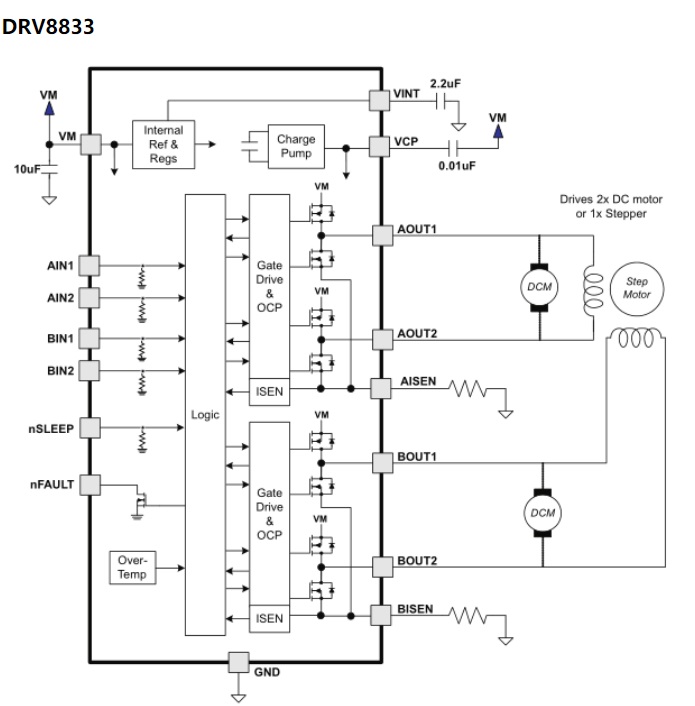

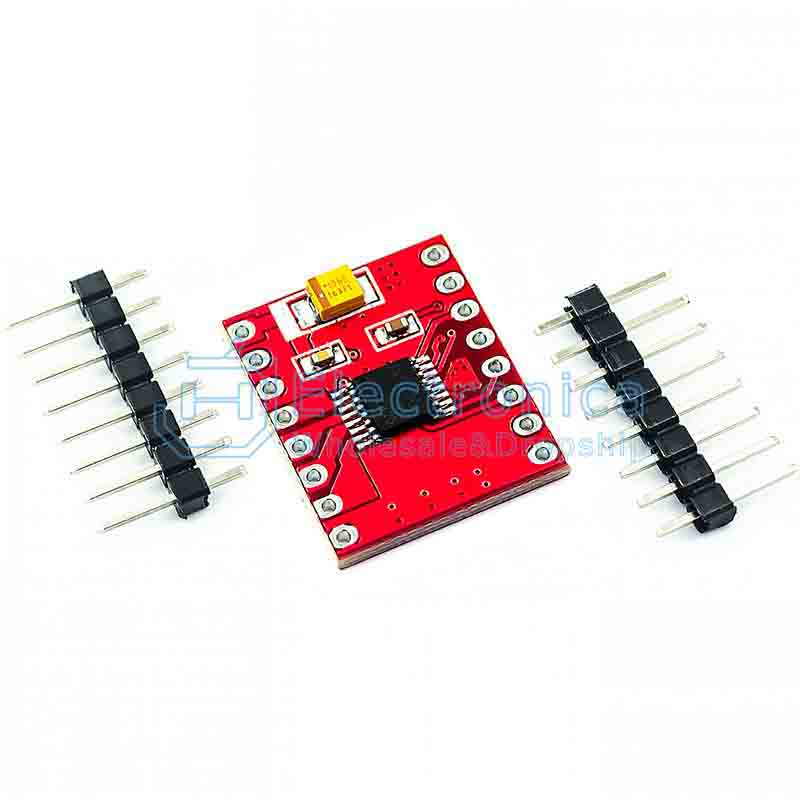

DRV8833:

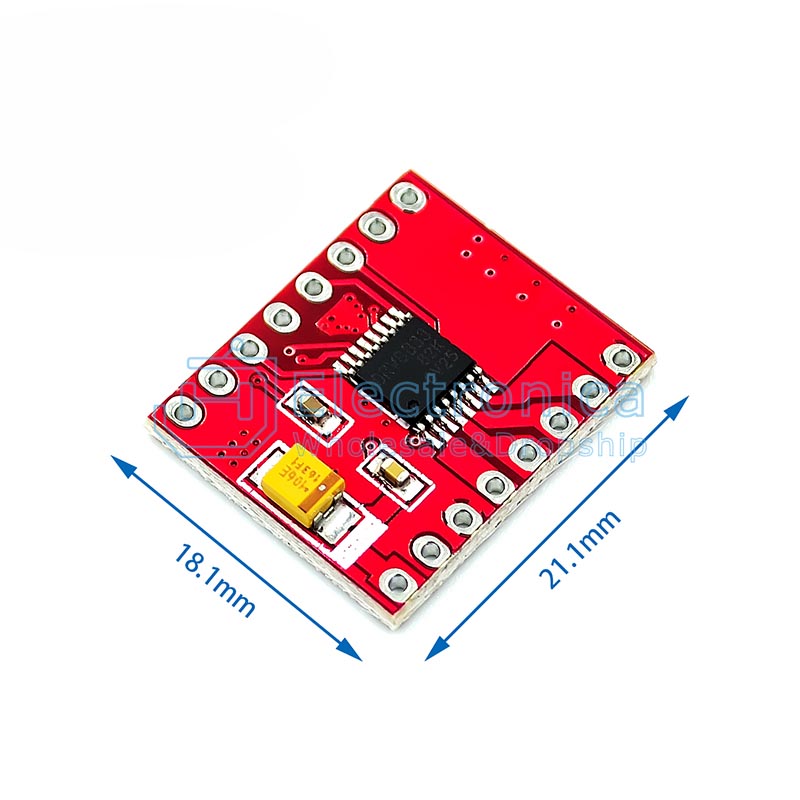

Size: 18.1* 21.1mm
Input voltage: 2.7 V – 10.8 V
Single H-bridge output current: 1.5A, which can drive 2 DC geared motors.
Use: It can drive DC motors below 1.5A and 4-wire stepper motors.

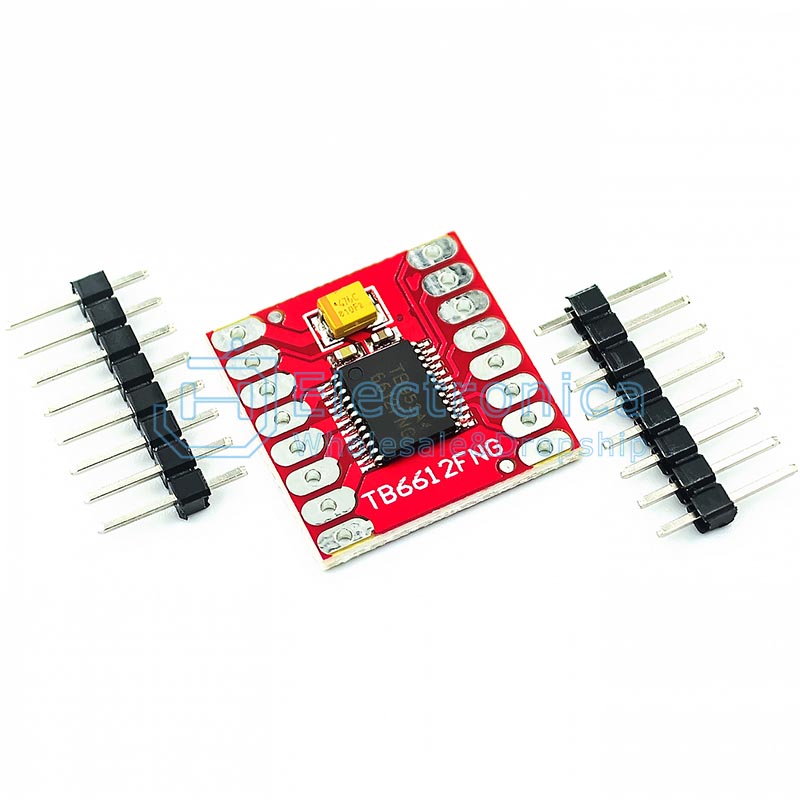

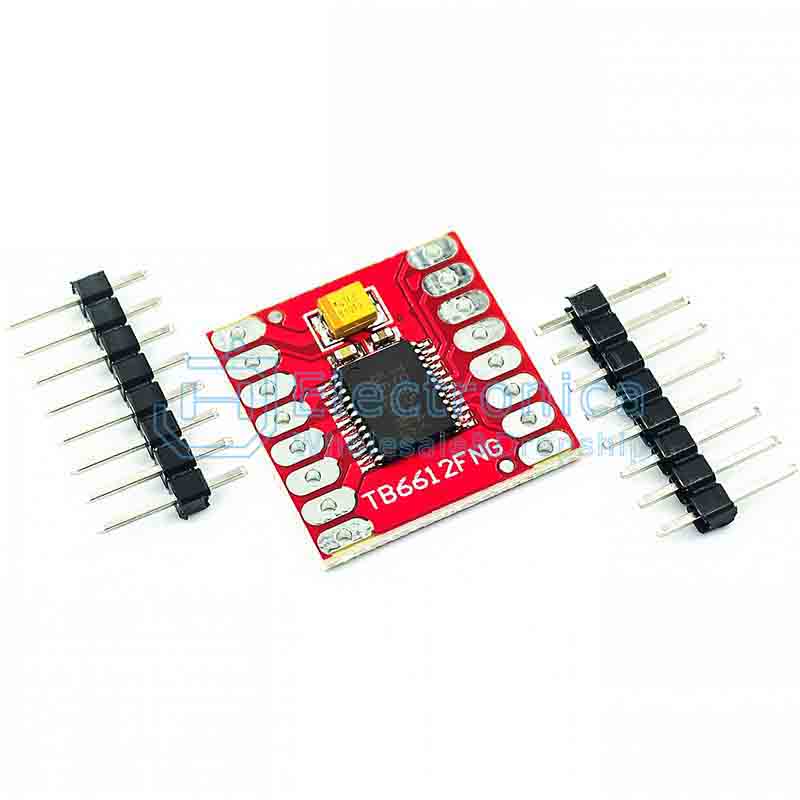

TB6612FNG:
Size: 20.5* 20.4mm
Power supply voltage: VM=15V max, VCC=2.7-5.5V
Output current: Iout=1.2A(average) / 3.2A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes
Built-in thermal shutdown circuit and low voltage detecting circuit
All pins of the TB6612FNG broken out to 0.1" spaced pins

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DRV8833 TB6612FNG Step motor Driver Module

SKU : YXB301 Brand : JH Stock

Price : $ 0.37~1.02

100 +: $0.37~1.02500 +: $0.37~1.021000 +: $0.37~1.02

Style：

DRV8833
TB6612FNG (not welded)
TB6612FNG (welded)
