Description

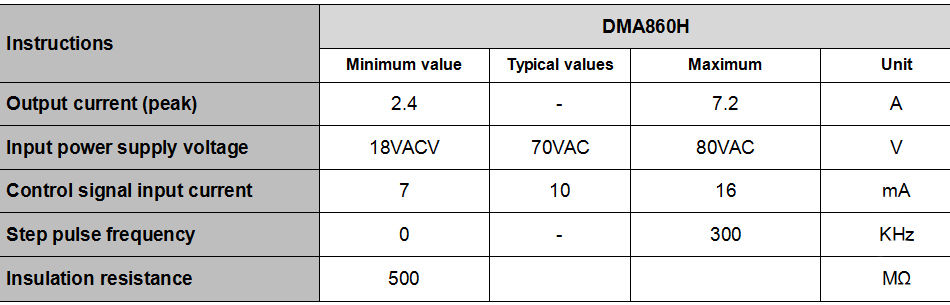

1) Can drive 4,6,8 line two-phase stepper motor

2) Voltage input range: 18-80Vac
3) Current maximum: 7.2A, resolution: 0.1A
4) Subdivision range: 400~51200
5) Signal input: differential / single-ended, pulse / direction or double pulse
6) Precision current control greatly reduces motor heating
7) The current is automatically halved at rest
8) Impulse response frequency: 200KHZ
9) Built-in micro-segment
10) Power-on parameter auto-tuning function
11) Optically isolated signal input, strong anti-interference ability
12) With overvoltage, overcurrent and other protection functions

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DMA860H 2-phase Digital Stepper Motor Driver

SKU : YXM003 Brand : JH Sourcing

Price : $ 29.13

100 +: $29.13500 +: $29.131000 +: $29.13

Quantity :

- +

ADD TO CART
