Description

Average current control, two-phase sinusoidal current drive output.
DC 12 ~ 48V power supply, the internal integration of 12V and 5V regulator.
Optically isolated signal input / output.
Overvoltage, undervoltage, overcurrent, and white short-circuit protection.
Widely used in the engraving machine, CNC machine tools, packaging machinery and other high resolution requirements on the device.
Specification:
Input Voltage: DC 12 ~ 48V input
Input Current: 1 to 5 amps, select the drive a stepper motor.
Output Current: 0.2A ~ 5A
Temperature Operating Temperature: -10 to 45 c
Storage temperature: -40 c to 70 c
Material: ABS & Metal
Item size: 10.4 8.6 3.3cm / 4.09 3.39 1.3in(L W H)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

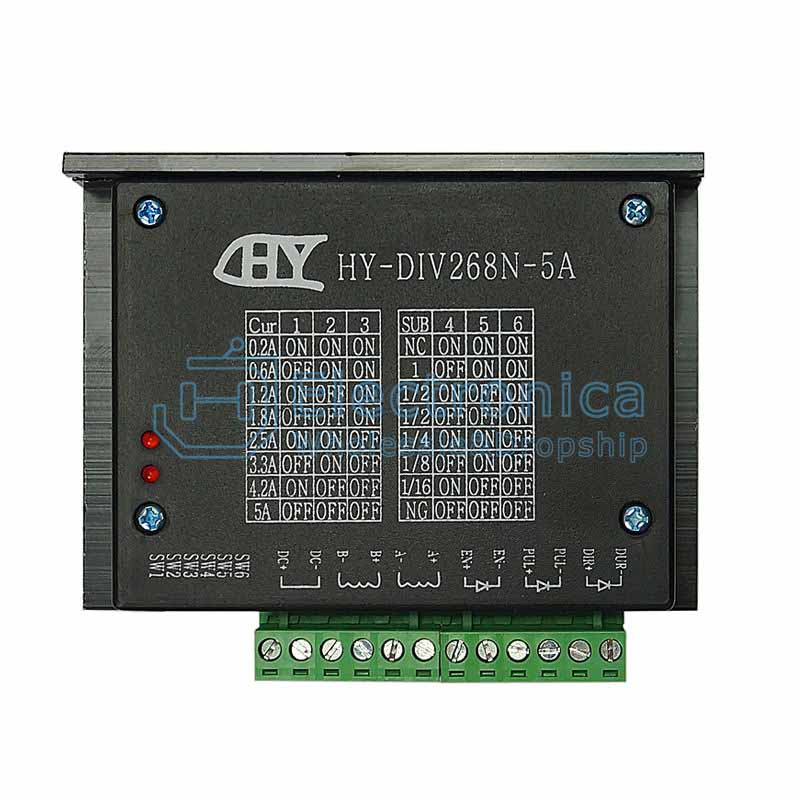

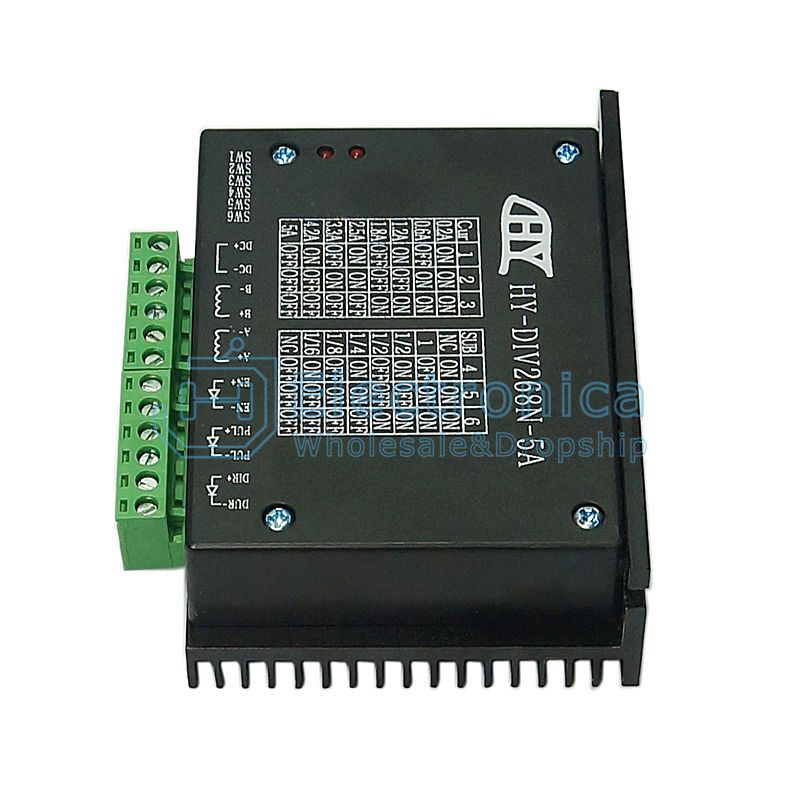

HY-DIV268N-5A Two-Phase Hybrid Stepper Motor Driver

SKU : YXM004 Brand : JH Sourcing

Price : $ 7.32

100 +: $7.32500 +: $7.321000 +: $7.32
