Description

Dimension of drive plate:60*44*16mm
Voltage Range:DC5V~12V
Rated Current:≤800mA
This drive control board has four working modes to choose from: normal mode 1, normal mode 2, jog mode, and automatic round-trip mode
1. Normal mode 1: S1 start stop button, S2 forward reverse button, W2 potentiometer speed regulation. If limit reversal is required, two limit switches can be externally connected to the P3 pin, and the motor movement shaft is equipped with contact pads, so that the motor will move back and forth between the two limit switches
2. Normal mode 2: S1 forward start button, S2 reverse start button, press any key to stop. W2 potentiometer speed regulation. If a limit stop is required, two limit switches can be connected externally to the P3 pin. This way, the motor will stop moving when it touches the limit switch, and the motor will reverse when the opposite button is pressed
3. Jog mode: S1 press forward to rotate, release to stop, S2 press reverse to rotate, release to stop, and W2 potentiometer to adjust speed. If limit stop is required, an upper limit switch can be connected to P3
4. Automatic round-trip mode: S1 starts and stops, S2 rotates forward and backward, W2 potentiometer adjusts speed, and W1 potentiometer adjusts the number of automatic round-trip steps. After starting, the motor automatically runs back and forth within the steps regulated by W1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

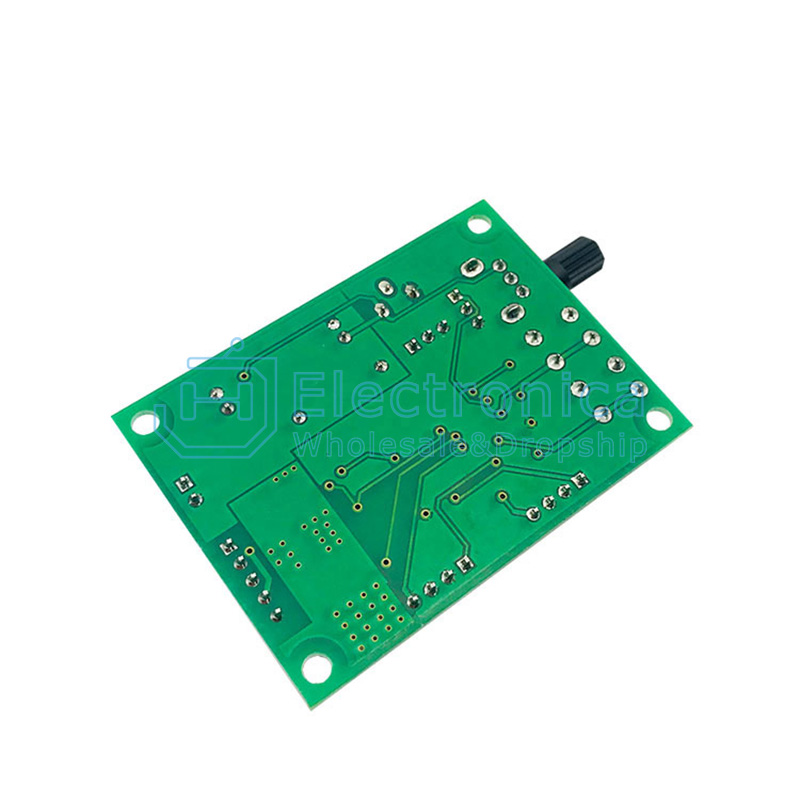

2-Phase 4-Wire/4-Phase 5-Wire Multifunctional Micro Stepper Motor Drive Board

SKU : YXS273 Brand : JH Sourcing

Price : $ 2.80

100 +: $2.80500 +: $2.801000 +: $2.80

Quantity :

- +

ADD TO CART
