Description

Module Parameters:
1. Dual H-bridge motor drive, capable of simultaneously driving two DC motors or one 4-wire two-phase stepper motor
2. Supply voltage:3V-14V
3. The input voltage at the signal end is 2.2-6V, supporting 3.3V and TTL levels
4. Single circuit working current 5A, peak current up to 9A, low standby current (less than 10uA)
5. Installation hole diameter:2 mm
6. Weight:14g
Module Highlights:
1. It can independently control two motors, each with an output current of 5A, a peak of 9A, and a standby current of only 10uA
2. Wide power supply range 3-14V, signal power supply range 2.2-6V, 3.3V and 5V levels can meet the requirements
3. The board provides a 3.3V 100ma power supply to meet the power consumption of your control system. It can also be paired with a 433M wireless module for remote control of motors or other loads

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

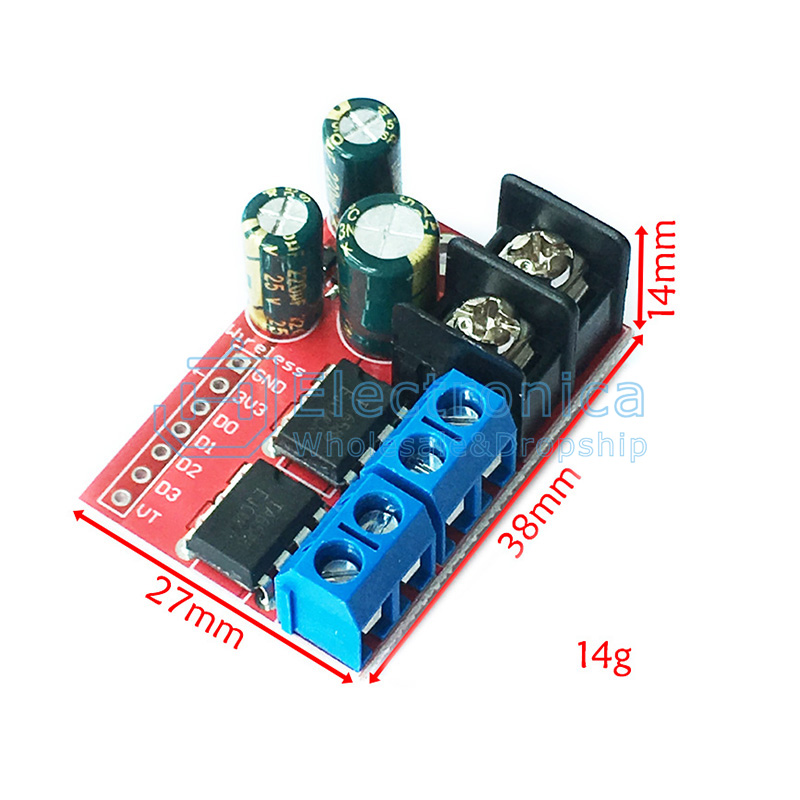

5A Dual Circuit DC Motor Drive Module

SKU : YXS1645 Brand :

Price : $ 1.21

100 +: $1.21500 +: $1.211000 +: $1.21
