Description

Input voltage: dc10-60v
Input current: 10-30V, maximum current 30A
31-60v, maximum current 25A
Static working current: 15mA
Constant current range: 0.8-20a (+ / - 0.3A)
Input anti reverse connection: Yes (150A power MOS anti reverse)
Low battery protection: with (8-50v adjustable) self recovery type
Working temperature: - 40 ~ + 85 ℃
Working frequency: 150kHz
Conversion efficiency: 92% - 97%

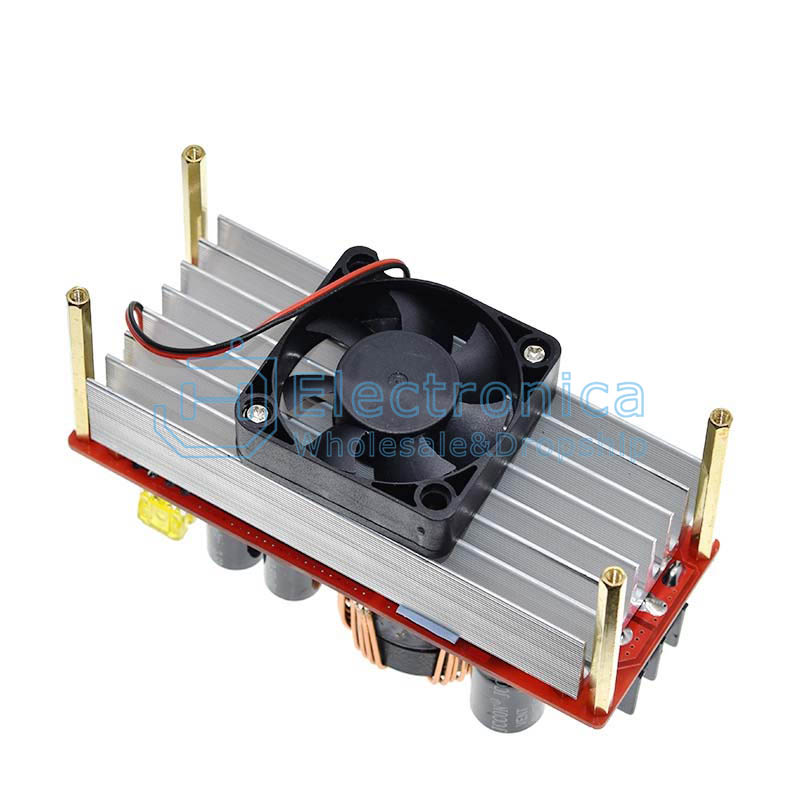

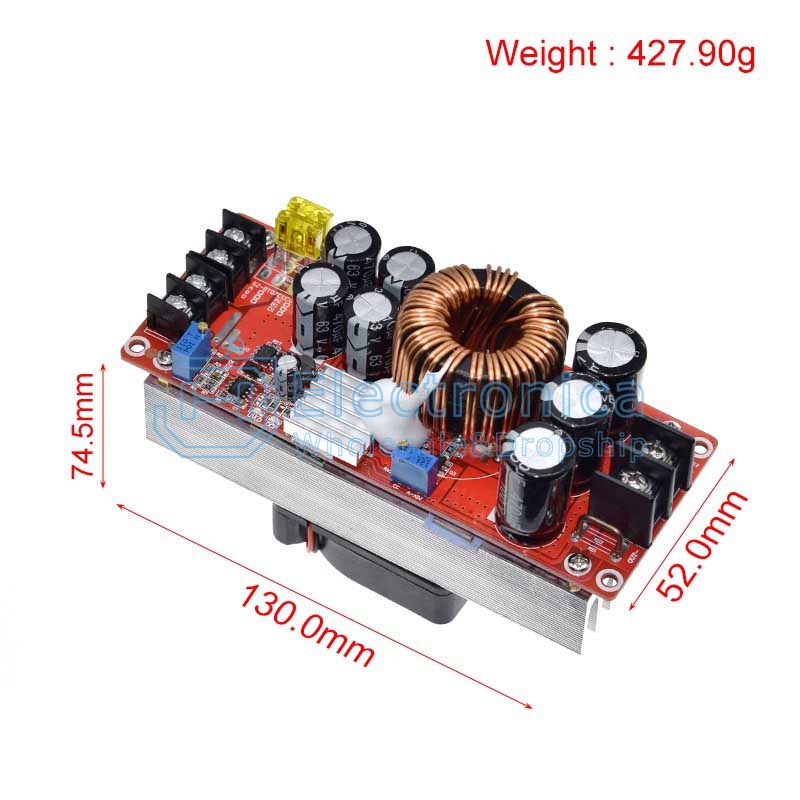

Size:130*52*84MM（L*W*H) (including copper column and fan)
130* 52*67mm（L*W*H)(excluding copper column and fan)
Input overcurrent protection:Yes(input exceeds 35A,automatic protection,power supply does not boost)
Short circuit protection:Yes(input 30A fuse) Double short circuit protection,safer to use
Input reverse polarity protection:Yes(150A power MOS tube anti-reverse.Can be reversed for a long time)
Installation:4pcs 3mm copper pillars
Wiring method:terminal block(please use high-current pure copper wire)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

30A High-power 1500W Booster Module DC 12V24V36V to 48V60V72V Power Supply Charging Module

SKU : YXB427 Brand : JH Sourcing

Price : $ 10.60

100 +: $10.60500 +: $10.601000 +: $10.60
