Description

1. 8-16v input (for triple lithium battery and 12V battery application)
2. 10-32v input (for wide input voltage range applications)
Input current: 5A (max)
Static working current: 15mA (when 12V rises to 50V, the higher the output voltage, the higher the static current will be)
Output voltage: 45-390v, continuously adjustable.
Output current: 0.2A max (related to input and output voltage difference, the higher the output voltage, the smaller the output current)
Output power: 40W (peak 70W)
Working temperature: - 40 ~ + 85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 75khz

Short circuit protection:Yes.(Input 10A fuse,please do not directly short-circuit the arc at the output!)Direct short-circuit arc pulling may damage the rectifier device,if you want to short-circuit arc pull,please connect the series power resistor current limit)
Overcurrent protection:Yes.(Input current exceeds 4.5A,output voltage is reduced)
Overvoltage protection:Yes.(Output voltage exceeds 410V,output voltage is reduced)
Input reverse protection:Yes(non-self-restoring,connect the reverse firing fuse,try not to connect the reverse.）
Installation:4pcs 3mm screws
Wiring method:terminal solder-free output(with shell is soldering output)
Module size:length 60mm,width 50mm,height 22mm

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

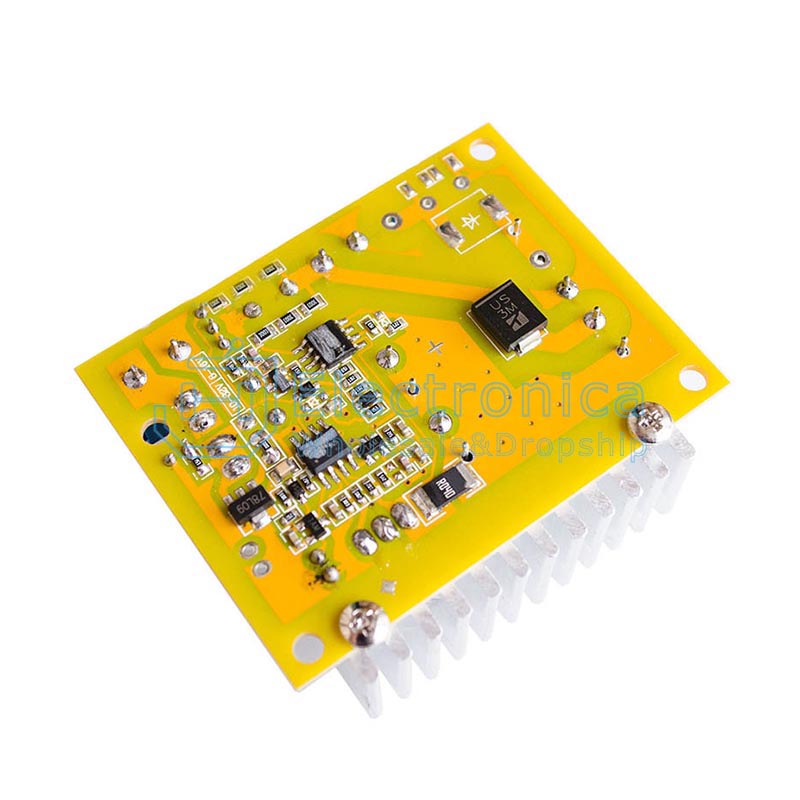

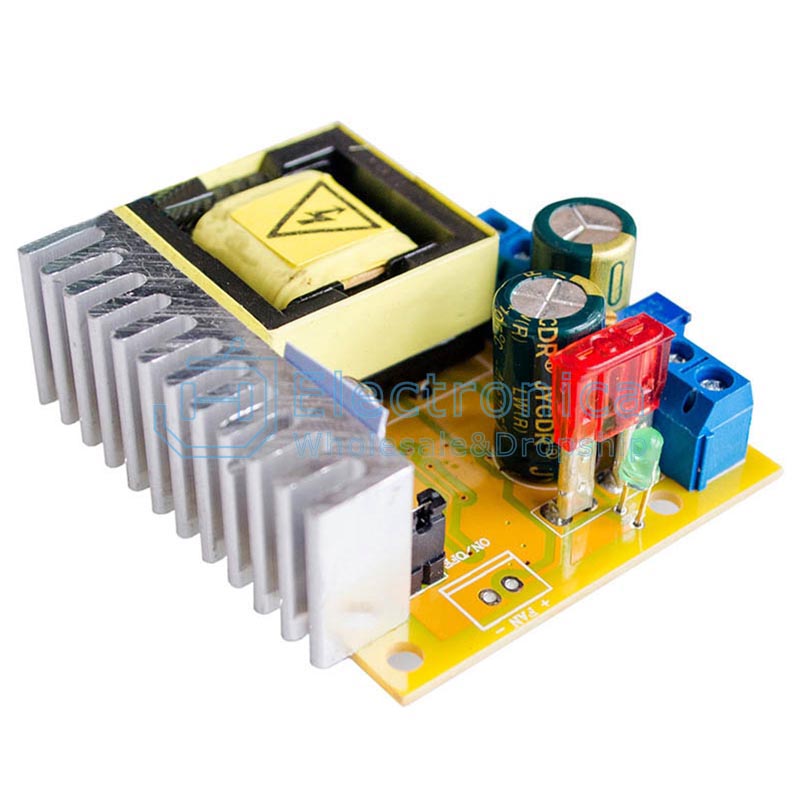

ZVS DC-DC 45-390V 780V Booster Module

SKU : YXK348 Brand : JH Stock

Price : $ 1.61

100 +: $1.61500 +: $1.611000 +: $1.61

Quantity :

- +

ADD TO CART
