Description

Model Specification: Automatic Buck module
Module Properties: Non- isolated boost (BOOST)
Rectification: Non- Synchronous Rectification
Output Range:1.25V-35V
Input Range:3.8V- 32V
Input Current:3A ( max ),no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage , the greater the load current . )
Conversion efficiency:<94% ( greater the pressure, the lower the efficiency)
Switching frequency:400KHz
Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
Voltage Regulation:± 0.5%
Load Regulation:± 0.5%
Operating Temperature:-40 -+85
Dimensions:48mm * 25mm * 14mm ( L * W * H )

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

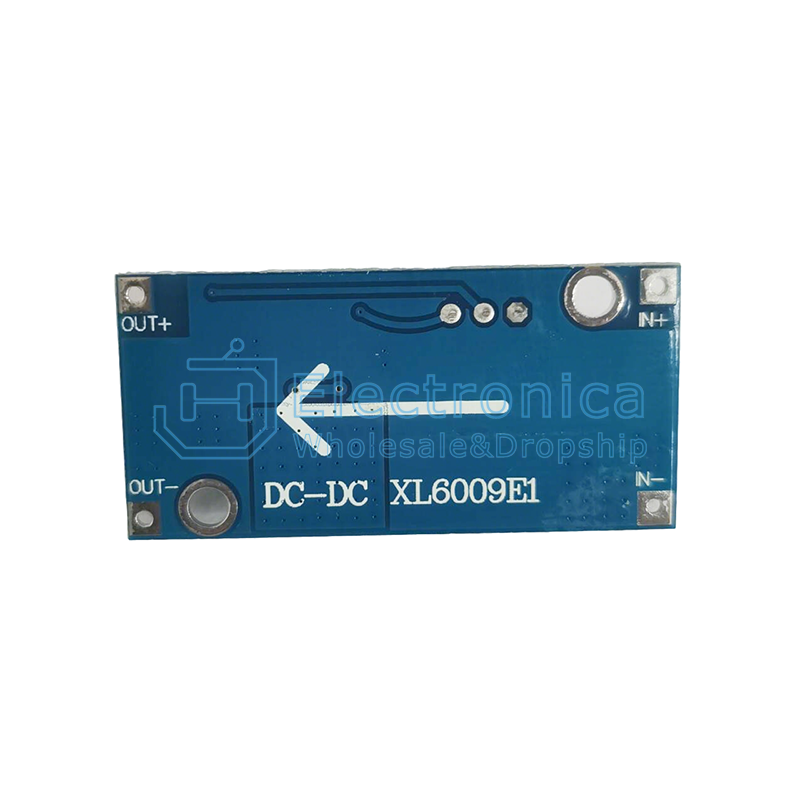

XL6009 DC-DC Adjustable Boost Module

SKU : YXA347 Brand : JH Stock

Price : $ 0.38

100 +: $0.38500 +: $0.381000 +: $0.38

Quantity :

- +

ADD TO CART
