Description

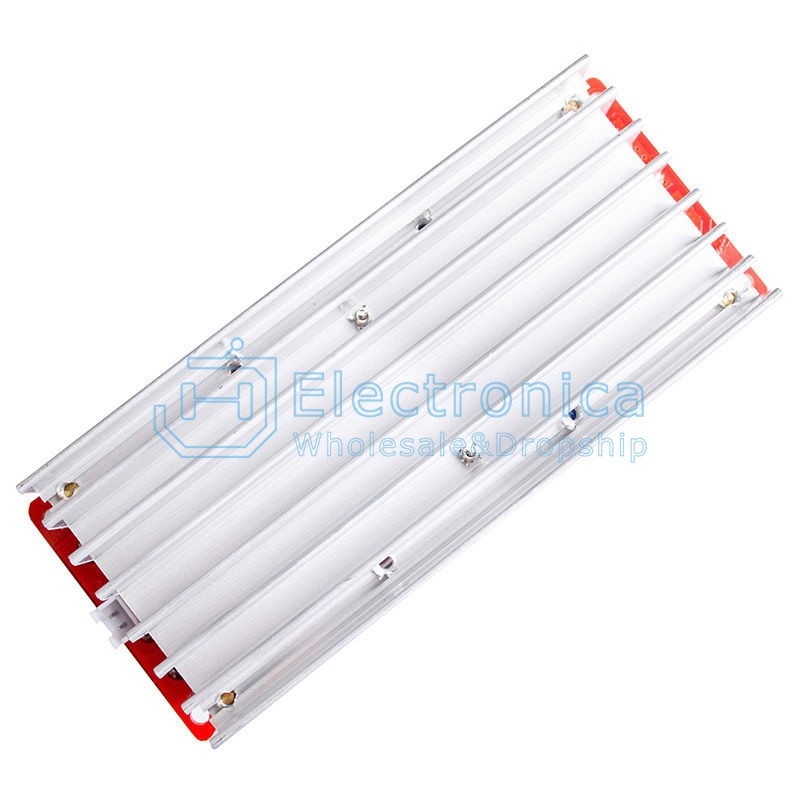

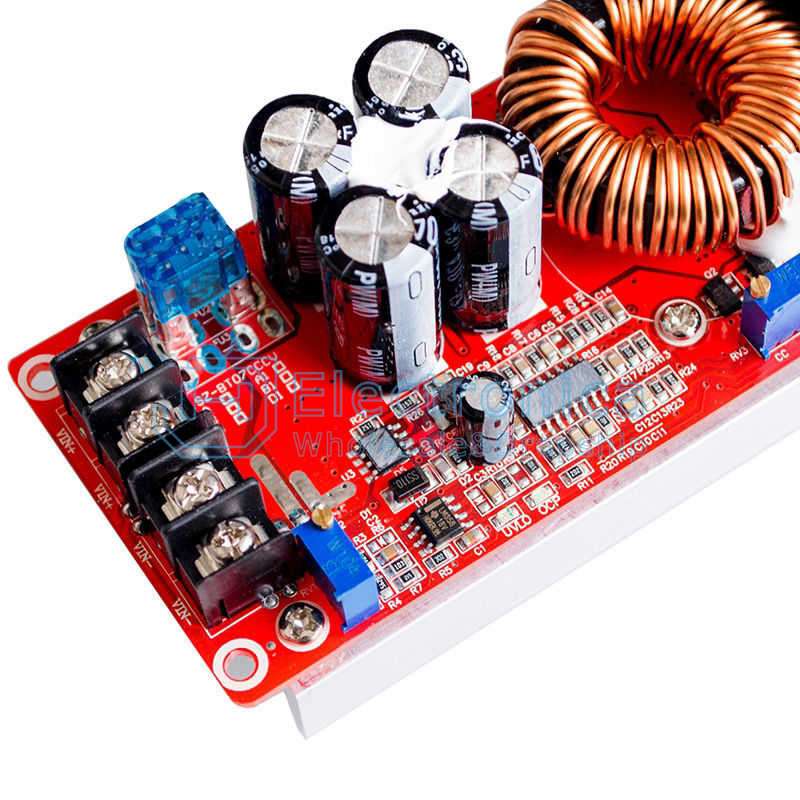

Module name: 1200W boost constant current module
Module properties: non isolated boost module (BOOST)
Input voltage: 8-60V
Input current: 20A
Quiescent operating current: 15mA
Output voltage: 12-83V continuous adjustable
Output current: MAX 12A over 20A, please strengthen
the cooling (with input and output differential pressure,the greater the pressure difference between the output current is small)
Constant current range: 0.3-20A
Output power: = input voltage *10A
Working temperature: -40~+85 degrees
Working frequency: 150KHz
Conversion efficiency: ≤95% (efficiency and input, output voltage,current, pressure difference)
Installation: 4pcs 3mm column
Connection mode: welding output (please use big current and pure copper wire)

Module size: 130mmx52mmx46mm(LxWxH)

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

1200W 20A DC Converter Boost Step-up Power Supply Module

SKU : YXK383 Brand : JH Stock

Price : $ 4.21

100 +: $4.21500 +: $4.211000 +: $4.21
