Description

Input voltage:3 ~ 35V DC(note:the input voltage is less than 4V,onboard voltmeter failure)
Input current:9A (max)
Output voltage:3.5 ~ 35V DC(this plate is a step-up board,the output voltage is≥input voltage)
Output current:6A (max)
Output power:65W,100W enhance heat dissipation can be achieved
Conversion efficiency:96%(maximum)
Output ripple:40mV (TYP)
Onboard voltage meter Range:4 ~ 40V,error±0.1V
Size:67.7*41.5mm
Weight:30g

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

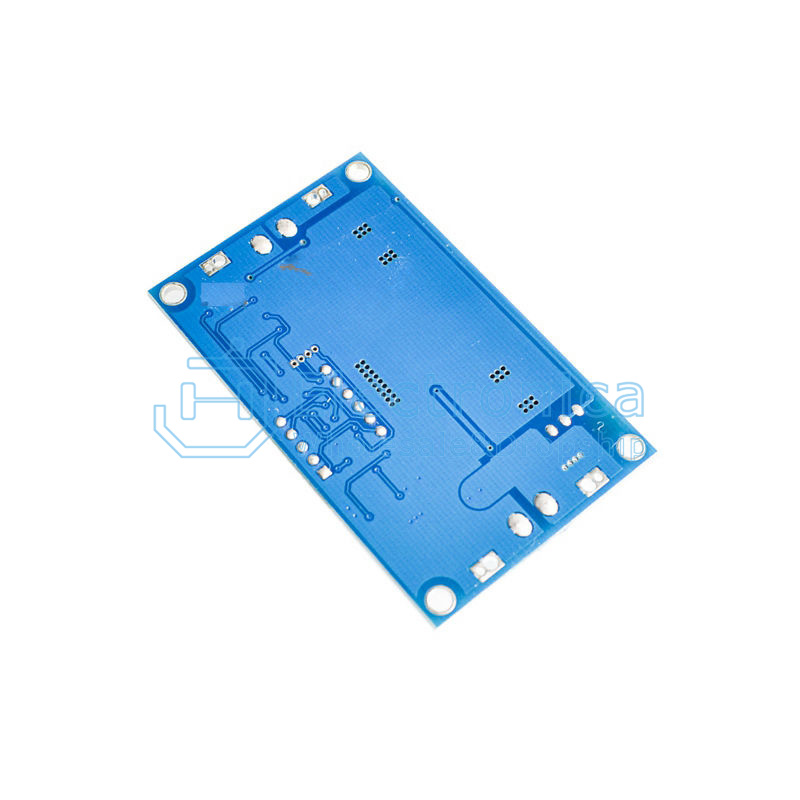

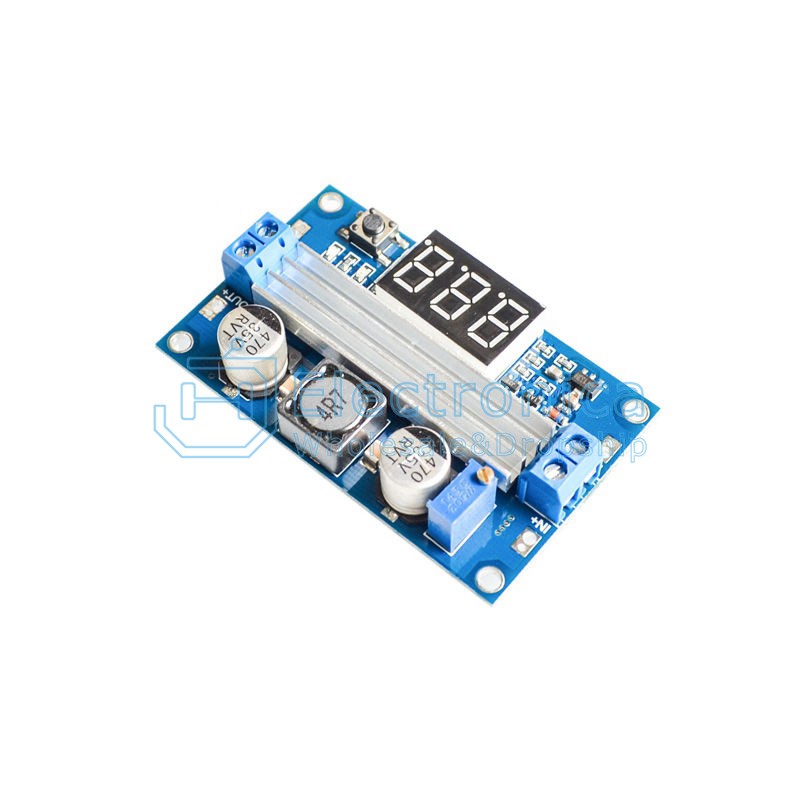

DC-DC Adjustable Boost Module 3.0-35V to 3.5-35V 100W with Digital Voltmeter

SKU : YXK337 Brand : JH Stock

Price : $ 2.00

100 +: $2.00500 +: $2.001000 +: $2.00
