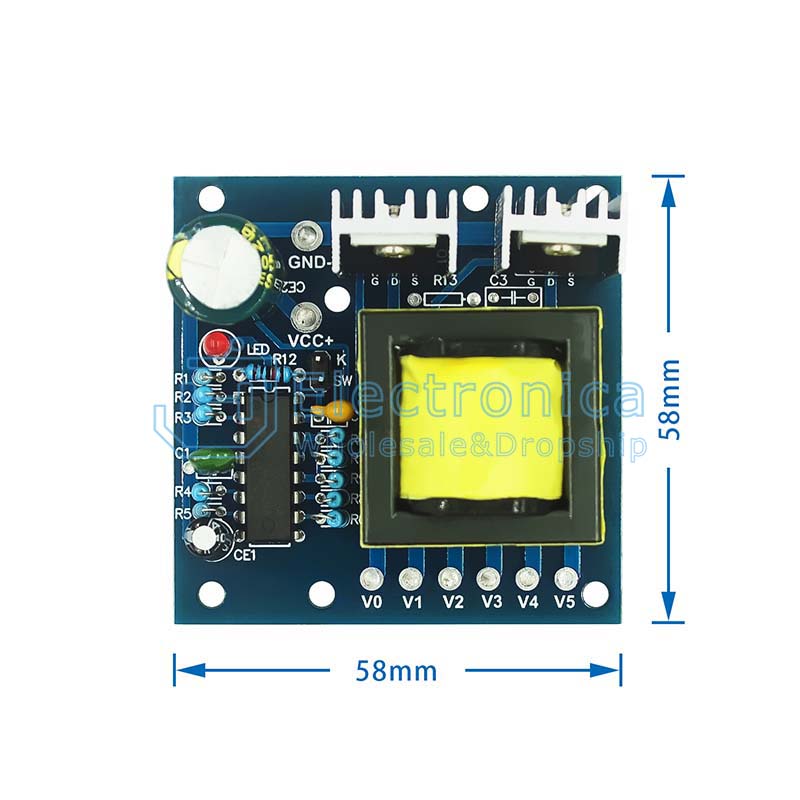

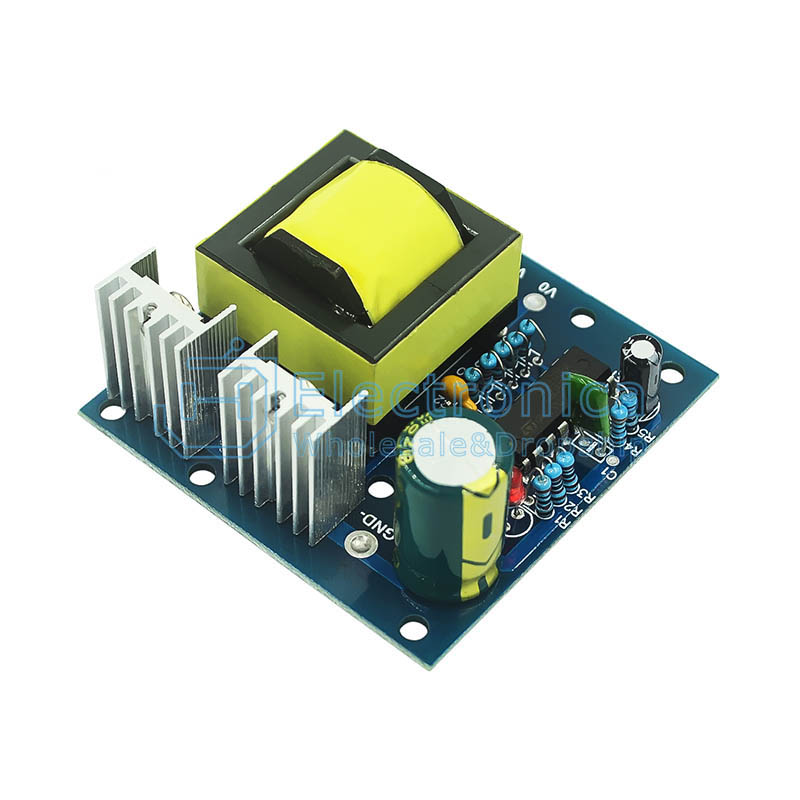

Description

Power: 150W
Input: DC12V or DC24V
Output: AC 0-110V-172V-200V-220V multi-group voltage output
(Note: The output is a high-frequency square wave AC voltage)
Quiescent current: about 0.08A
Output waveform: high frequency square wave
Output frequency: about 20KHz
Protection: no protection
Notice:
1. This board is a high-frequency square wave AC output, so general inductive appliances cannot be carried! ! "Such as: electric motors, electric fans, coil transformers, etc. can't be carried."
Another: simple resistance-capacitance step-down small electrical appliances, cheap resistance-capacitance step-down LED lamps, etc. may not be used
2. When the load is connected to electronic products (LED lights, mobile phone chargers, DVD set-top boxes, WIFA, etc.), a fast recovery diode or a low-voltage gear should be connected in series with the output terminal, such as: 110V 172V
3. It is recommended to increase the heat sink or add a fan to strengthen the heat dissipation when working for a long time under heavy load! !
4. The positive and negative poles of the input power supply cannot be reversed. In addition, the power supply and the power cord should have sufficient current
5. Because there is no protection output, do not overload and do not short circuit.
6. Because the output is a high frequency square wave AC voltage, many general multimeters cannot measure or the measured display value is low or high (it is incorrect, not the actual voltage. You can use it with confidence)

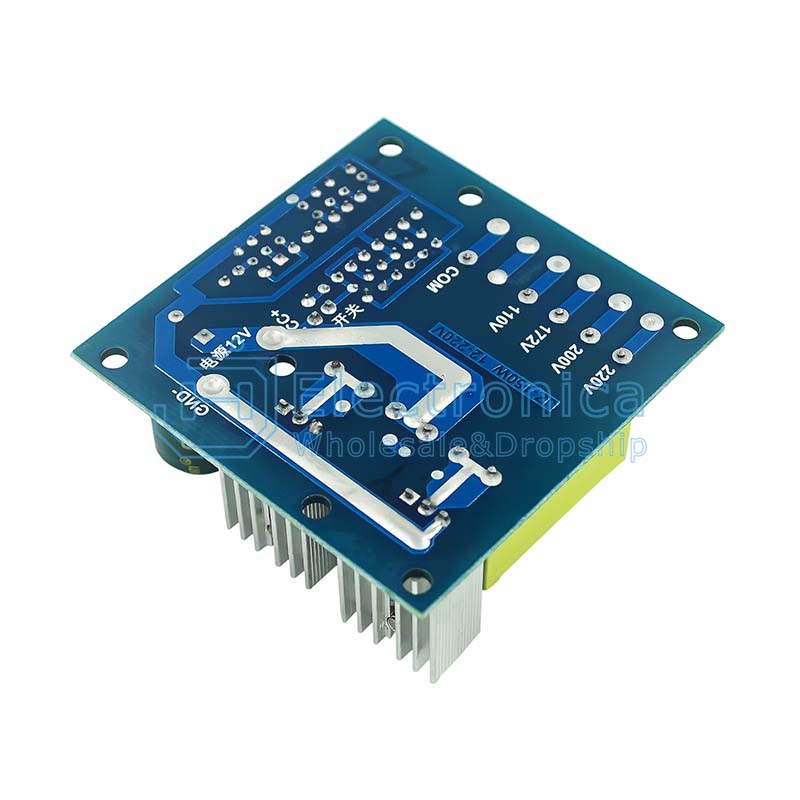

The output wiring voltage is as follows: "For reference only"
V0--V2=110V
V0--V3=175V
V0--V4=200V
V0--V5=220V
V5--V4=20V
V5--V3=45V
V5--V2=110V
V4--V3=28V
V4--V2=90V

V3--V2=62V

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

150W DC12V AC220V Battery Booster Inverter Module

SKU : YXC335 Brand : JH Stock

Price : $ 2.55

100 +: $2.55500 +: $2.551000 +: $2.55
