Description

±5V Output:
Input 3~4.5V,Output ±5V
Maximum input current:2A
Maximum output current:+Vo 1A,-Vo 200mA

±6V output：
Input 3~5V,Output ±6V
Maximum input current: 2A
Maximum output current:+Vo 1A,-Vo 200mA

±9V Output:
Input 3.3~8V,Output ±9V
Maximum input current:1.8A
Maximum output current:+Vo 800mA,-Vo 180mA

±12V Output:
Input 3.3~11V,Output ±12V
Maximum input current:1.8A
Maximum output current:+Vo 700mA,-Vo 150mA

±15V Output:
Input 3.3~13V,Output ±15V
Maximum input current:1.8A
Maximum output current:+Vo 600mA,-Vo 120mA

±24V Output:
Input 3.6~18V,output ±24V
Max. input current:1.8A
Maximum output current:+Vo 400mA,-Vo 100mA

Static working current:3-4mA
Working frequency:400KHZ
Working temperature:-40~+125℃
Storage temperature:-65~+150℃
2.54mm row of pins (if choose with pin output)
Size (excluding the pin) 25 x 16.3 x 6.6mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

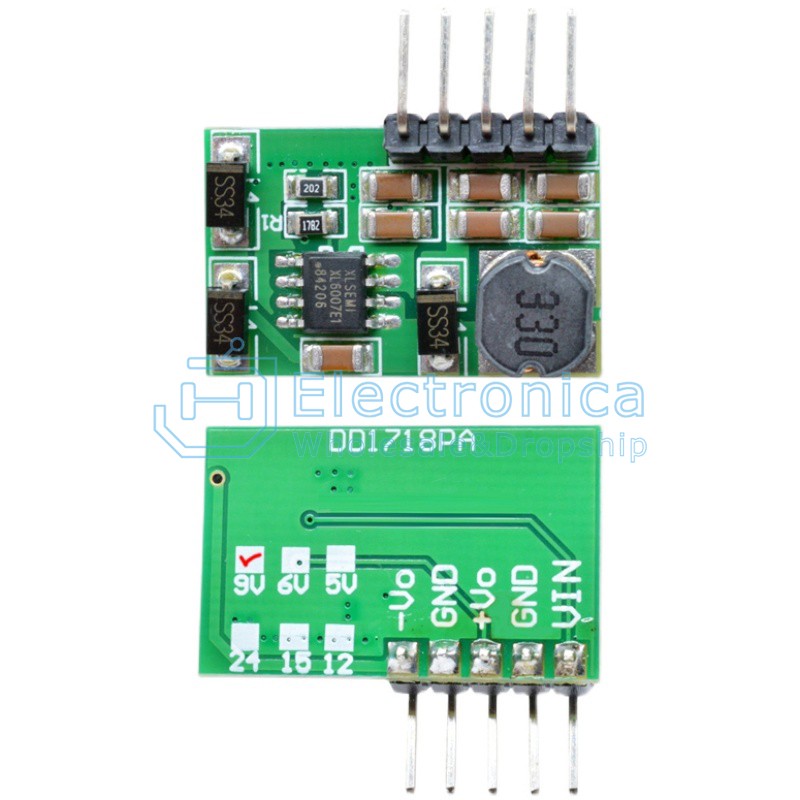

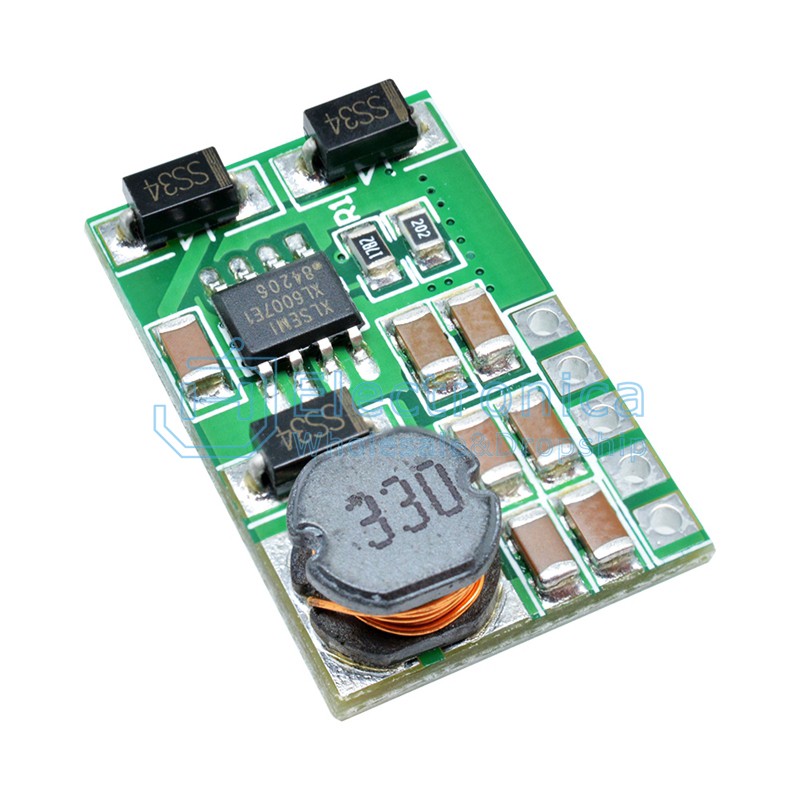

3-18V to ±5V/6V/9V/12V/15V/24V Step Up Module

SKU : YXC904 Brand :

Price : $ 1.54

100 +: $1.54500 +: $1.541000 +: $1.54
