Description

1. Module Properties: non-isolated step-up module (BOOST)
2. Input voltage: 1-5V
3. Output voltage: 5.1~5.2V
4. Output Current: Rated 1A~1.5A (Single lithium battery input)
5. Conversion efficiency: up to 96% ( input voltage, the higher the efficiency )
6. Switching Frequency: 500KHz
7. Output ripple: 30mV (Max) 20M Bandwidth ( Input 4V, Output 5.1V 1A)
8. Voltage indication: LED lights with a load (input voltage is lower than 2.7V LED indicator off )
9. Operating temperature: Industrial grade (-40 Celsius to +85 Celsius )
10. Full load temperature rise: 30 Celsius
11. Quiescent Current: 130uA
12. Load regulation: ± 1%
13. Voltage regulation: ± 0.5%

14. Dynamic response speed: 5% 200uS

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

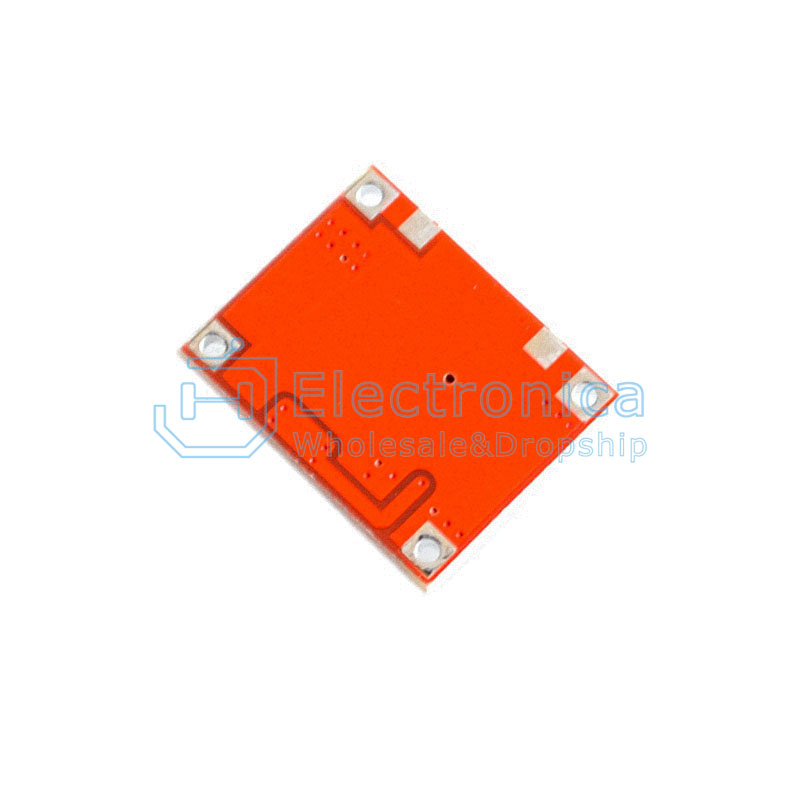

DC-DC Step Up Circuit Module 3V to 5V 1A

SKU : YXK664 Brand : JH Stock

Price : $ 0.44

100 +: $0.44500 +: $0.441000 +: $0.44
