Description

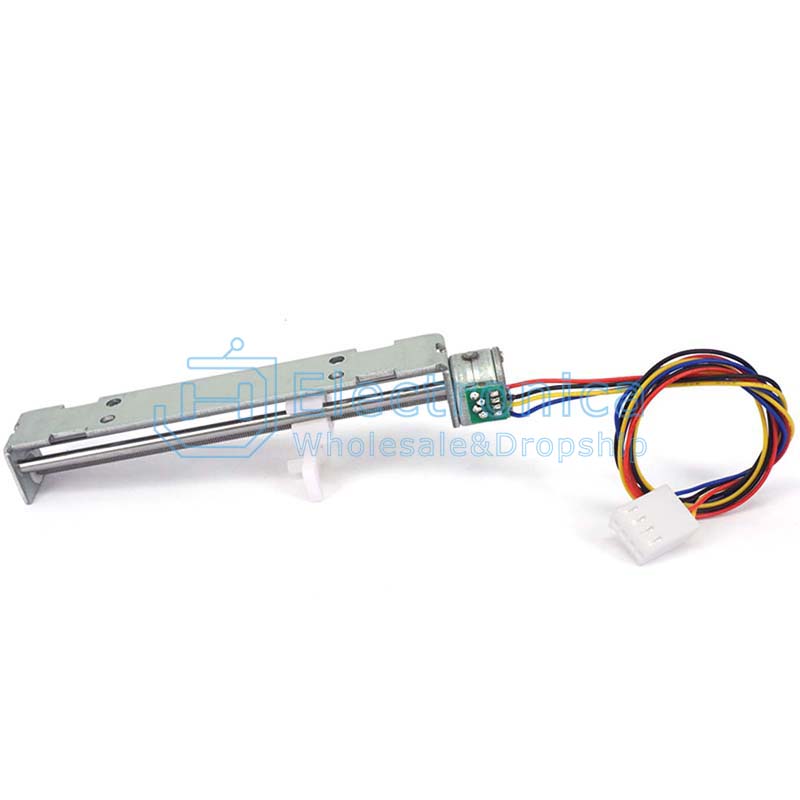

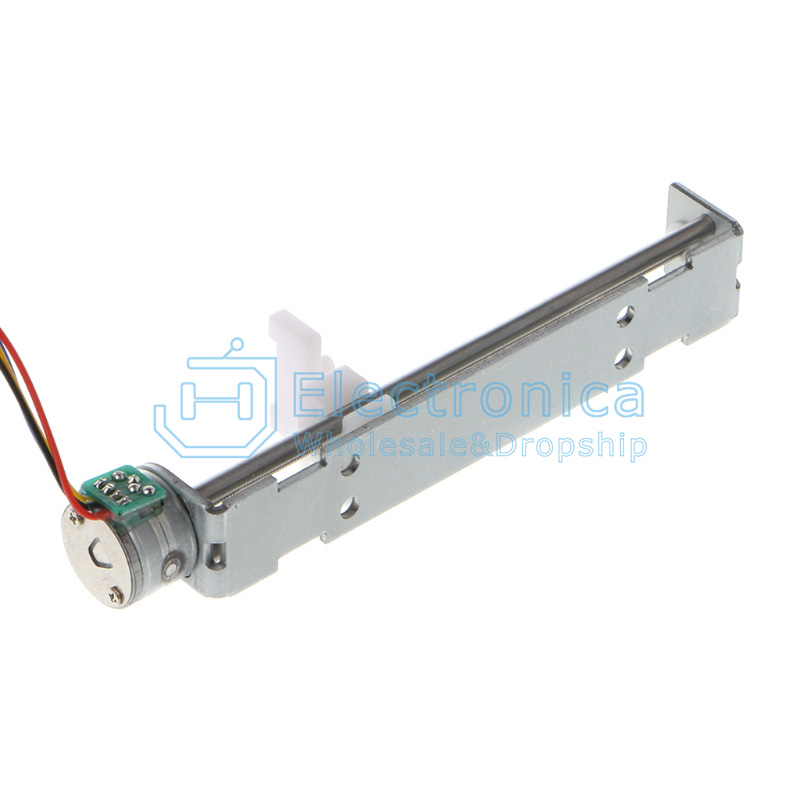

Micro Sliding table fit for DIY laser engraving machine as its XY axis
Screw thread pitch: 0.5mm (a step moving 0.025mm, as required for smaller can be used to segment the driver)
The speed of a straight line is the maximum 25mm/s
4 Wire: Blue A +, Black A-, Red B +, Yellow B-
Note: The stepper motor is not rotating with power. Need stepper motor drive board and control panel.

Specifications:
Motor Type: 2 Phase 4 Wire
Driving Voltage: DC 4-9V 500mA
Step Angle: 18°
Screw Length: 90mm/3.5"
Screw Diameter: 3mm/0.1"
Slider Width: 15mm/0.6"
Effective Stroke: 80mm/3.1"
Screw Pitch: 0.5mm/0.02"
Stage Size: 105x15mm/4.31"x0.59"

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

2 Phase 4 Wire Drive Stepper Motor Linear Screw SM15-80L

SKU : YXD093 Brand : JH Sourcing

Price : $ 5.83

100 +: $5.83500 +: $5.831000 +: $5.83
