Description
Material:HD IPS LCD
Resolution ratio:80*RGB*160
Driver chip:ST7735S
Size:13.5*27.95*1.5mm
Working voltage:3.3V
Working current:20mA
Working temperature:-20~70℃
Pin:welded type-13 pin,spliced type-8 pin
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

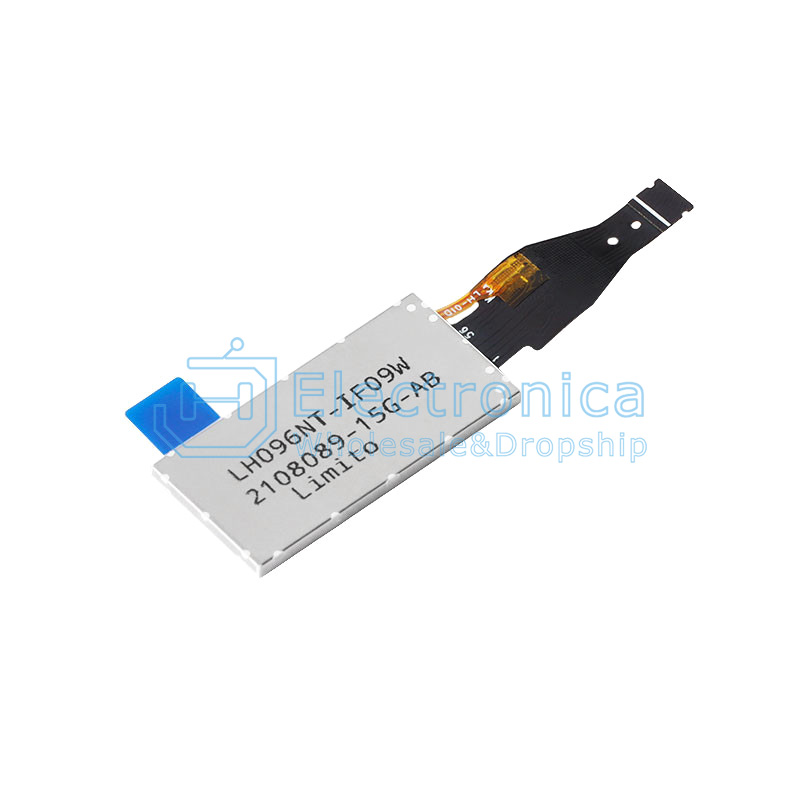

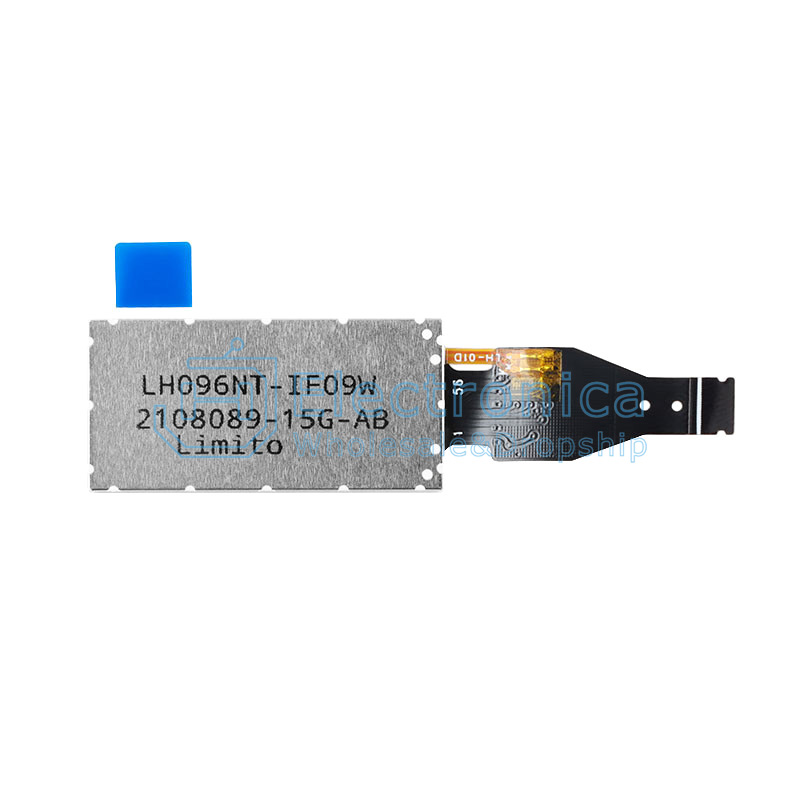

0.96 Inch TFT IPS Display Screen
SKU : YXS1005 Brand :
Style：

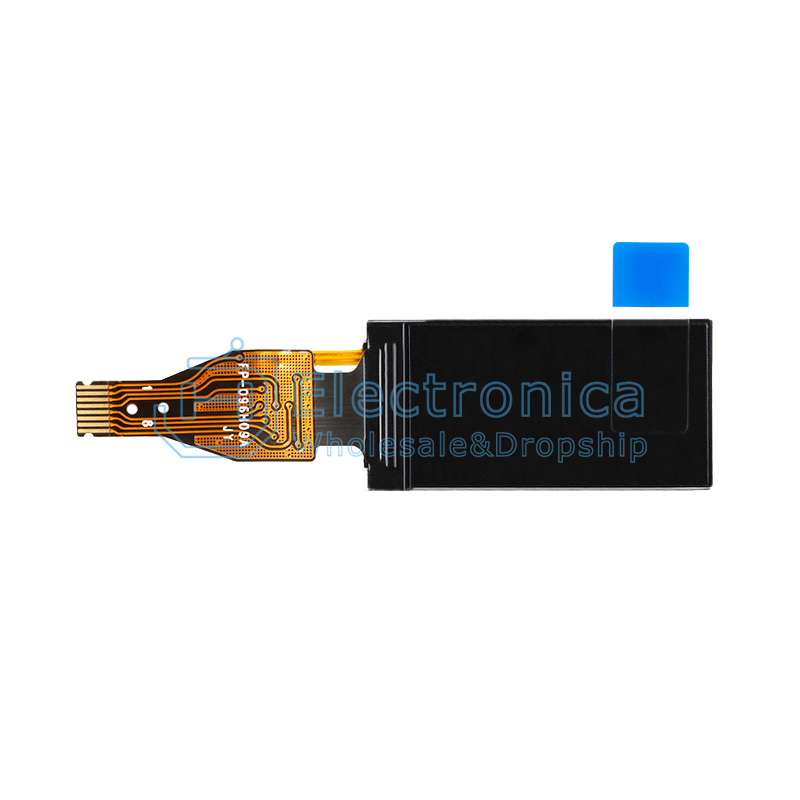

Spliced type

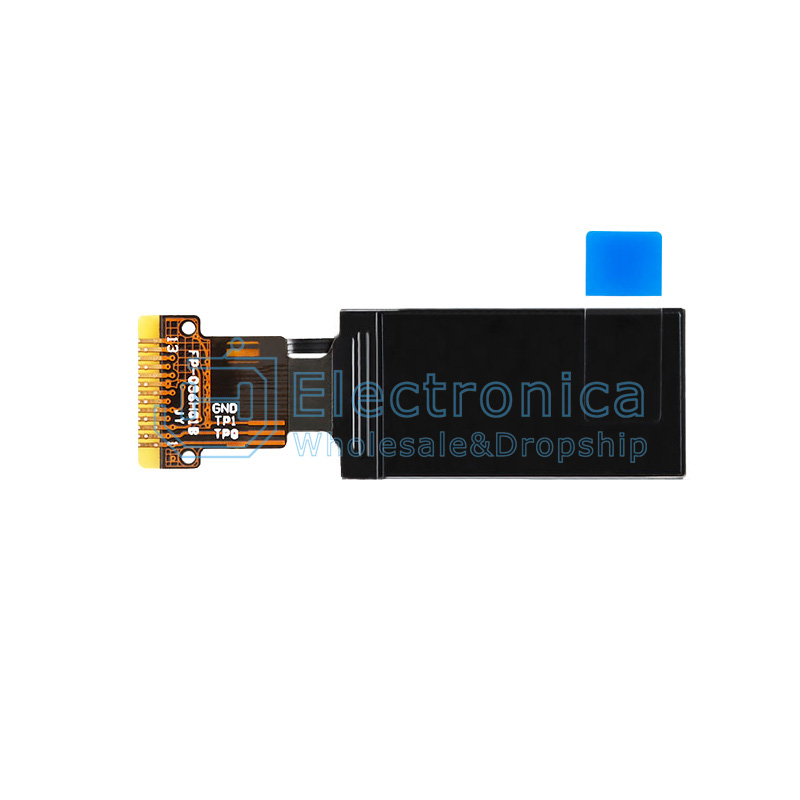

Welded type
