Description

Color:Red
Resolving Power:320X480mm

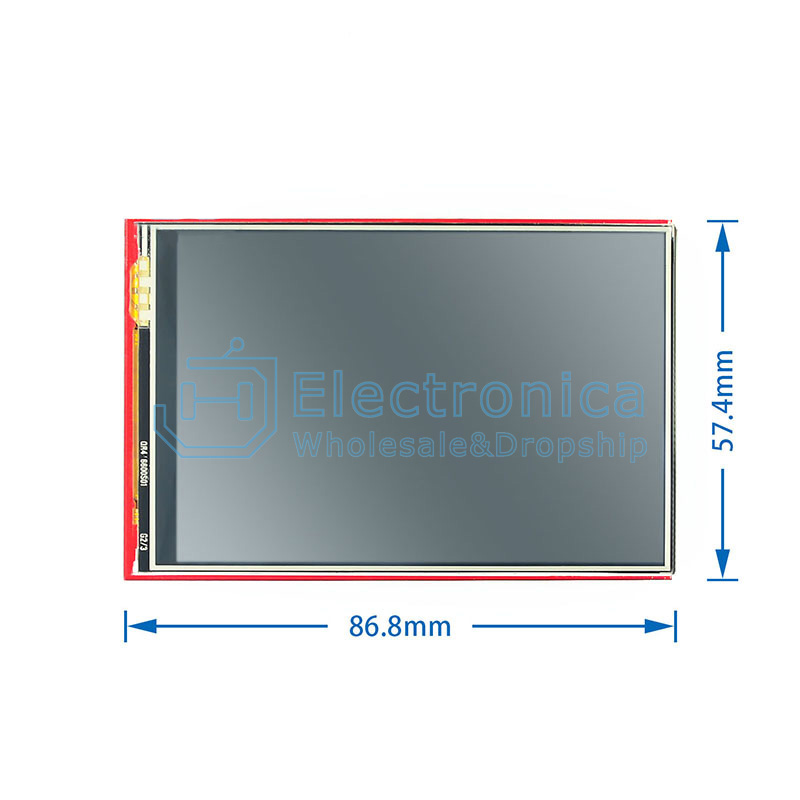

Size:86.8*57.4mm
Active area:48.96x73.44(mm)
Driver element:a-Si TFT active matrix
Pixel arrangement:RGB vertical stripe
Driver IC:RM68140
Backlight:White LED
Viewing Direction:6 o'clock
Color Depth:65K
Resolution (dots):320RGB*480 Dots
Power consumption:about 90mA
Data Interface:4-Wire SPI interface
VCC Voltage:3.3V - 5V
IO Voltage:3.3V

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

3.5 Inch 320x480 TFT LCD Color Screen Module

SKU : YXS235 Brand : JH Sourcing

Price : $ 6.38~6.55

100 +: $6.38~6.55500 +: $6.38~6.551000 +: $6.38~6.55

Style：

Quantity :

- +

ADD TO CART
