Description

Size:1.8inch
Resolution:128×160
Weight:16g
PCB board size:59mm×35mm

The most compact wiring IO: (at least 3 IO)

1. RST - Free when directly connected to the microcontroller reset signal side
2. CS - Free when connected low-level, chip select long-term effective
3. AO - Connect IO control register selection
4. SDA - Connect IO control data transmission
5. CLK - Connect IO control SPI bus
6. LED - Free when connect high-level 3.3V backlight is always bright

Standard wiring IO: (6 IO)
1. RST - Connect IO control LCD reset
2. CS - Connect IO control chip select
3. AO - Connect IO control register selection
4. SDA - Connect IO control data transmission
5. CLK - Connect IO control SPI bus
6. LED - Connect to the IO control backlight off or PWM control brightness

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

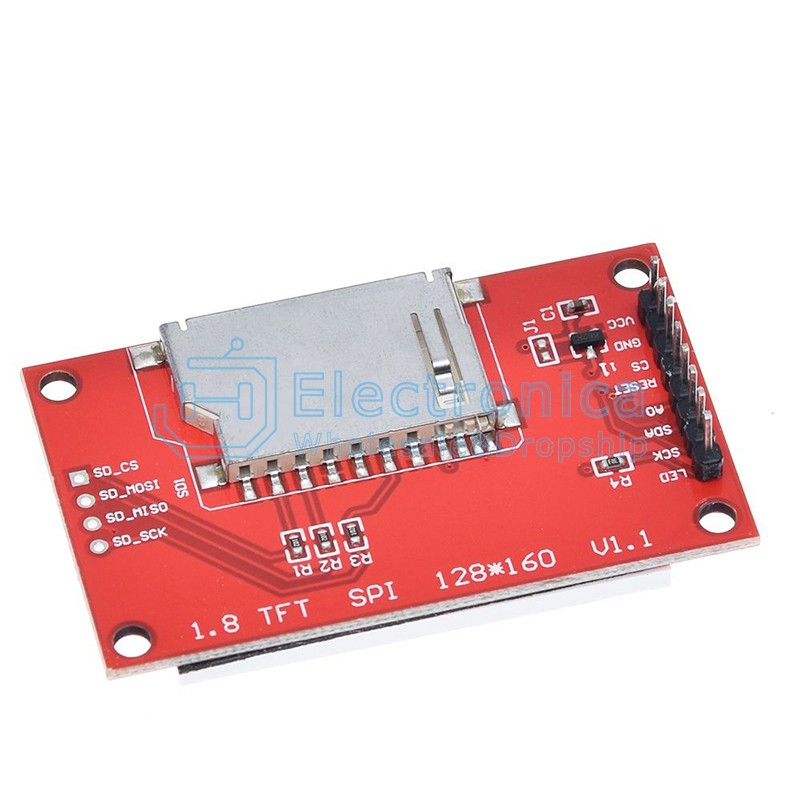

1.8 Inch TFT SPI Serial Port LCD Display Module

SKU : YXK640 Brand : JH Stock

Price : $ 3.00

100 +: $3.00500 +: $3.001000 +: $3.00
