Description
Material:TFT LCD
Resolution:320*RGB*480
Driver chip:ILI8488,ST779S
Display area:55.68*83.52mm
Panel size:61.88*106.57*3.7mm
Interface type:3 Line-SPI/4 Line-SPI(default 4 Line-SPI)
Backlight type:8*LED
Work voltage:2.8V-3.3V
Current:120mA
Power consumption:0.43W
Working temperature range:-20℃~70℃
View:12 o’clock
Pins:2.54mm 8Pin
Working humidity range:5%-95%RH
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

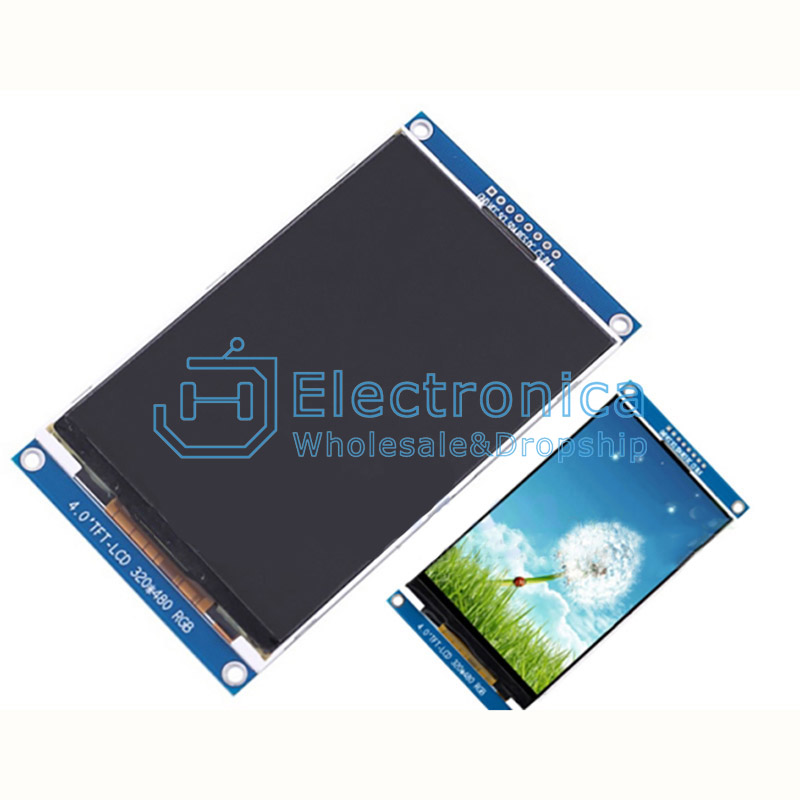

4 Inch 320*480 TFT LCD Display Screen Module
SKU : YXS1332 Brand :
You May Also Like
0.96/1.3/1.44/1.8 Inch OLED Display Module
$1.05
LCD2004 5V Green Screen
$2.36
4 Port USB KVM Switch
$5.97
1.3 Inch SPI 240x240 TFT LCD Display Module
$1.50
1.44 Inch IPS Display Module
$2.74
2.4/2.8/3.2/3.5 Inch Colorful TFT LCD Screen Display Module
$2.63
0.91 Inch OLED Display Screen Module
$0.77
3.5 Inch 320x480 TFT LCD Color Screen Module
$6.41
LCD1602 LCD2004 IIC/I2C Interface PCF8574 Expansion Board
$0.26
2.42 Inch 128*64 OLED Display Screen Module
$5.97
3.2 Inch ILI9341 TFT LCD Display Module
$7.32
1.8 Inch TFT SPI Serial Port LCD Display Module
$3.00

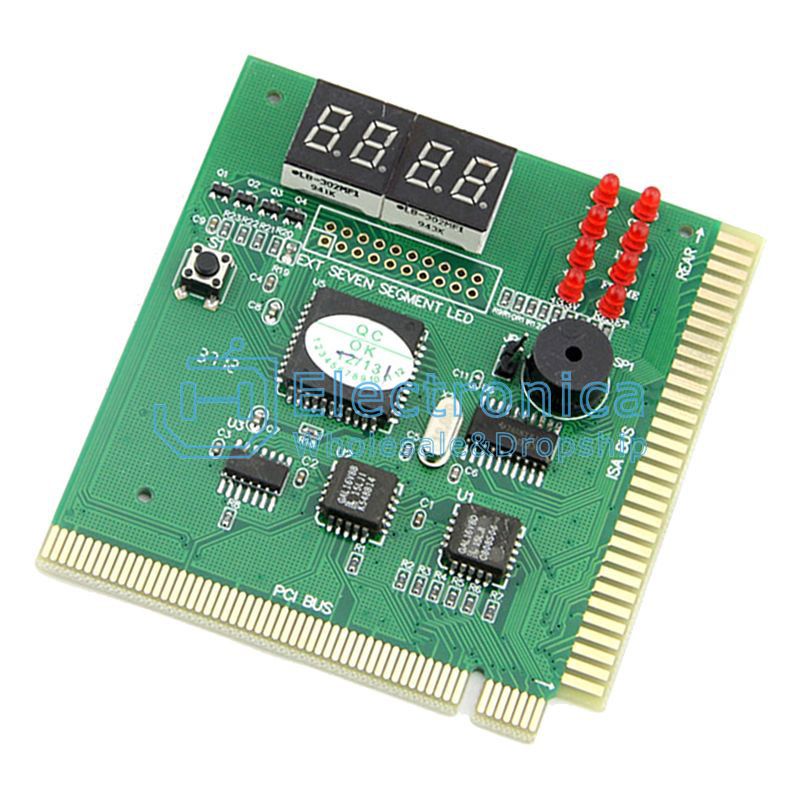

4 Digit LCD Display PCI Diagnostic Post Card
$3.67

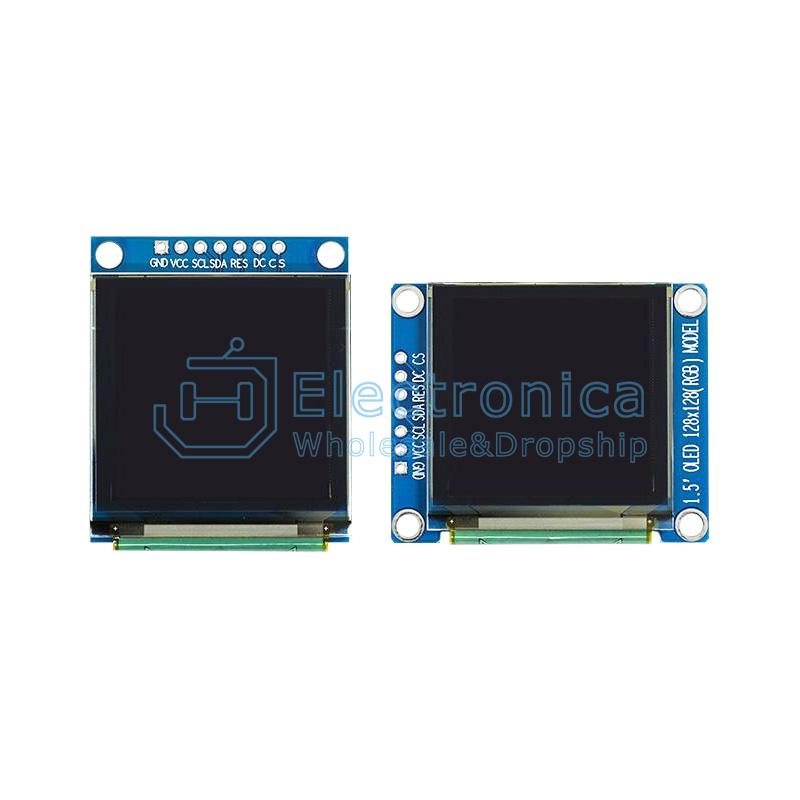

1.5 Inch 128*128 Colored OLED Display Screen
