Description
Resolution:128RGB*160 Dot-matrix
Communication interface:SPI-4 wire interface
Driver chip:ST7735S
Size:35*56*3.45mm
Display area:28.03*35.04
Pixel size:0.219*0.219
Working voltage:3.3V
Operating current:30mA
Number of disciplines:8pin
Angle view:12 o'clock
Operating temperature:-20~70℃
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

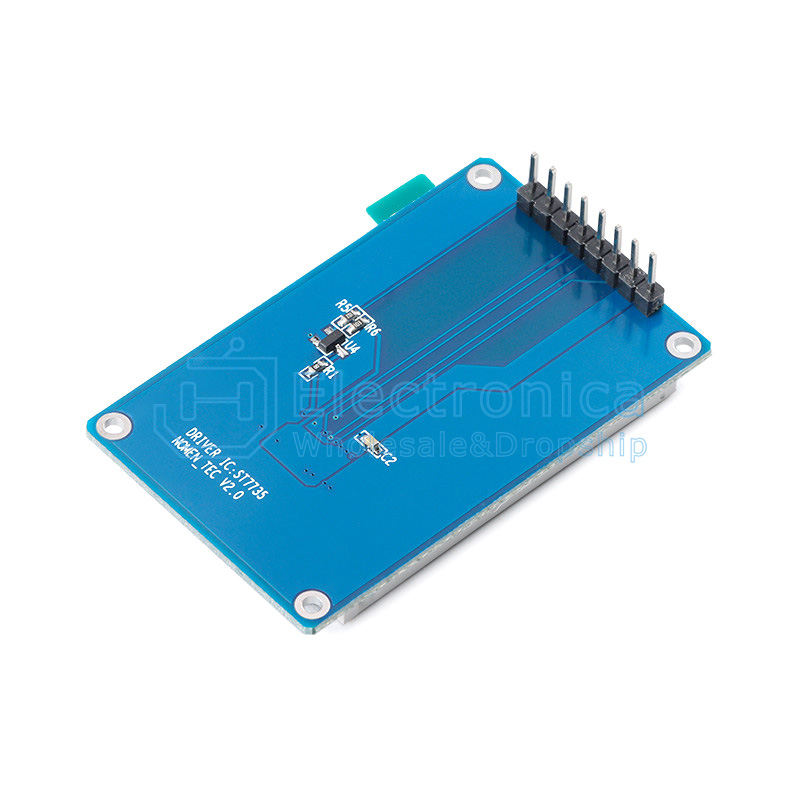

1.8 Inch TFT LCD Color Screen Module
SKU : YXS1006 Brand :
