Description

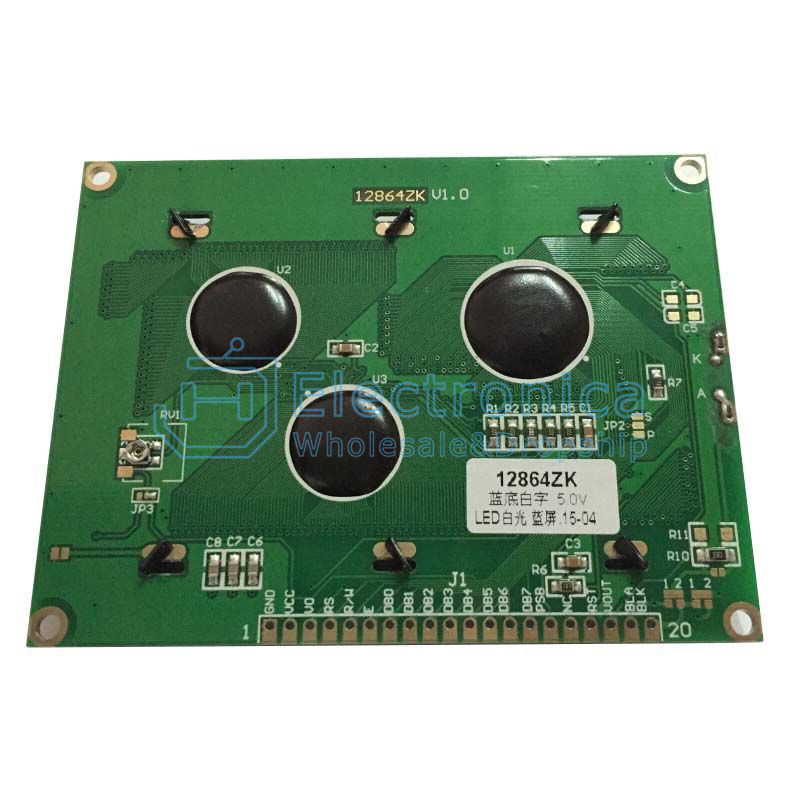

1. 12864ZK Display Content 128×64 dot matrix, dot size 0.48×0.48mm2, point spacing 0.02mm
2. Display type: STN yellow green mode, 6:00 viewing angle, forward display
3. LED backlight
4. Working voltage: 5V, excluding backlight Working current: 7.5mA (typical value);
5. Working temperature: -20℃~70℃
6. Storage temperature: -30℃~80℃
7. Controller ST7920, ST7921, chip packaging COB
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
5V LCD12864 Display Screen
SKU : YXS287 Brand : JH Sourcing
