Description

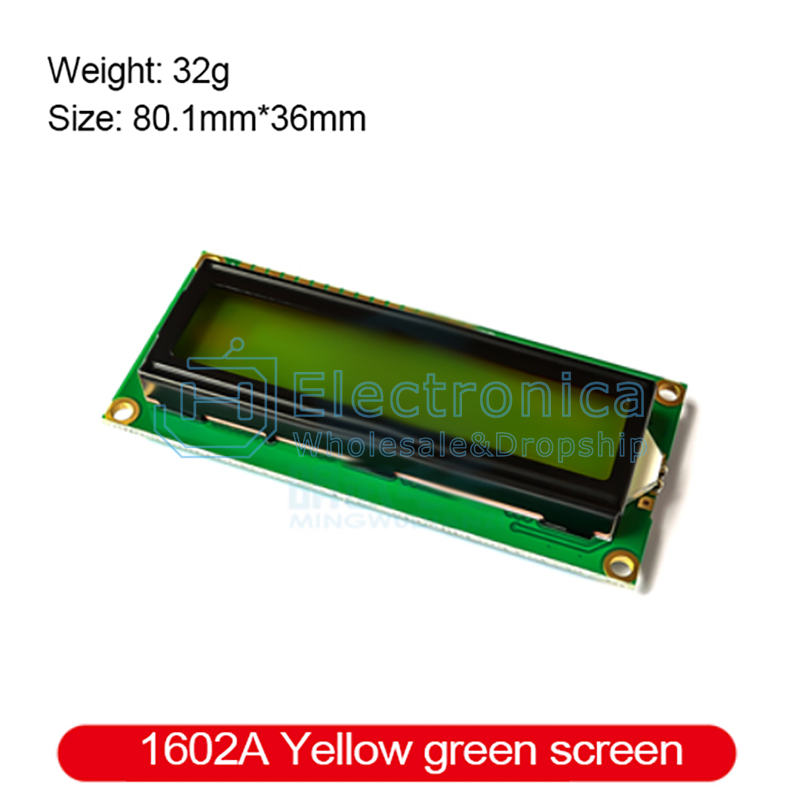

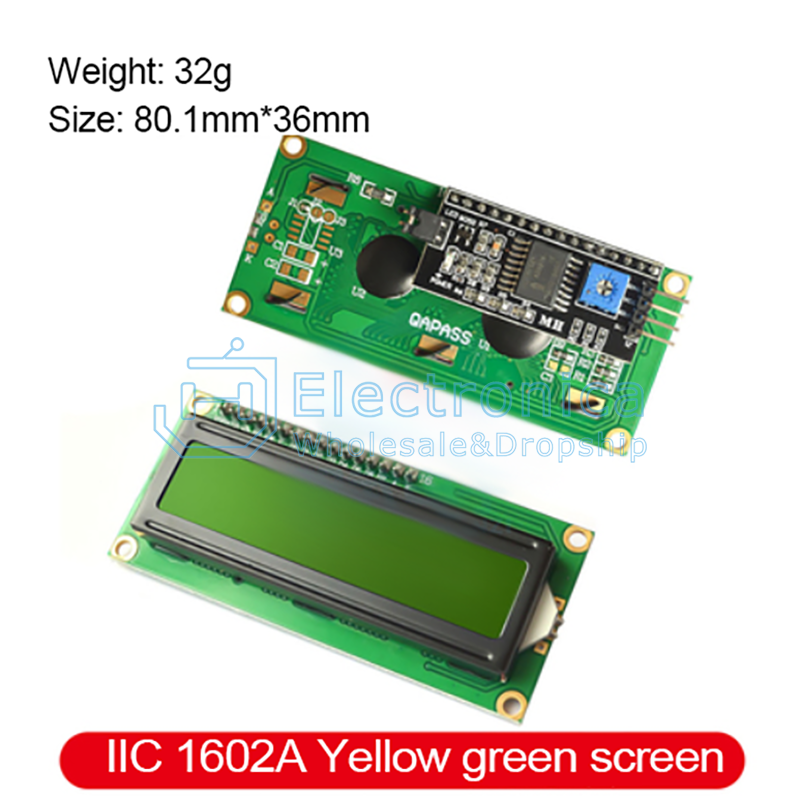

1602A Blue/ Yellow-Green

Logic working voltage (Vdd): +4.8~+5.2V
LCD drive voltage (Vdd-Vo): +3.0~ +5.0V
Storage temperature (Tsto): -30~+ 80C (wide temperature)
Working temperature (Ta): -20~+70C (wide temperature)
Operating current (except backlight): 1.7mA (max)
Working current (backlight): 24.0mA (max)

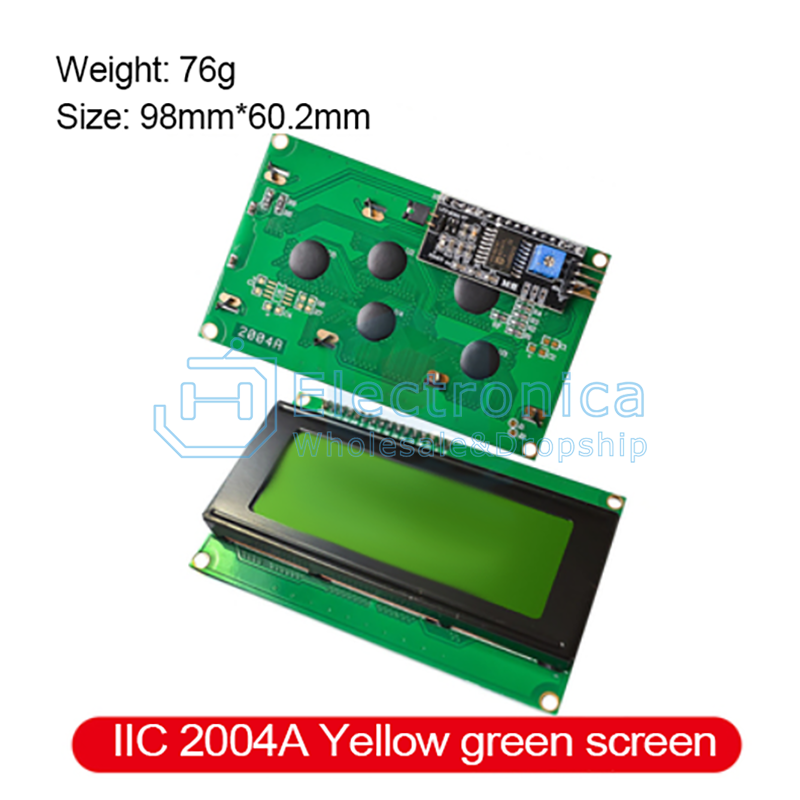

2004 Blue / Yellow-Green
Power supply: VDD 5V
Display color: yellow green / blue screen

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
