Description
Material:TFT LCD
Resolution ratio:128*RGB*128

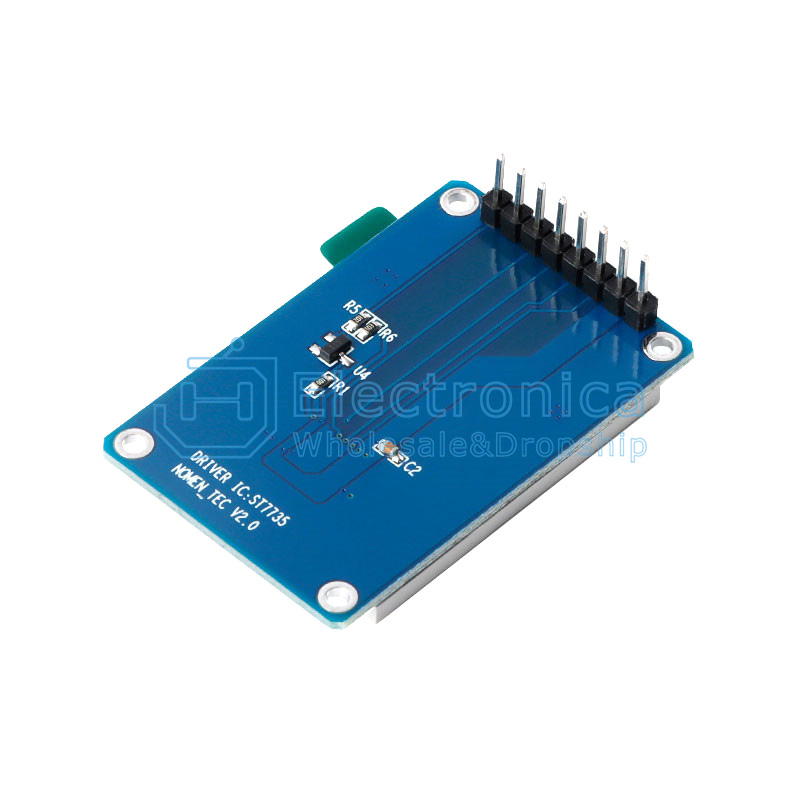

Control chip:ST7735S
Module size:30*46.5*3.45mm
Interface mode:4 wire SPI interface
Working voltage:2.8~3.3V
Current:15mA
Power:0.06W
Working temperature:-20~70℃
Storage temperature:-30~80℃
Viewing angle:12 o'clock
Touch type:without touch
Pin:8 pin(2.54mm pitch single row pin header)
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

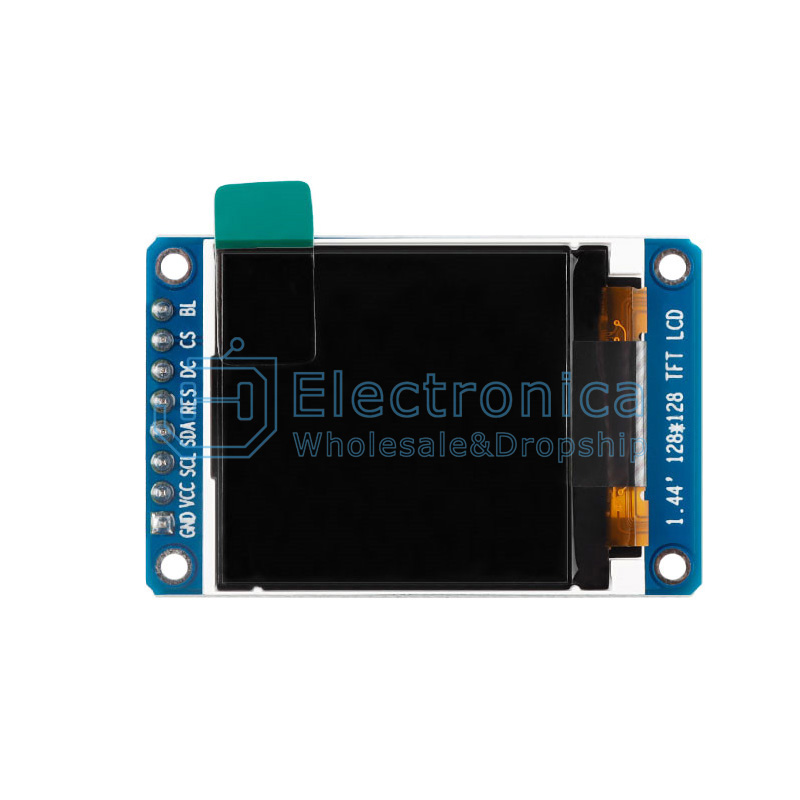

1.44 Inch IPS Display Module
SKU : YXS999 Brand :
