Description

Specifications:
Differential input voltage:±40mV
Data accuracy:24 bit Analog to Digital Conversion chip
Refresh Frequency:80Hz
Operating Voltage:DC 2.6~5V
Operating Current:<10mA
Pinout with 0.1 spacing:VCC,SCK,DT,Ground

The microcontroller weighing AD module-TM7711 is compatible with the HX710A chip in terms of software and hardware; This module uses a 24 bit high-precision A/D converter chip TM7711, which is designed specifically for high-precision electronic scales and has a single analog channel input. The input circuit can be configured as a bridge type(such as pressure, weighing) sensor mode that provides bridge voltage, making it an ideal high-precision, low-cost sampling front-end module

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

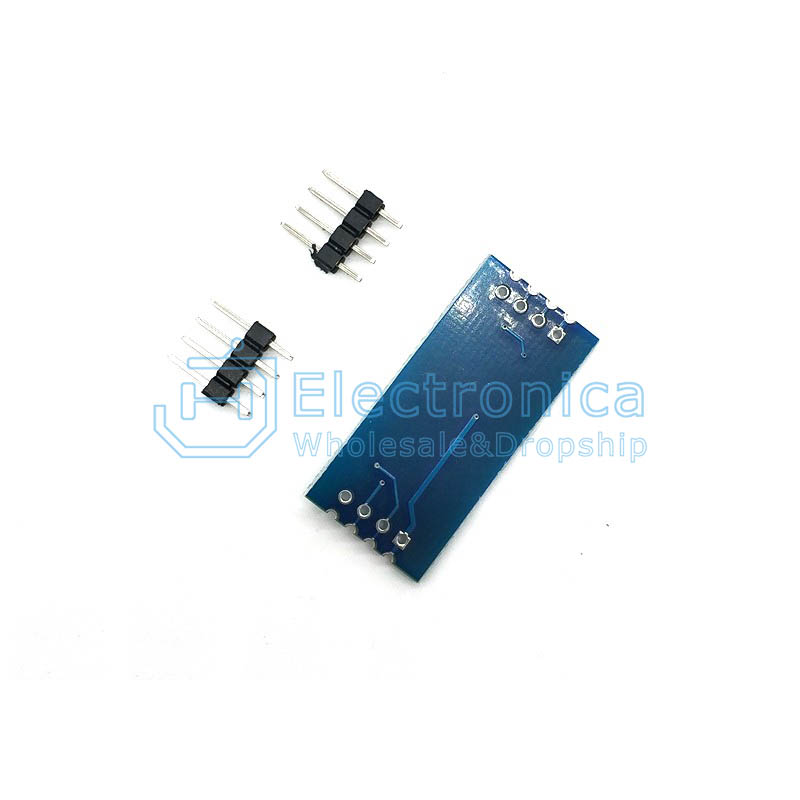

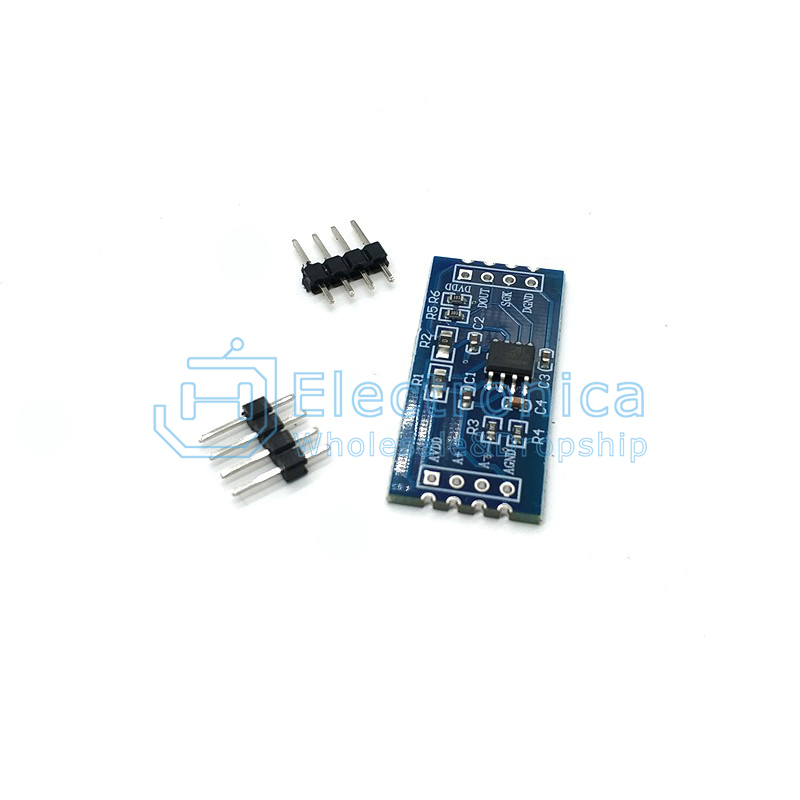

TM7711 Electronic Weighing Sensor

SKU : YXC1081 Brand :

Price : $ 0.68

100 +: $0.68500 +: $0.681000 +: $0.68

Quantity :

- +

ADD TO CART
