Description

Capacity: 1kg / 5kg / 10kg / 20kg

Load cell size: 80 * 13 * 13mm
Output sensitivity: 1.0 ± 0.1mV / V
Zero output: ± 0.1mV / V
Nonlinear: 0.05% F.S
Gal: 0.05% F.S
Repeatability: 0.05% F.S
Creep: 0.05% F.S / 3min
Output impedance: 1000 ± 50 Ω
Input resistance: 1000 ± 50 Ω
Zero temperature drift: 0.2% F.S / 10°C
Zero drift: 0.05% F.S / 10°C
Insulation resistance (MΩ): ≥ 2000 (100VDC)
Recommended Excitation Voltage: 5-10V
Operating temperature: -10 ~ + 50℃
About load: 150% F.S

Size:80×13.5×13.5mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

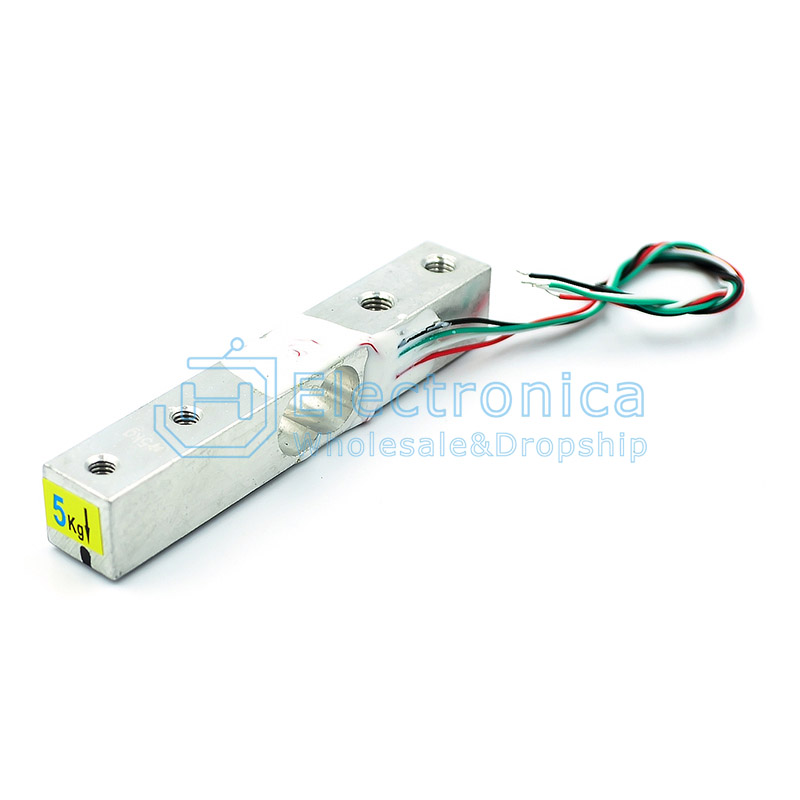

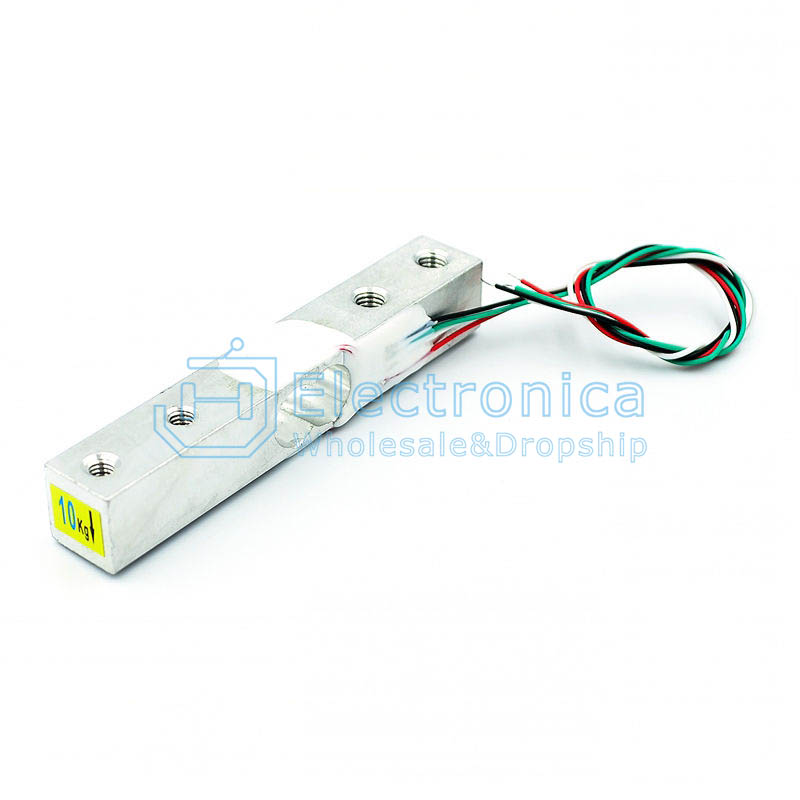

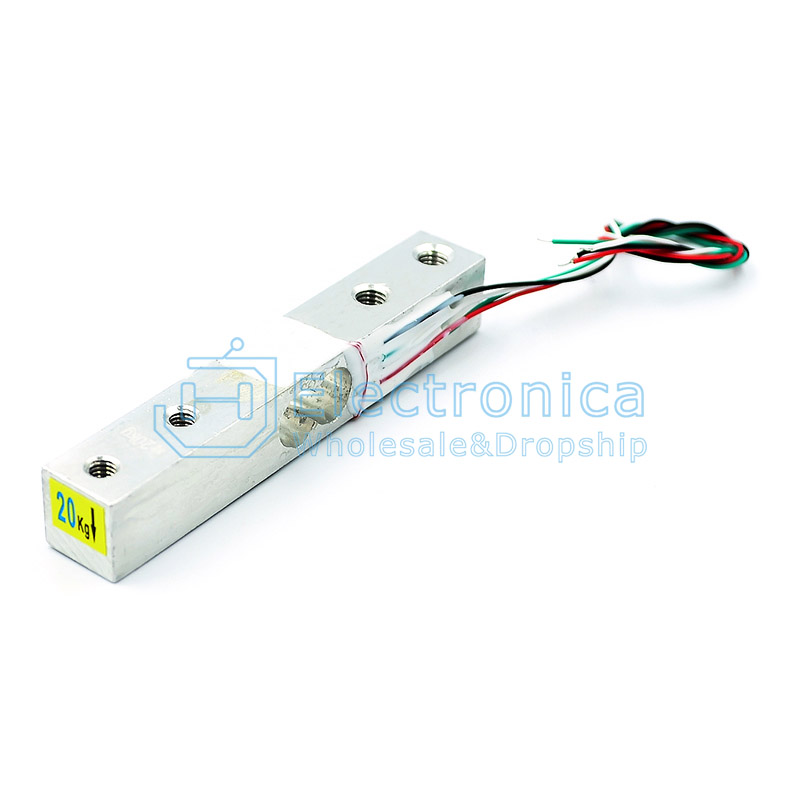

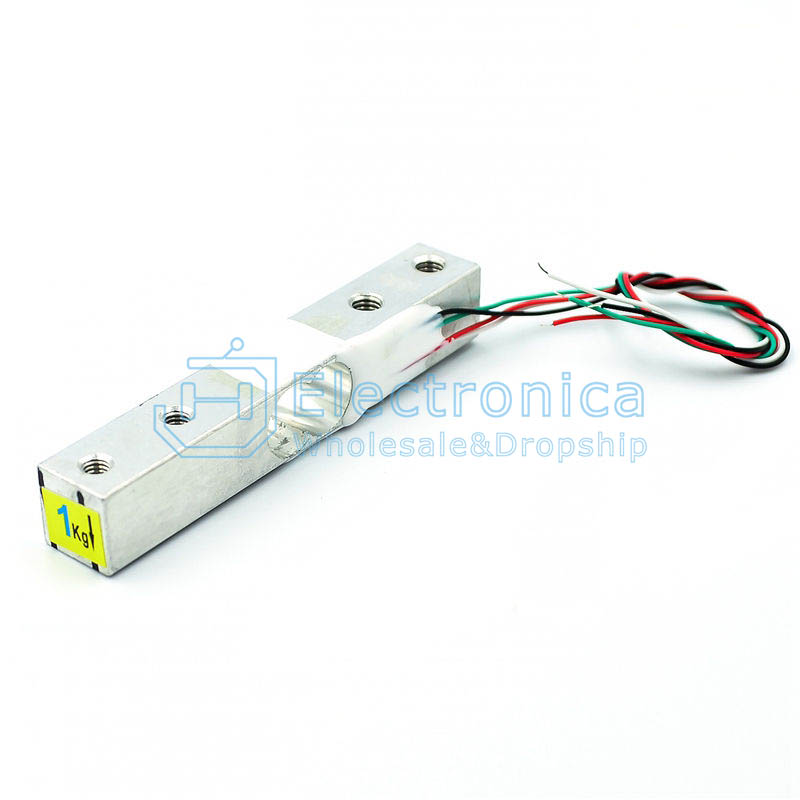

1KG/5KG/10KG/20KG YZC131 Micro Scale Weight Sensor

SKU : YXB183 Brand : JH Stock

Price : $ 0.65

100 +: $0.65500 +: $0.651000 +: $0.65

Style：

1kg
5kg
10kg
20kg

Quantity :

- +

ADD TO CART
