Description

Component Introduction:
Model:BF350-3AA/1.5AA
Sensitivity coefficient:2.0
Strain:2%
Grid wire:2×3.5mm
Base size:5×4.5mm
Base material:modified phenolic base
Grid wire material:constantan
Resistance value:350 ohms
Fatigue life:>10000000 times
Soldering flux:ordinary soldering rosin

Product Introduction:
Voltage:5V
Output analog voltage: 0-3.5V
Secondary transistor reverse protection (to prevent power supply from being reversed)
Red LED power indicator light on the board
Analog output
Bending angle 0-30°
The greater the curvature, the higher the output voltage
With zero potentiometer
The output starting voltage can be adjusted using a potentiometer
Board size:32×17mm

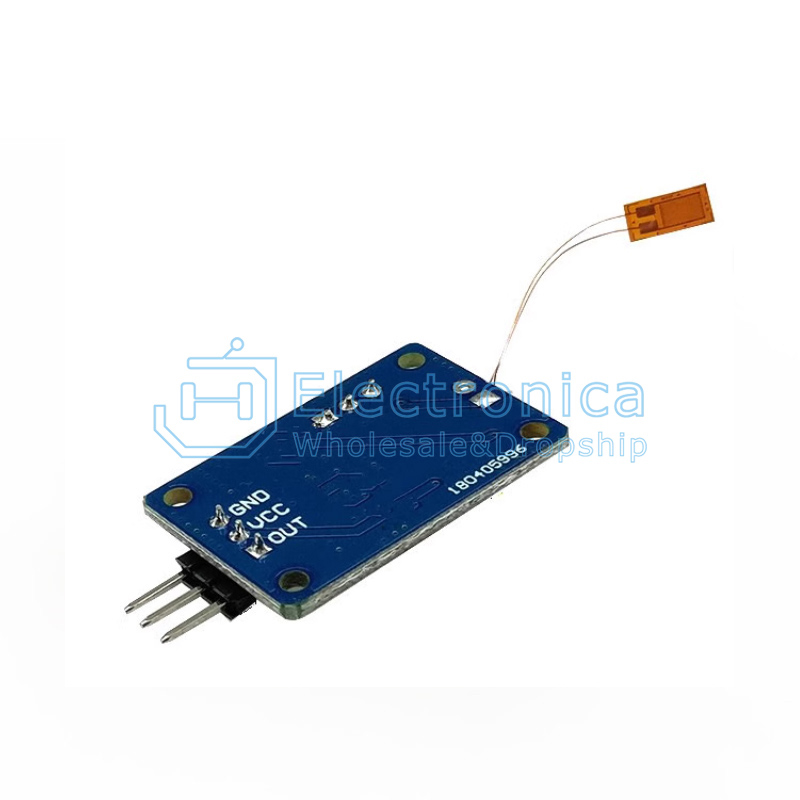

Pin output definition printed on the back of the board

The working principle of resistance strain gauges is based on the strain effect, which means that when a conductor or semiconductor material undergoes mechanical deformation under external forces, its resistance value changes accordingly. This phenomenon is called the "strain effect"
Attach the strain gauge to the measured object and bend it along with the strain of the measured object, so that the metal foil inside is bent along with the strain. Many metals change their resistance when mechanically bent

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

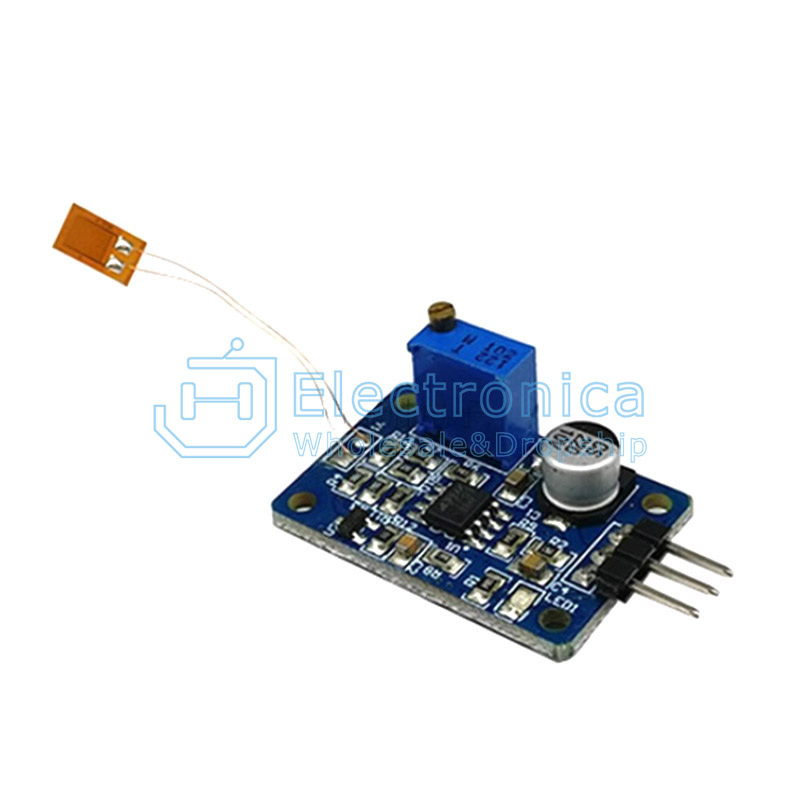

BF350 Strain-Gauge Module

SKU : YXC1080 Brand :

Price : $ 1.84

100 +: $1.84500 +: $1.841000 +: $1.84

Quantity :

- +

ADD TO CART
