Description

Weight:4g
Product size:33.5mm×20.4mm
1.Two selectable differential input channels

2.On-chip active low noise PGA with selectable gain of 32, 64 and 128
3.On-chip power supply regulator for load-cell and ADC analog power supply
4.On-chip oscillator requiring no external component with optional external crystal
5.On-chip power-on-reset
6.Simple digital control and serial interface: pin-driven controls, no programming needed
7.Selectable 10SPS or 80SPS output data rate
8.Simultaneous 50 and 60Hz supply rejection
9.Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
10.Operation supply voltage range: 2.6 ~ 5.5V
11.Operating Temperature Range:-20 degree ~ +85 degree

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

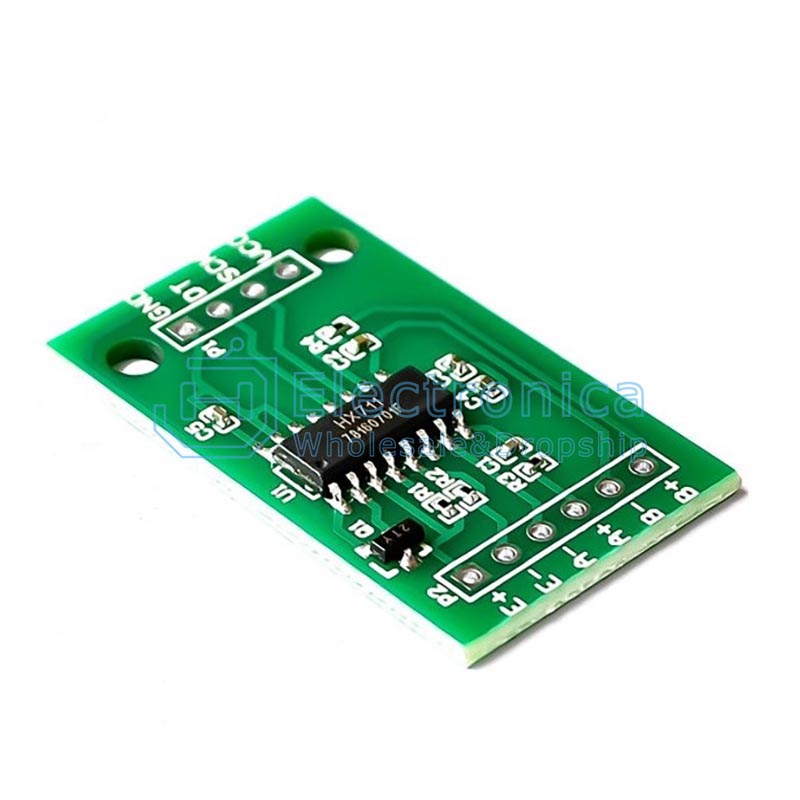

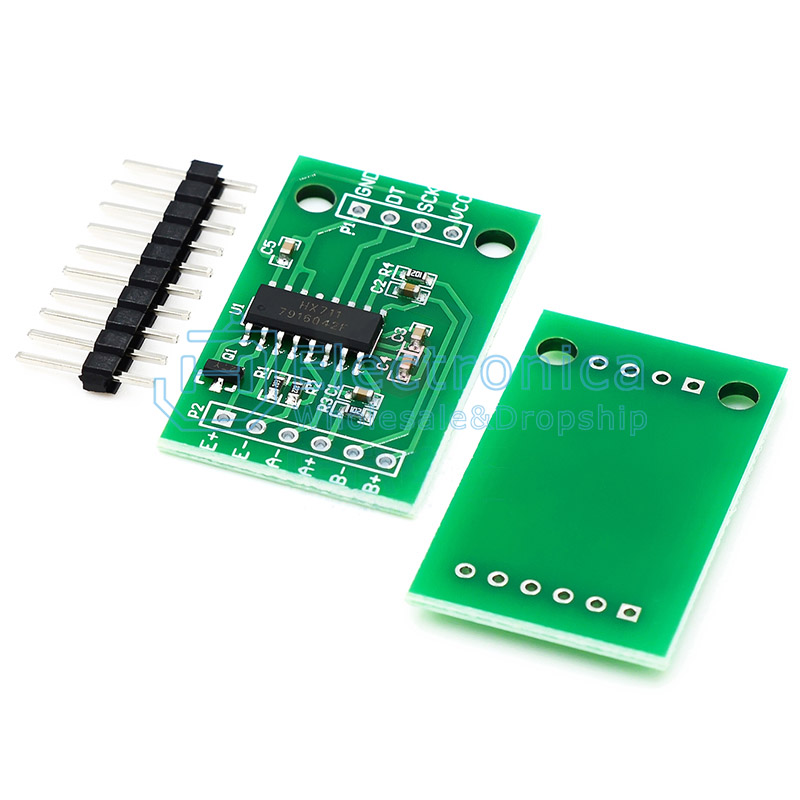

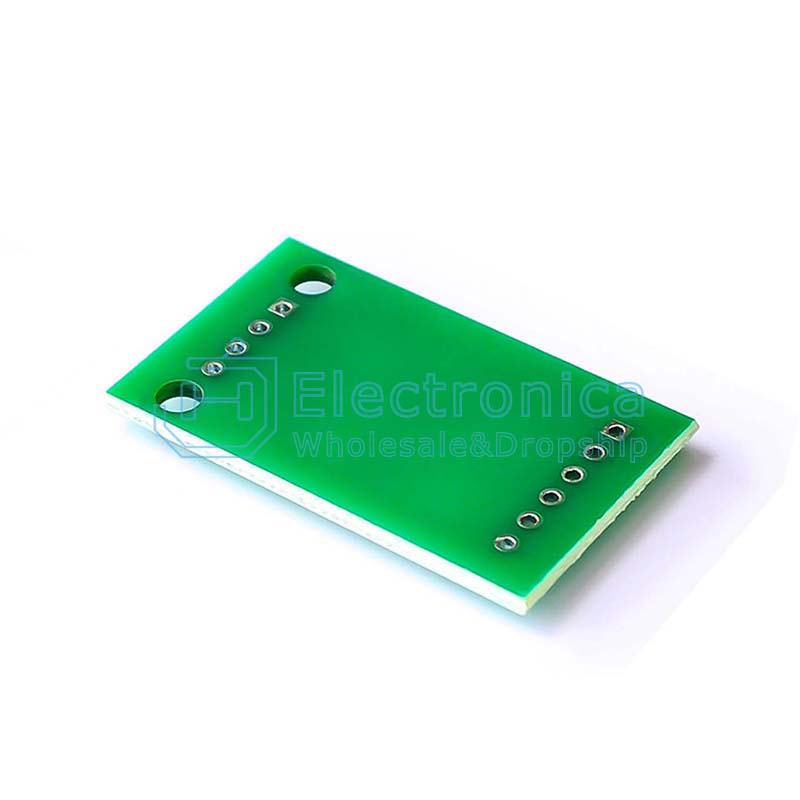

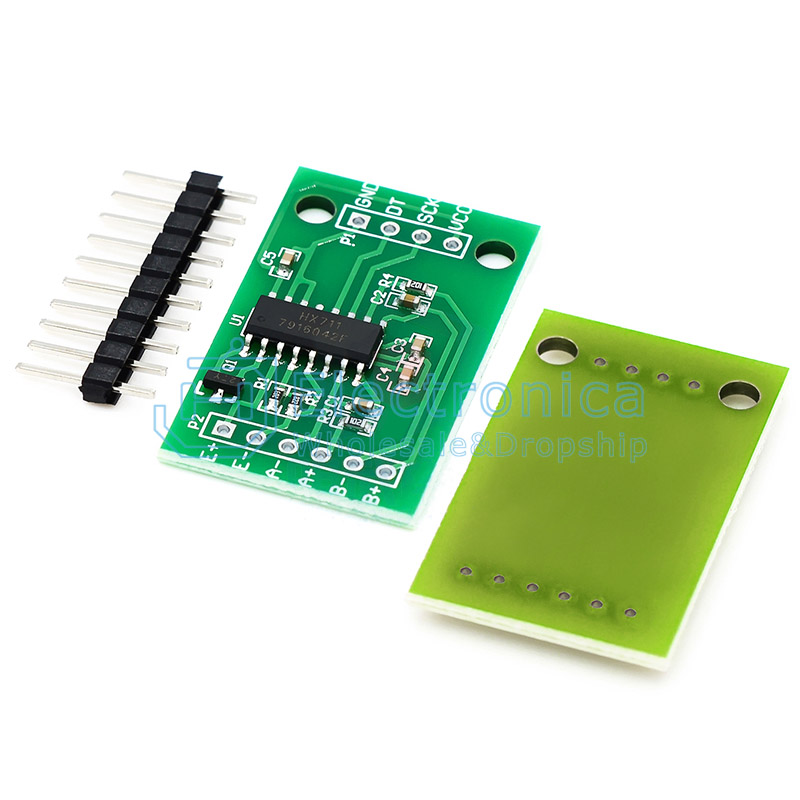

Dual Channel HX711 Load Cell Sensor 24Bit

SKU : YXB179 Brand : JH Stock

Price : $ 0.27

100 +: $0.27500 +: $0.271000 +: $0.27

Style：

HX711 green
HX711 green(backside without tin)

Quantity :

- +
