Description

Operating voltage:DC 1.7~3.6V
Relative accuracy:typical ±8pa =0.5m(700~900hpa,25~40°C)
Current consumption:3.4 μA at 1 Hz pressure and temperature,2.0 μA in sleep mode
Operating temperature:-40~+85℃
Detection range:300~1250hpa
Communication Interface:I2C/SPI

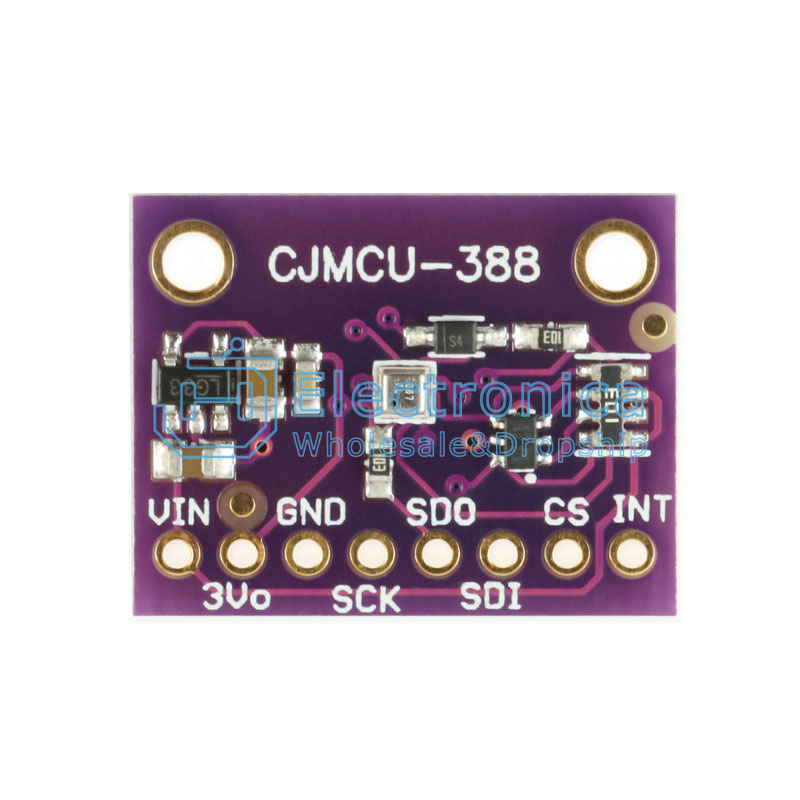

Pin Description
VIN:power supply positive
3VO:3V output port
GND:ground
SCK:I2C/SPI serial clock line
SDO:I2C address selection bit
4-wire SPI mode data output port
SDI:I2C serial data line
4-wire SPI mode data input port
Input/output ports in 3-wire mode
CS:when the level is low,the SPI starts to communicate,and when the level is high,the SPI stops communication
INT:interrupt pin

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

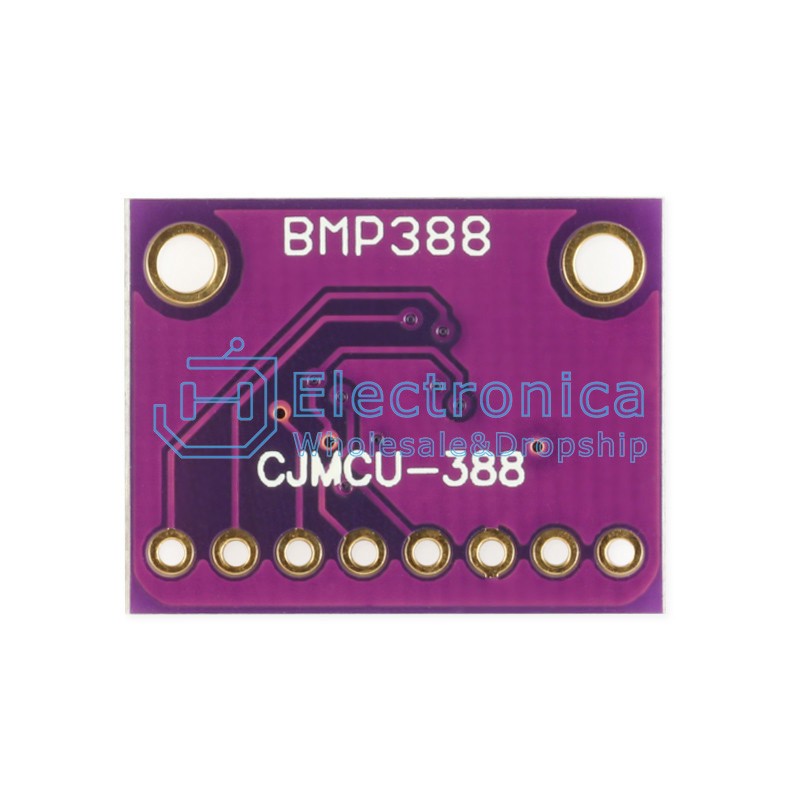

BMP388 Digital Temperature Atmospheric Pressure Sensor

SKU : YXS939 Brand :

Price : $ 3.44

100 +: $3.44500 +: $3.441000 +: $3.44

Quantity :

- +

ADD TO CART
