Description

Size: Approx. 34mmx34mm

Range:50kg
Zero point output:±0.3mV/V
Output sensitivity:1.0±0.15mV/V
Insulation resistance ℃≥2000MΩ
Excitation voltage:5-10V DC
Line length parameter:45cm
Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.

When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.

The sensor use the following three methods:
1.Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
2.The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
3.The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

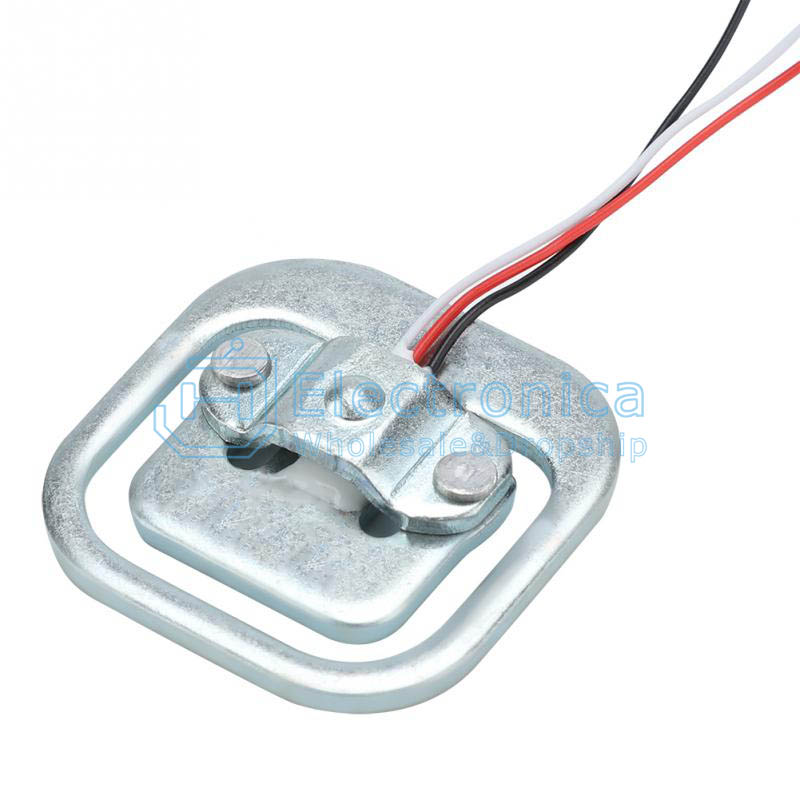

50KG Body Weighing Sensor

SKU : YXB178 Brand : JH Stock

Price : $ 0.24

100 +: $0.24500 +: $0.241000 +: $0.24

Style：

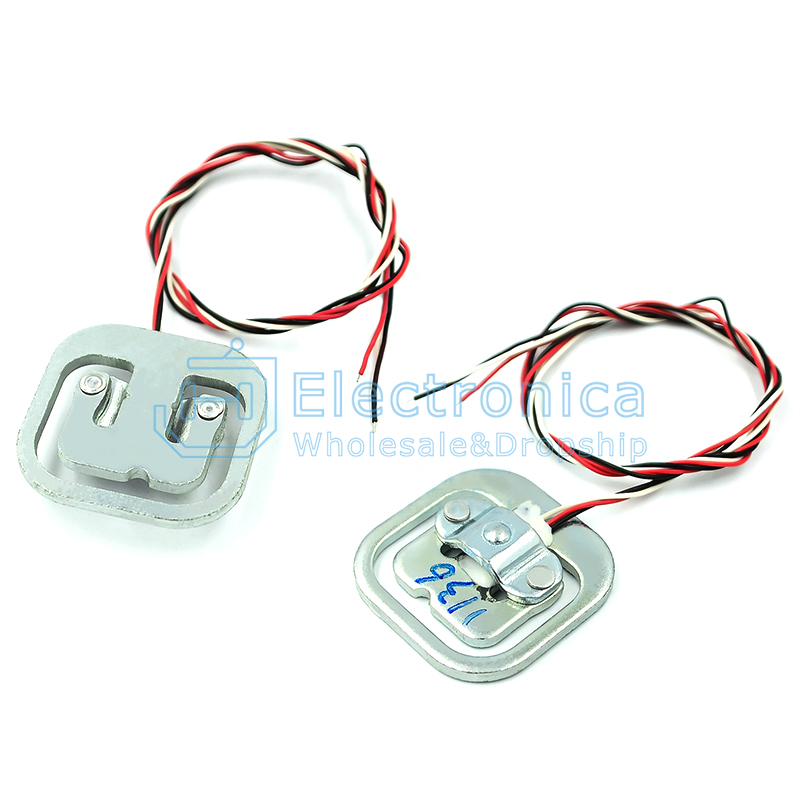

50KG

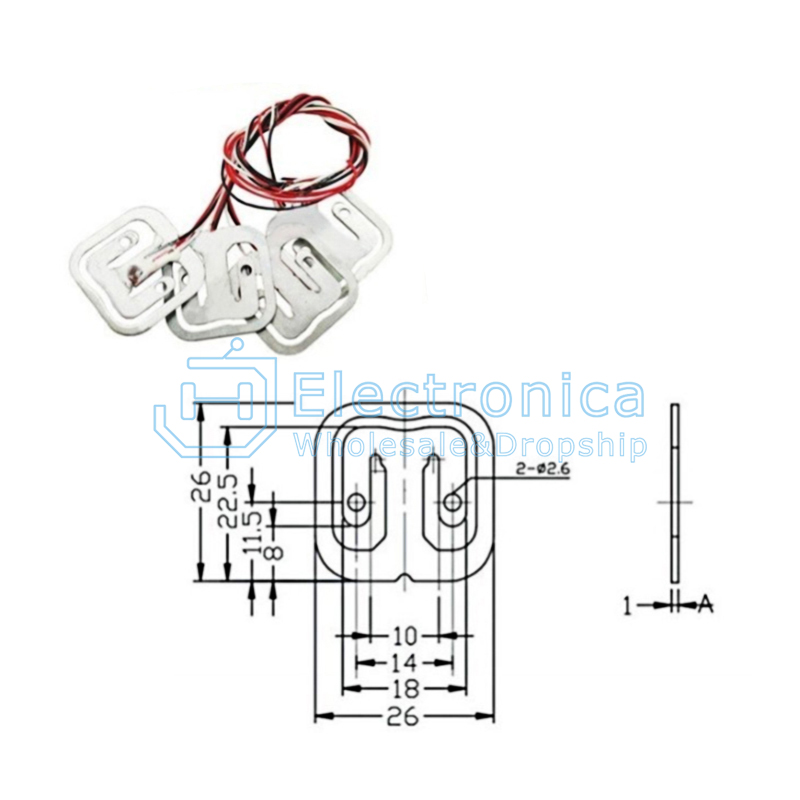

5KG
