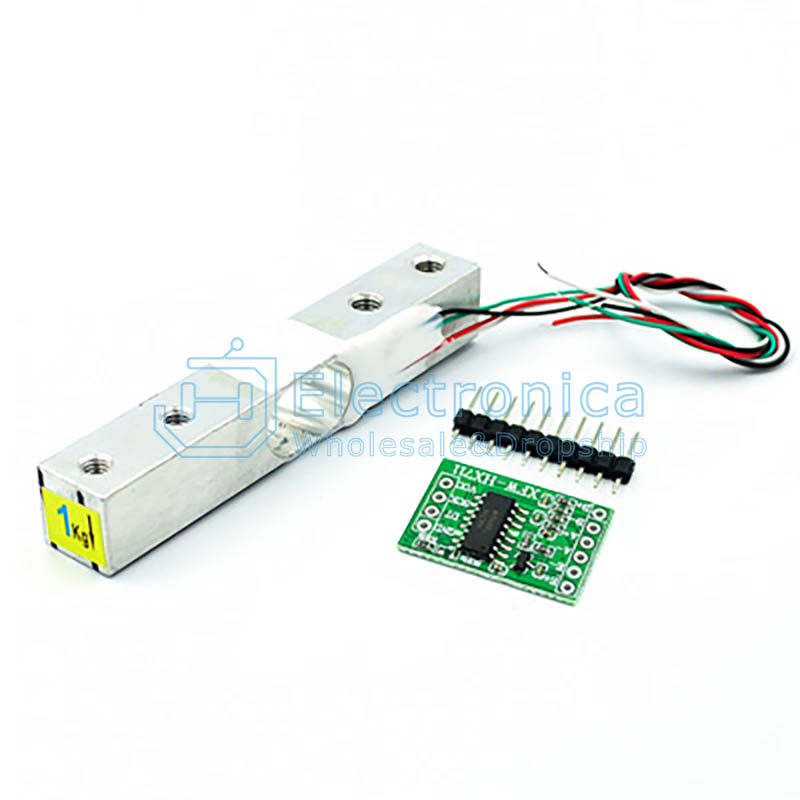

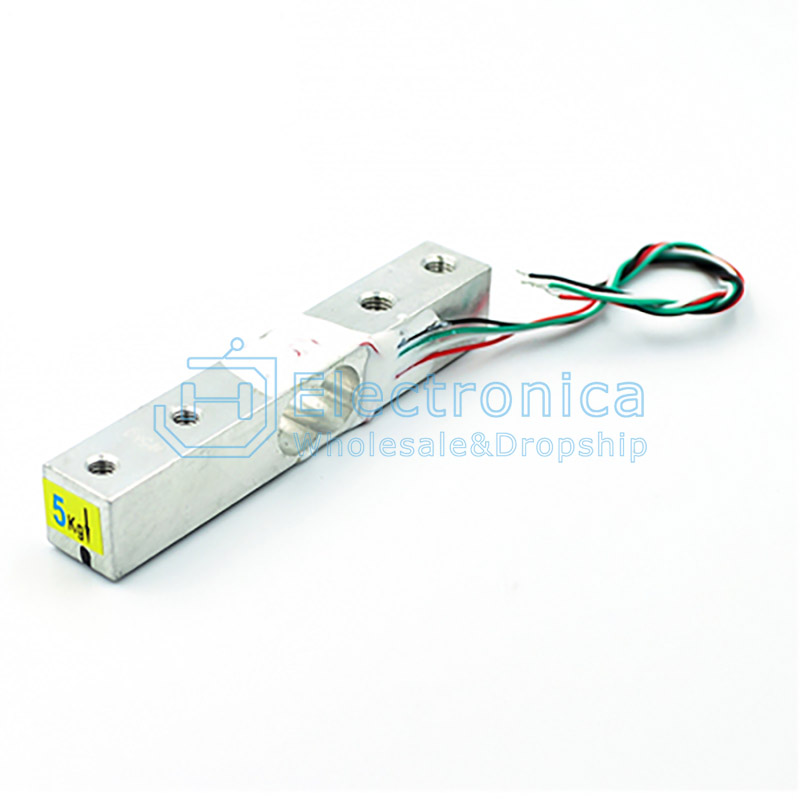

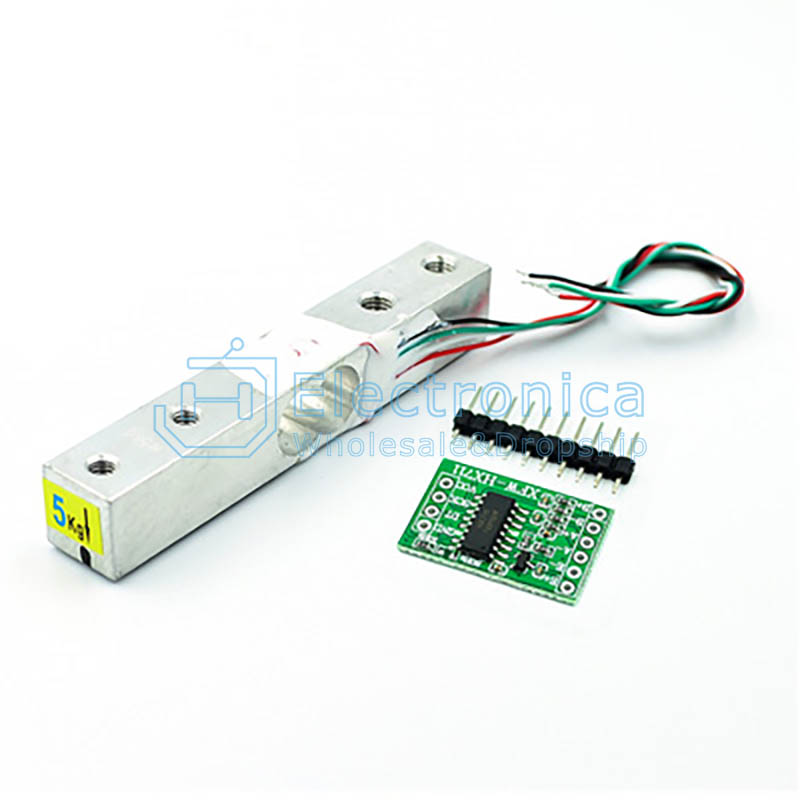

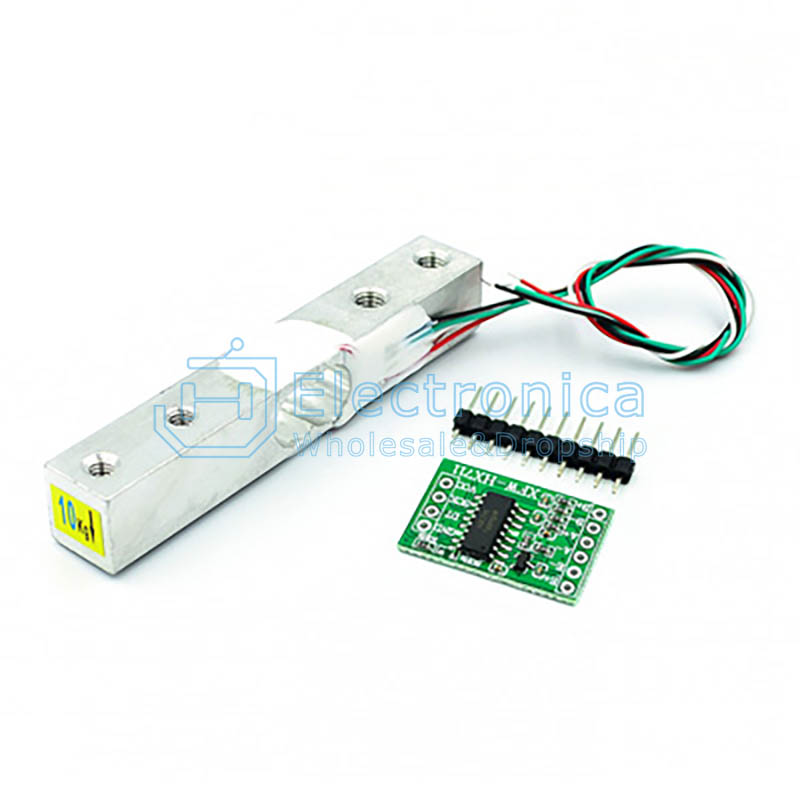

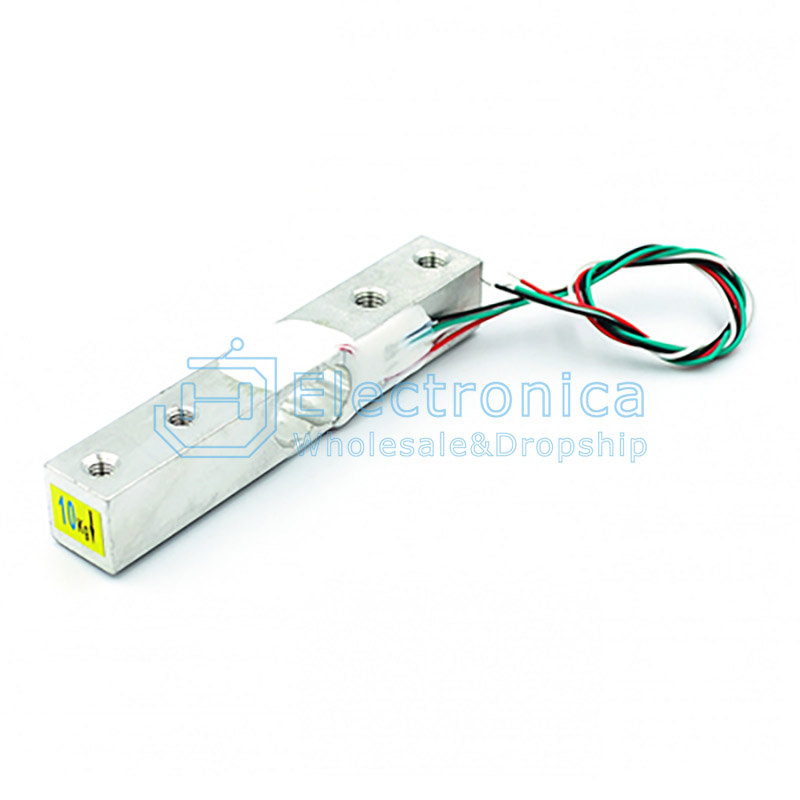

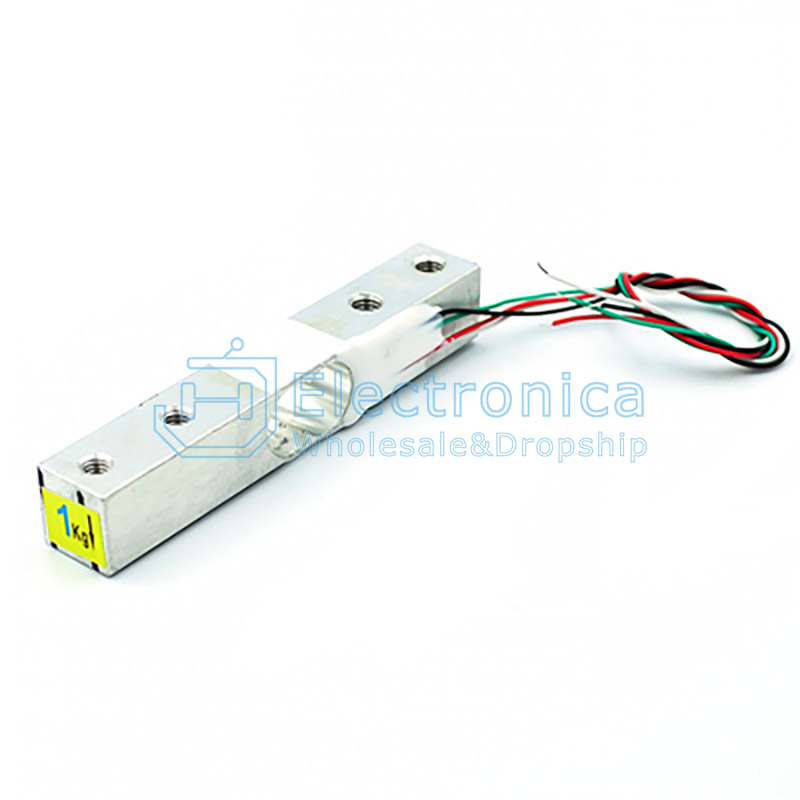

Description

Size: 81×13.5×13.5mm

Technical Parameters

Range: 1-10kg
Output sensitivity: 1.0±0.1mV/V
Zero output: ±0.1mV/V
Repeatability: 0.05% F.S
Creep: 0.05% F.S/3min
Nonlinear: 0.05% F.S
Lag: 0.05% F.S
Output impedance: 1000±5% ohms
Zero temperature drift: 0.05% F.S/10°C
Temperature sensitivity drift: 0.05% F.S/10°C

Lead Cable
Motivation is positive: red
Incentive negative: green
Signal is positive: black

signal Negative : white
