Description

Product Parameters:
Withstand voltage:≤36V
Peak current:2.2A
Continuous current:2A
Product Size:62.4*45mm

Product Features:
This module is a two-phase four wire stepper motor drive control module. The module uses the original imported Toshiba Step THB6128 dual full bridge MOSFET driver with low conduction resistance, which can be selected from various sub segments such as 1, 2, 4, 8, 16, 32, 64, and 128. The chip has an automatic half current locking function, greatly reducing motor heating during locking. The chip is equipped with built-in overheat protection and overcurrent protection, and a 5V logic signal power supply and voltage stabilizing chip, And a current limiting resistor is added to reduce the chip's heat generation during high voltage input. The reverse connection protection wiring is reasonably marked and clear, reliable and stable

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

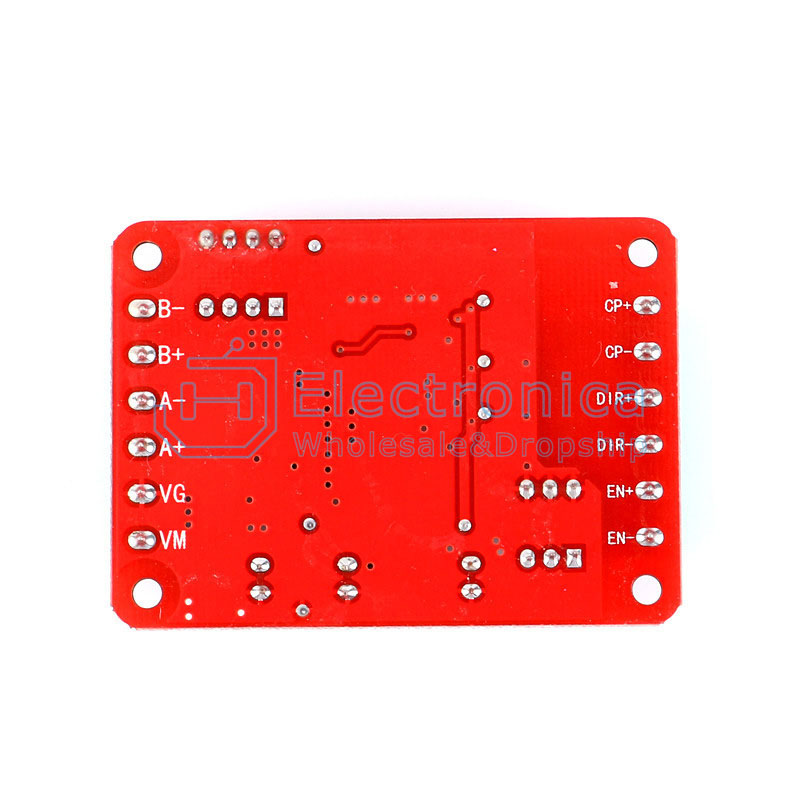

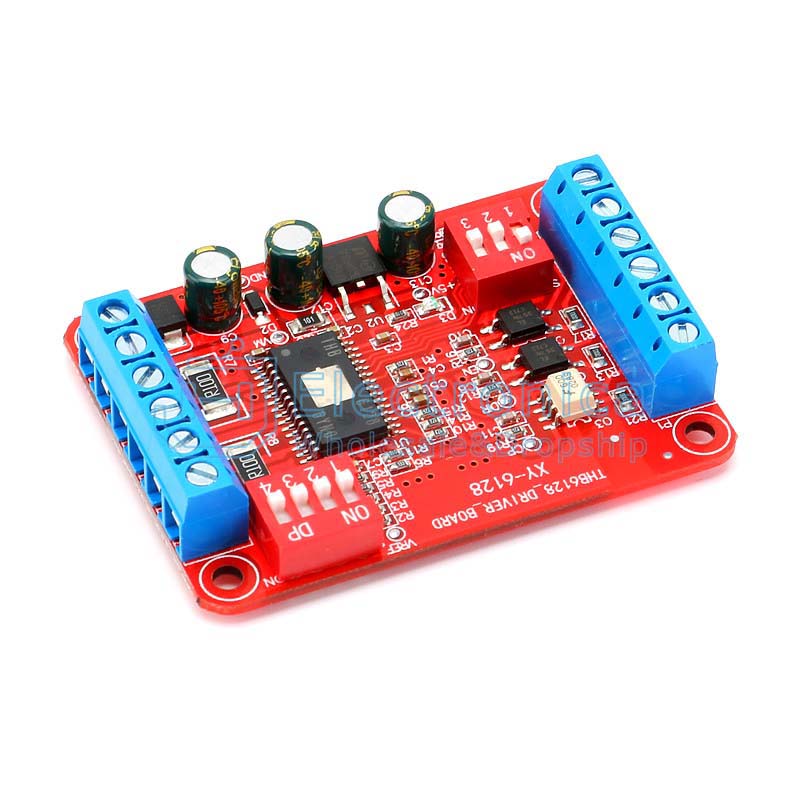

THB6128 Stepping Motor Drive Control Module

SKU : YXS1130 Brand :

Price : $ 5.55

100 +: $5.55500 +: $5.551000 +: $5.55
