Description

Input voltage:AC dual 12V-18V
Architecture:Double 5532 high, medium, and low three sections continuously adjustable
Frequency range:20-20KHz
Features:Two interfaces for DC12V output, input and output
Input interface:2.54mm interface, 5.08mm terminal
Output interface:2.54mm interface, 5.08mm terminal
Adjustment type:treble+mid range+bass+total volume
Appearance size:100*43.5*23mm
Installation hole:M3(diameter 3.3mm)

Features:
The main function of the front level tone board is to amplify the input audio signal and allow for adjustment of high, medium, and low tones/volume, and then amplify the power amplifier board
Classic circuit design with obvious adjustment of high, medium and low bass, low noise, and pleasant and pleasant sound quality
Rectifier diode parallel high-speed capacitor, large capacity filtering, super strong resistance to grid interference, clear and pure sound quality
78 and 79 dual voltage stabilization, large output amplitude, excellent music dynamics, and excellent material selection
Double 5532 design, high magnification, clear treble, natural mid range, and powerful bass

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

NE5532 HIFI Preamplifier

SKU : YXC1086 Brand :

Price : $ 3.58~5.80

100 +: $3.58~5.80500 +: $3.58~5.801000 +: $3.58~5.80

style：

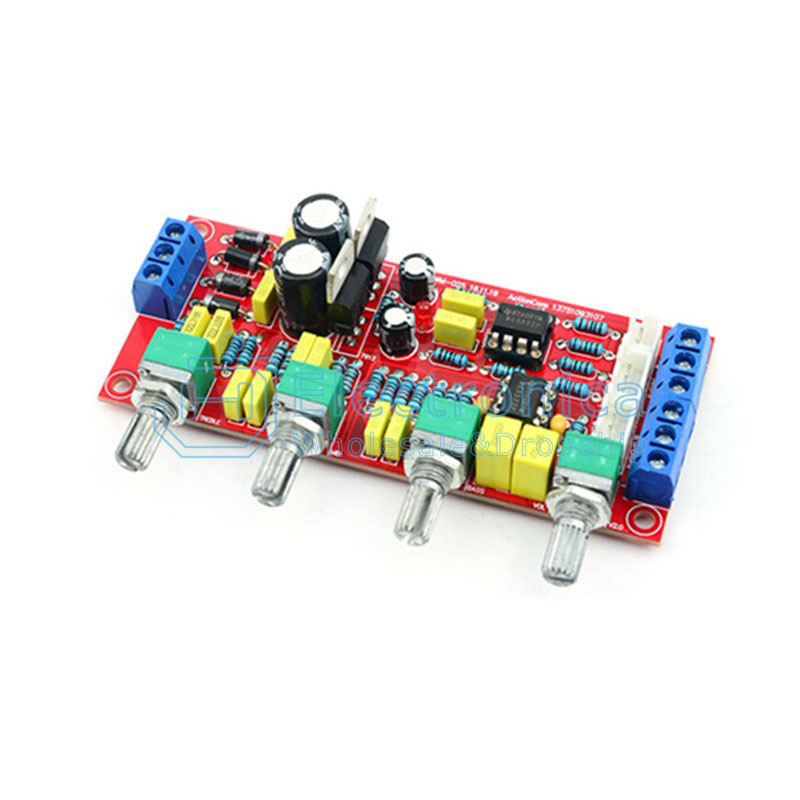

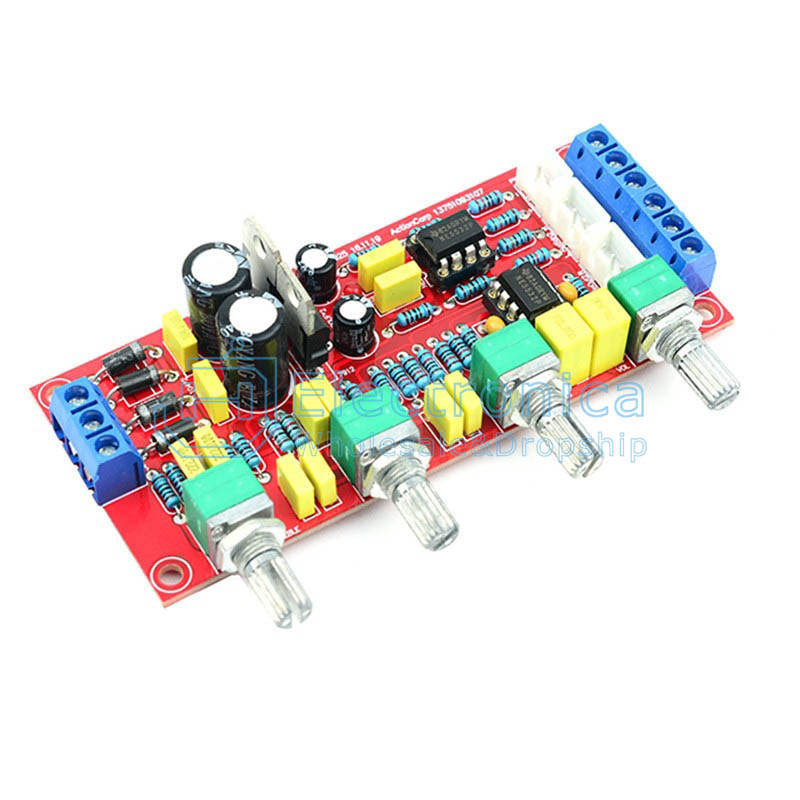

WM-025 standard edition finished board

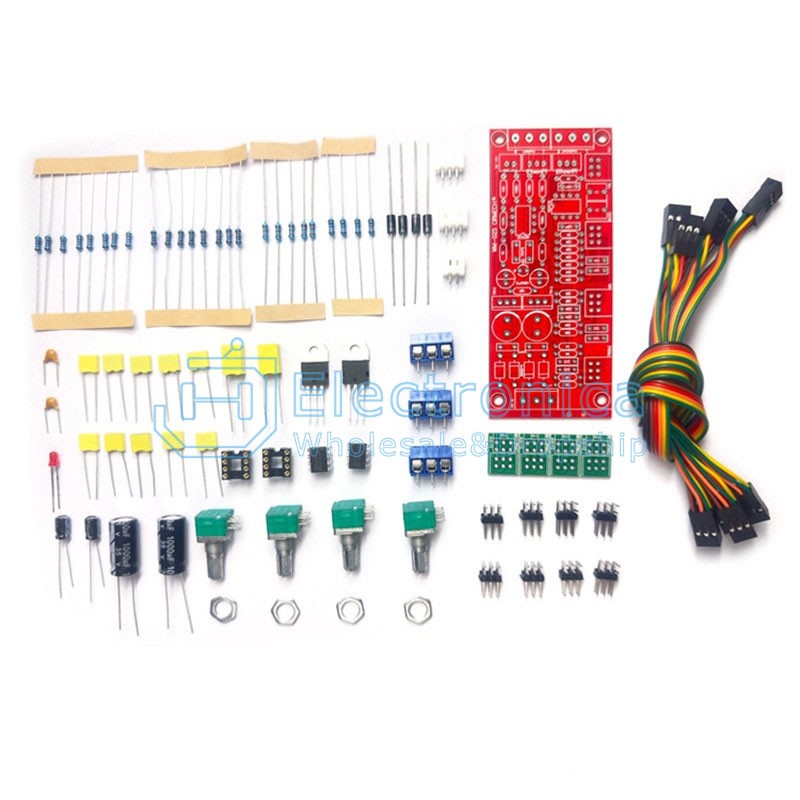

WM-025 standard edition bulk parts

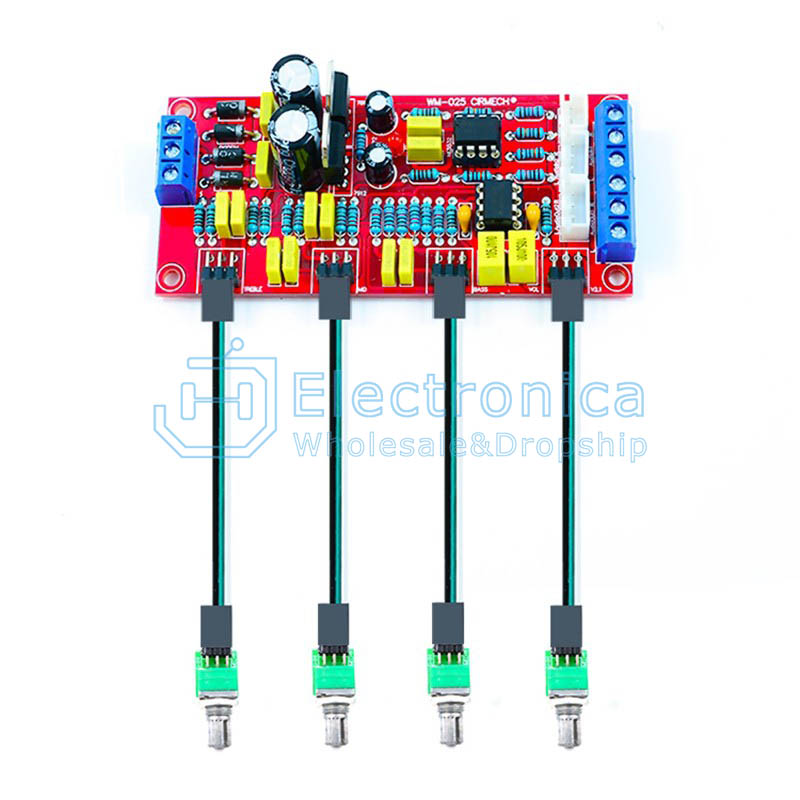

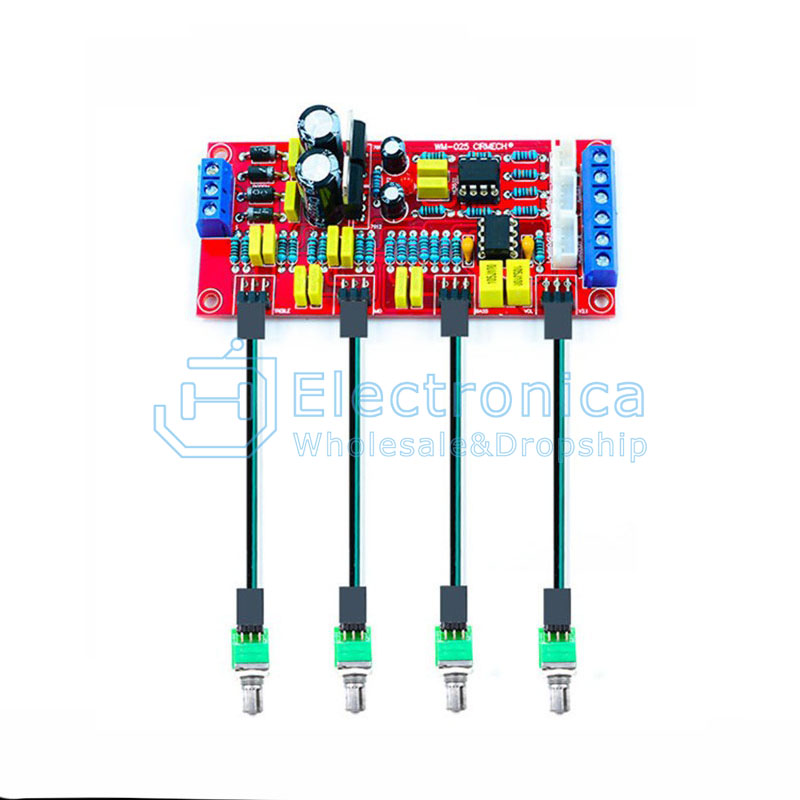

WM-065 potentiometer extension version finished board

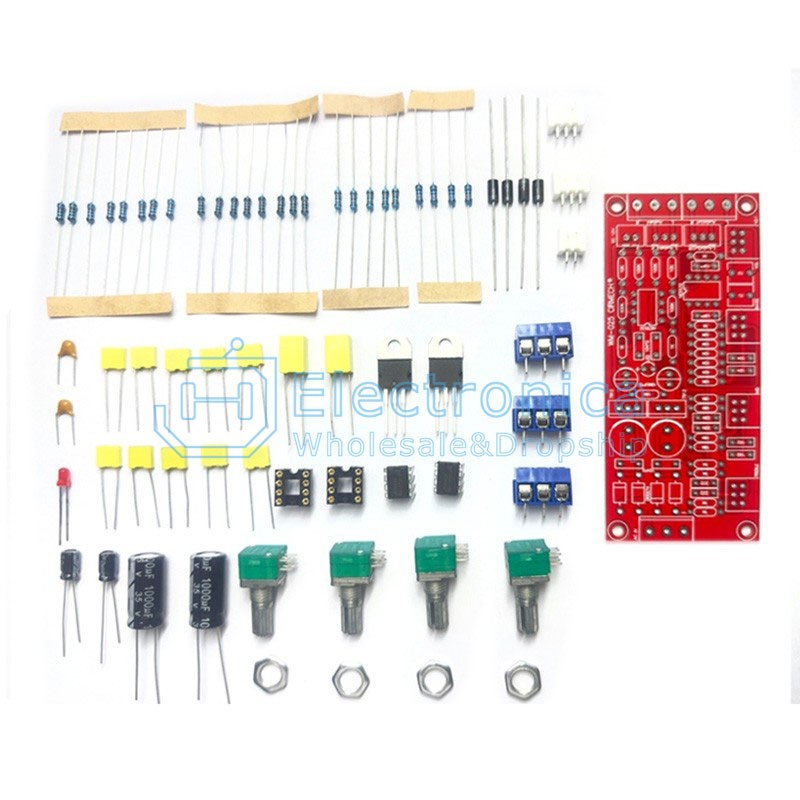

WM-065 potentiometer extension plate bulk parts

Quantity :

- +

ADD TO CART
