Description

Input voltage: 3-12VDC.
magnification: 1.5-1000 times adjustable, zero adjustable
Signal input voltage: 100uV - 300mV
Signal output range: ± (Vin-2V)
Negative voltage output: higher than -Vin. As the
negative voltage chip output resistance problem,
the actual output is higher than -Vin, the greater
the load power, the greater the negative voltage drop.
Offset voltage: 50μV.
Input bias current: 1.0nA (max).
Common mode rejection ratio: 100 dB
Offset voltage drift: 0.6μV / ℃ (maximum).
Stability: 2μV / month maximum
Size: 32 * 22mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

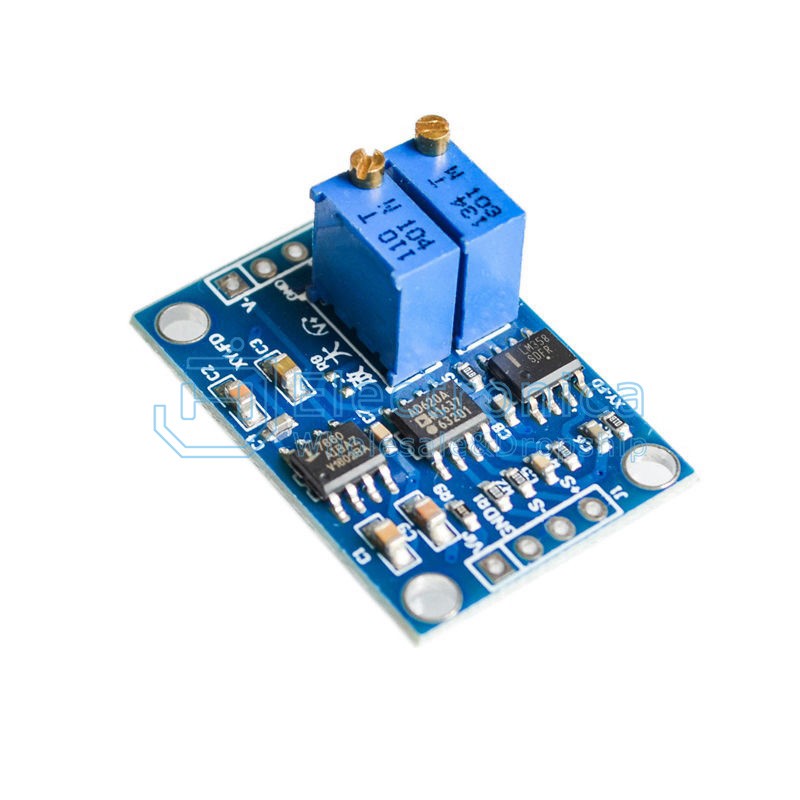

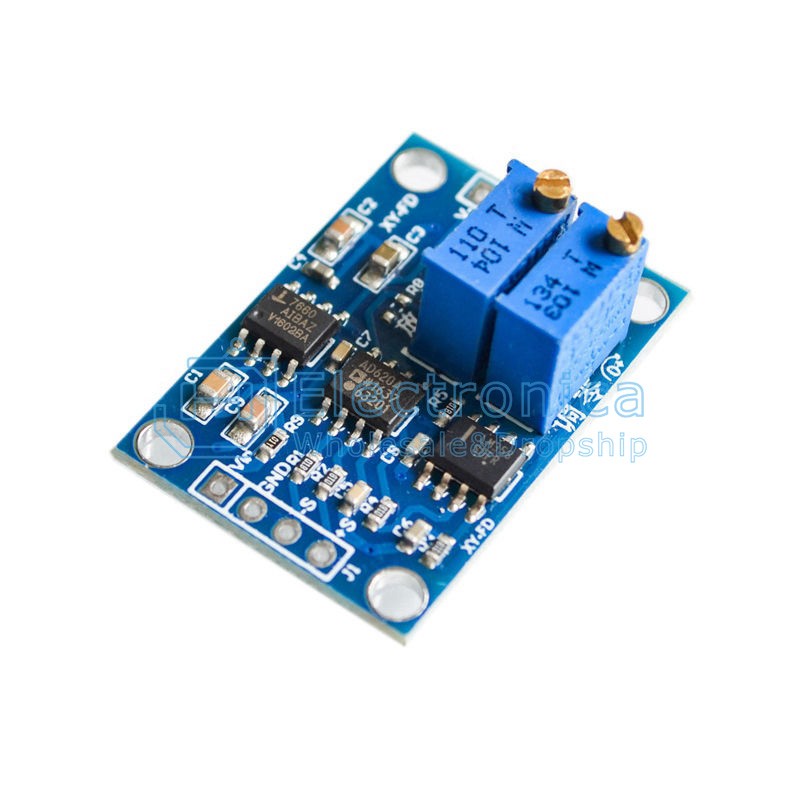

AD620 Voltage Instrument Amplifier

SKU : YXK385 Brand : JH Stock

Price : $ 1.39

100 +: $1.39500 +: $1.391000 +: $1.39
