Description

This fully enclosed UDA1334A I2S stereo DAC output is perfect for any I2S-output audio interface.
Logic levels from 3.3V - 5V (a rarity), and can process multiple different formats by setting two pins high or low. The DAC will process data immediately and give you a clear analog stereo line level output.

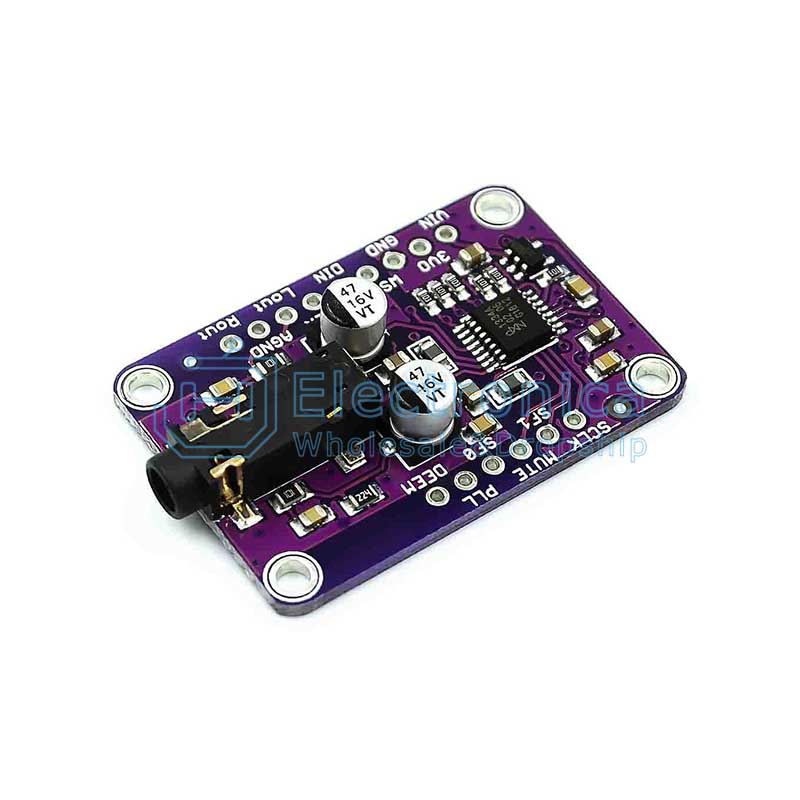

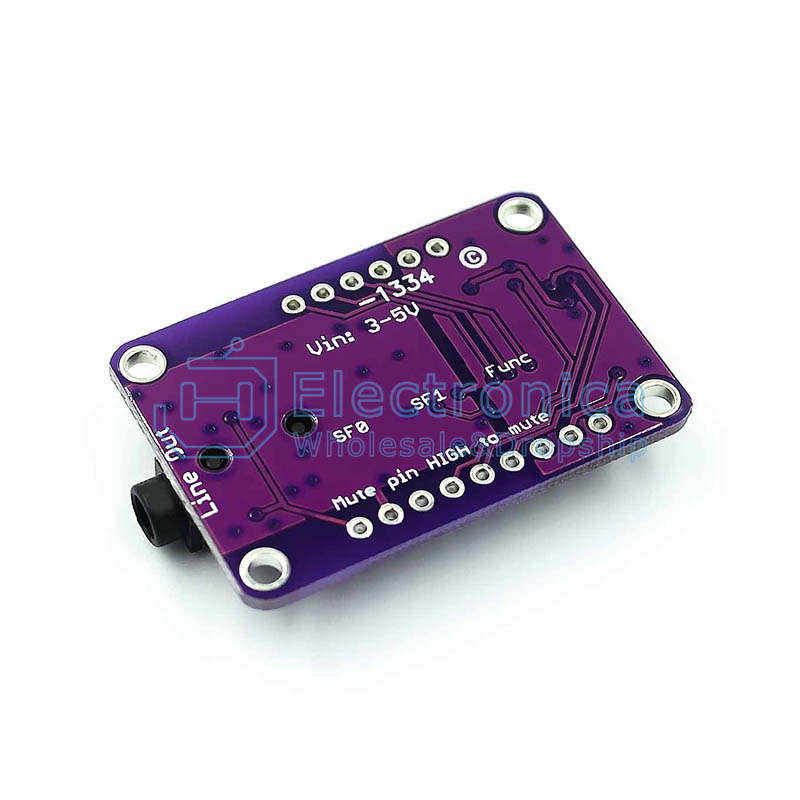

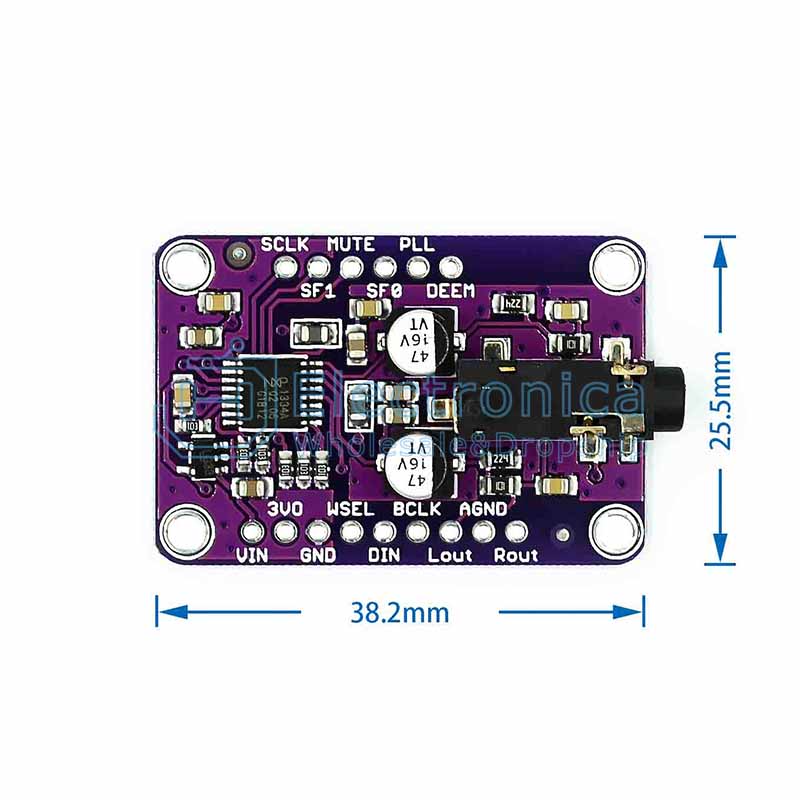

UDA1334A DAC Module CJMCU-1334 UDA1334A I2S DAC Audio Stereo Decoder Module Board For Arduino 3.3V-5V

Feature:
This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. 3.3V - 5V logic levels (a rarity), and can process multiple different formats by setting two pins to high or low. The DAC will process data immediately, and give you a clear, analog, stereo line level output. It's even cool with MCLK-less I2S interfaces such as the Raspberry Pi (which it's ideal for)-a built in PLL will generate the proper clock from the incoming signal. For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data. You can set it up to take an input system/master clock but we default-set it to just generate it for you, so you only need to connect Data In, Word Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a deemphasis filter you can turn on

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

UDA1334A I2S Stereo Decoder

SKU : YXC414 Brand : JH Stock

Price : $ 2.28

100 +: $2.28500 +: $2.281000 +: $2.28
