Description

Work Voltage:DC 6V-12V
Operating frequency:0.1-2000MHz

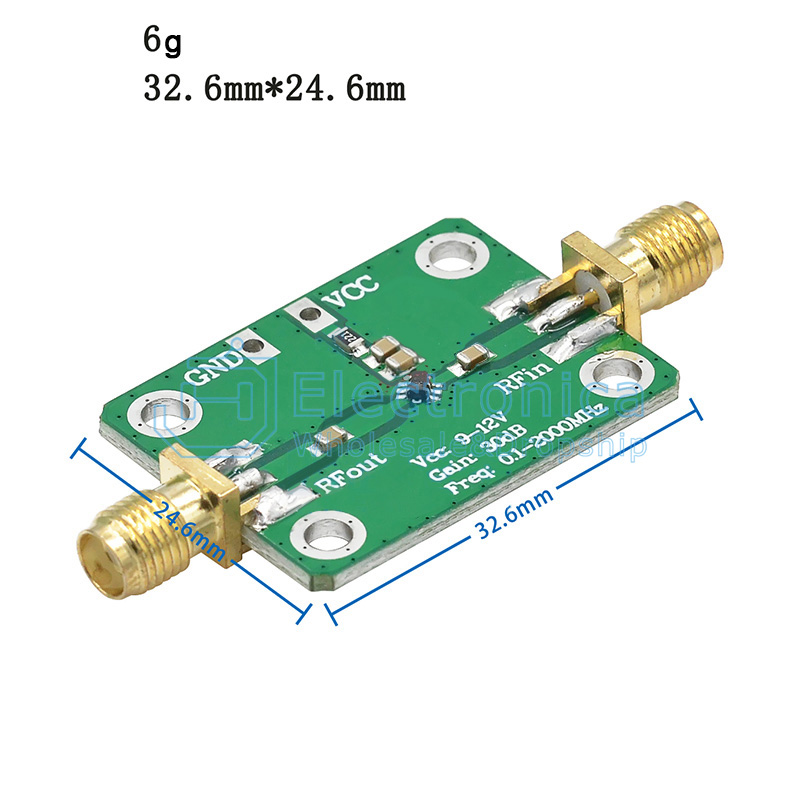

Size:32.6*24.6mm
Weight:6g
Default input and output capacitance:0.1μF
It has very good gain flatness at operating frequencies less than 500MHz
When the supply voltage changes from 5-8V,it can be used as a variable gain amplifier,and the gain increases with the supply voltage
When the supply voltage is 8-10V,the gain at the low frequency end reaches 30dB,and the amplifier has a low noise figure and good stability
When the voltage is 12V,the gain is reached,and the gain at the low frequency end can reach 32.5dB

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

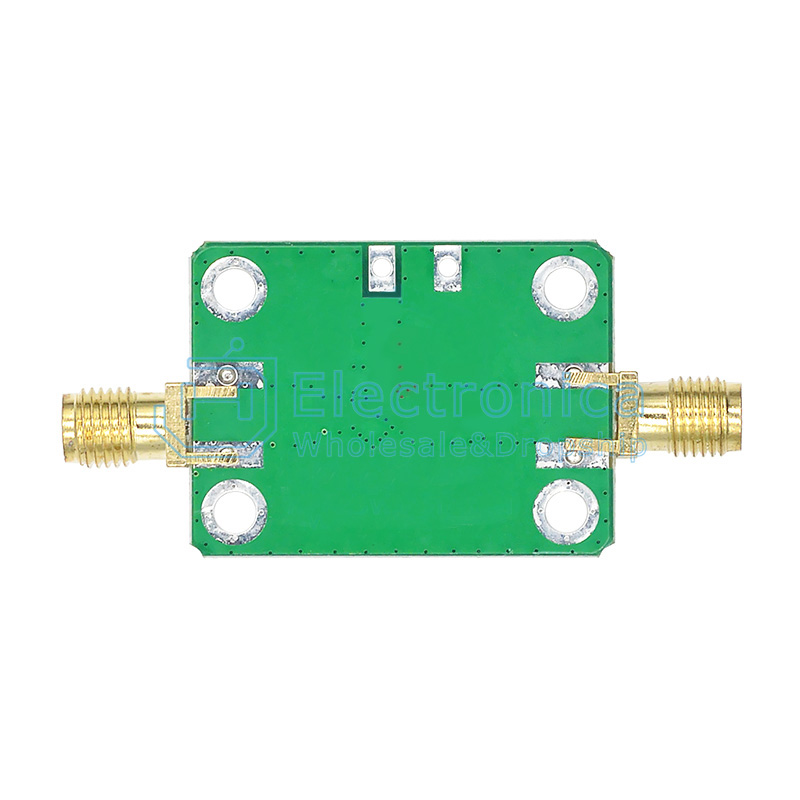

0.1-2000MHz RF Wideband Amplifier

SKU : YXS1385 Brand :

Price : $ 1.03

100 +: $1.03500 +: $1.031000 +: $1.03

Quantity :

- +

ADD TO CART
