Description

Automatic gain control (AGC)
3 gain Settings (40dB, 50dB, 60dB)
Programmable action time
Programmable action and release time ratio
2.7V to 5.5V power voltage range
Low input noise density 30nV/
Low THD: 0.04% (typical value)
Low power off mode
Built-in 2V low noise microphone bias
Provides a space-saving 14 pin TDFN (3mm x 3mm) package
Temperature range from -40°C to +85°C expansion stage

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

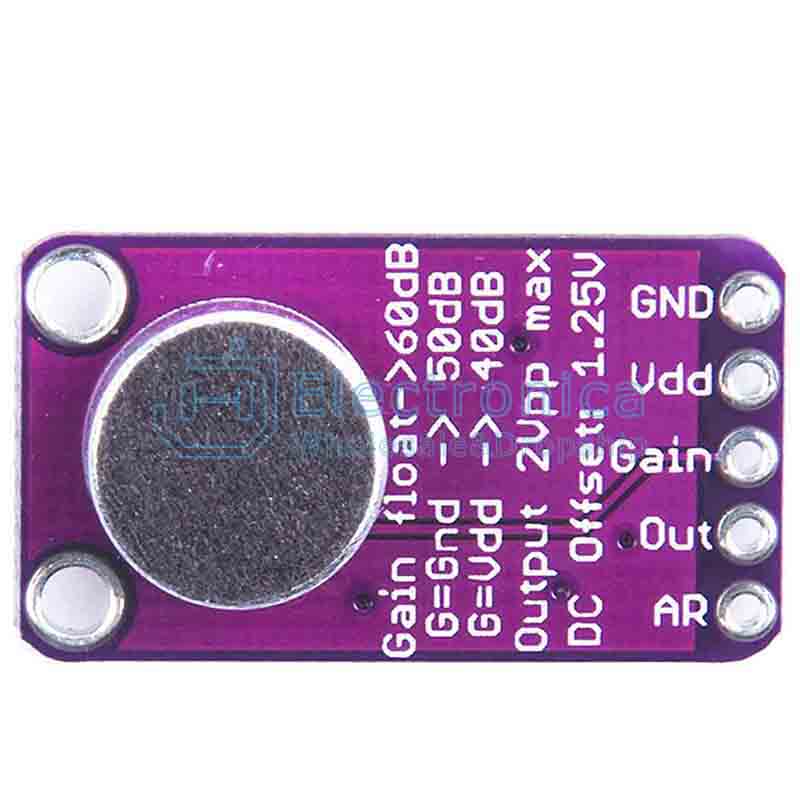

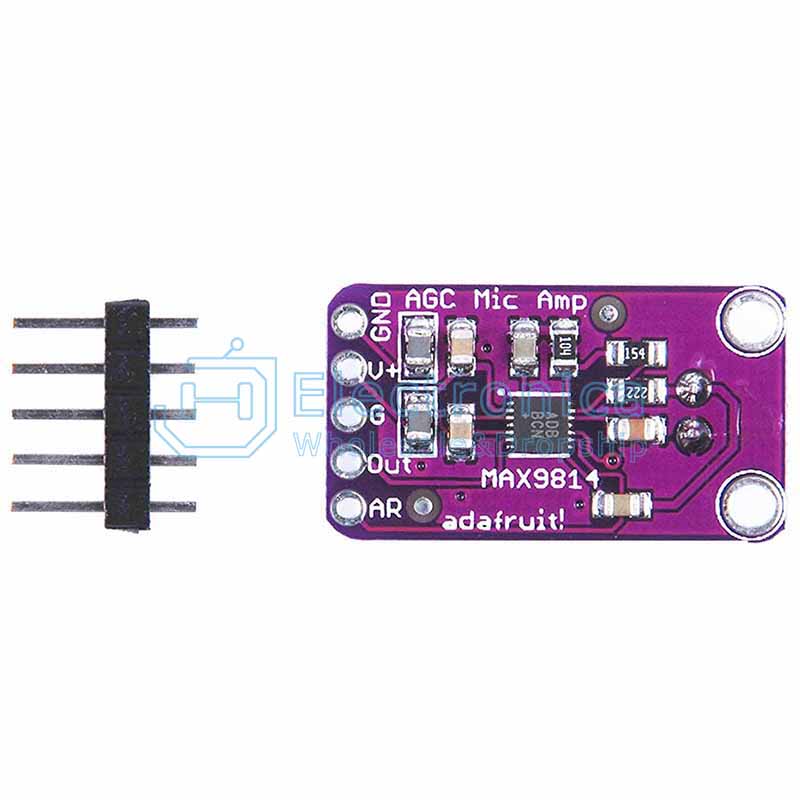

MAX9814 AGC Microphone Amplifier Module CMA-4544PF-W

SKU : YXB321 Brand : JH Stock

Price : $ 1.23

100 +: $1.23500 +: $1.231000 +: $1.23

Quantity :

- +

ADD TO CART
