Description

1 Features
1 SNR of 128dB A-Weighted.
THD of 112.5dB
Current-Feedback Architecture
Output Voltage Noise of 0.9μV rms at
Gain = 1V/V (16 Load)
Power Supply Range: ±5V to ±15V
1300V/μs Slew Rate
Can be configured for Single Ended or Differential
Inputs
Independent Power Supplies for Low Crosstalk
2 Applications
ProfessionalAudio Equipment
HiFi Smartphone
Consumer Home Audio Equipment
Headphone Drivers
3 Description
In applications requiring a high-power output, very high fidelity headphone amplifier,the TPA6120A2
replaces a costlydiscrete design and allows music, not the amplifier, to be heard. The TPA6120A2's
current-feedback AB amplifier architecture delivers high bandwidth, extremely low noise, and up to 128dB of dynamic range.
Three key features make current-feedback amplifiers outstanding for audio. The first feature is the high slew rate that prevents odd order distortion anomalies. The second feature is current-on-demand at the output that enables the amplifier to respond quickly and linearly when necessary without risk of output distortion. When large amounts of output power are suddenly needed, the amplifier can respond extremely quickly without raising the noise floor of the system and degrading the signal-to-noise
ratio. The third feature is the gain-independent frequency response that allows the full bandwidth of the amplifier to be used over a wide range of gain settings.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

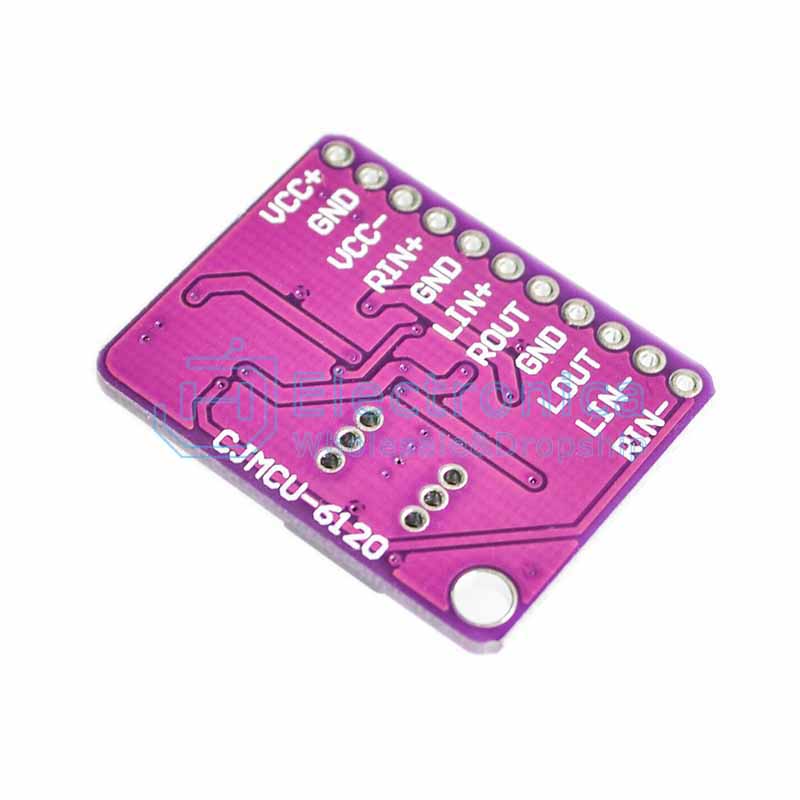

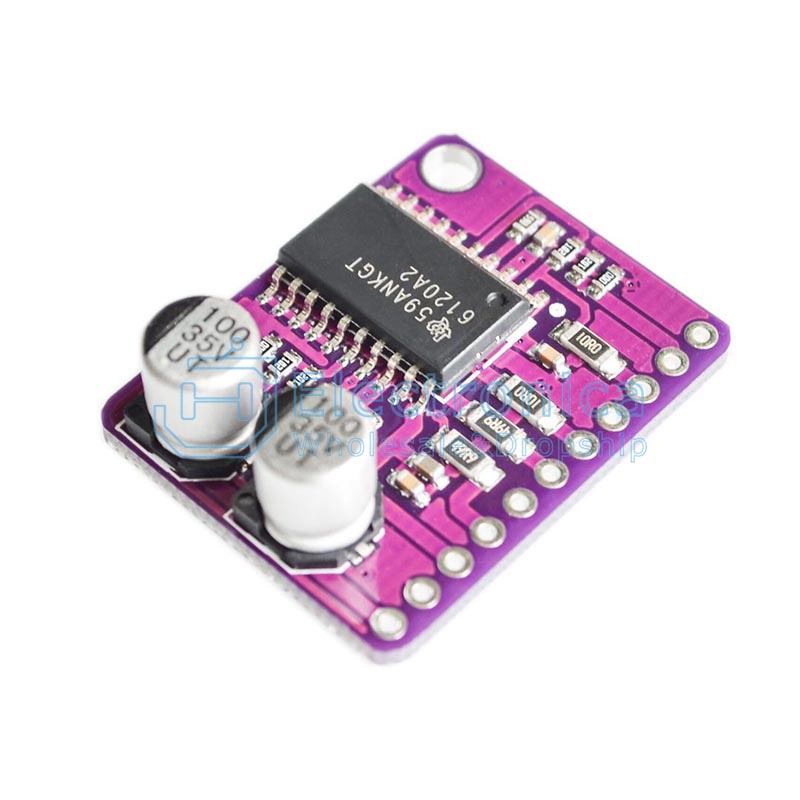

CJMCU-612 High Definition Stereo Headphone Amplifier Module TPA6120

SKU : YXK146 Brand : JH Stock

Price : $ 2.40

100 +: $2.40500 +: $2.401000 +: $2.40

Quantity :

- +

ADD TO CART
