Description

Product Parameters:
1. Power supply voltage:dual DC power supply ±58~±70V
2. Rated output power:500W (± 65V power supply with 4 ohm load and 10% distortion)
3. Efficiency:>=90%
4. Signal to noise ratio:90dB
5. Total harmonic distortion:380W (± 65 power supply 4 ohm horn, distortion<0.1%), 280W (± 65 power supply 8 ohm horn, distortion<0.1%)
6. Frequency response range:20Hz-20KHz
7. Horn:4-8 Ω
8. Voltage amplification factor:36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection:Yes
11. Output DC bias protection, i.e. horn protection:Yes
12. Over temperature protection:Yes, if the temperature of the heat sink field-effect tube exceeds 100℃, the output will be turned off
Overview:
According to the power formula P=U*U/R=voltage*voltage/load, power is determined by voltage and load. When the voltage is high and the load is small, the power increases. The voltage supply range of the board refers to the voltage range within which the board can operate normally, and not all voltages and load powers are as high as indicated. For example, when a 12V power supply is supplied to a 4 ohm load, the maximum power is 15W, and when a 8 ohm load is supplied, the maximum power is 7.5W; 24V power supply for 4 ohms, with a maximum power of 50W and a maximum power of 25W at 8 ohms; At any time, the power supply power must be greater than the power of the power amplifier, otherwise the high volume band cannot move, the power will decrease and the sound will be cut off, and the corresponding power output cannot be achieved

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

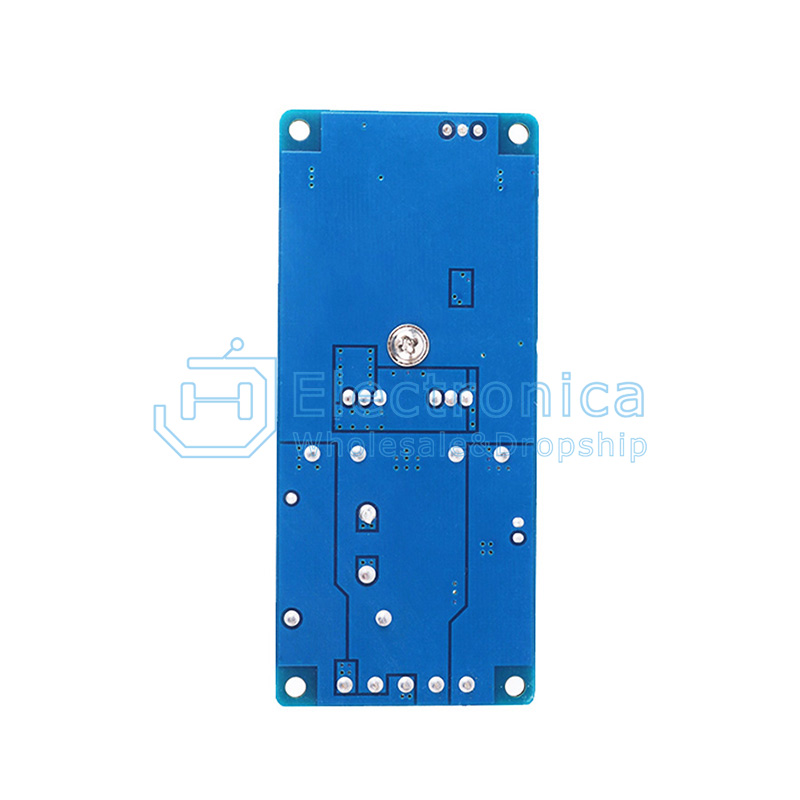

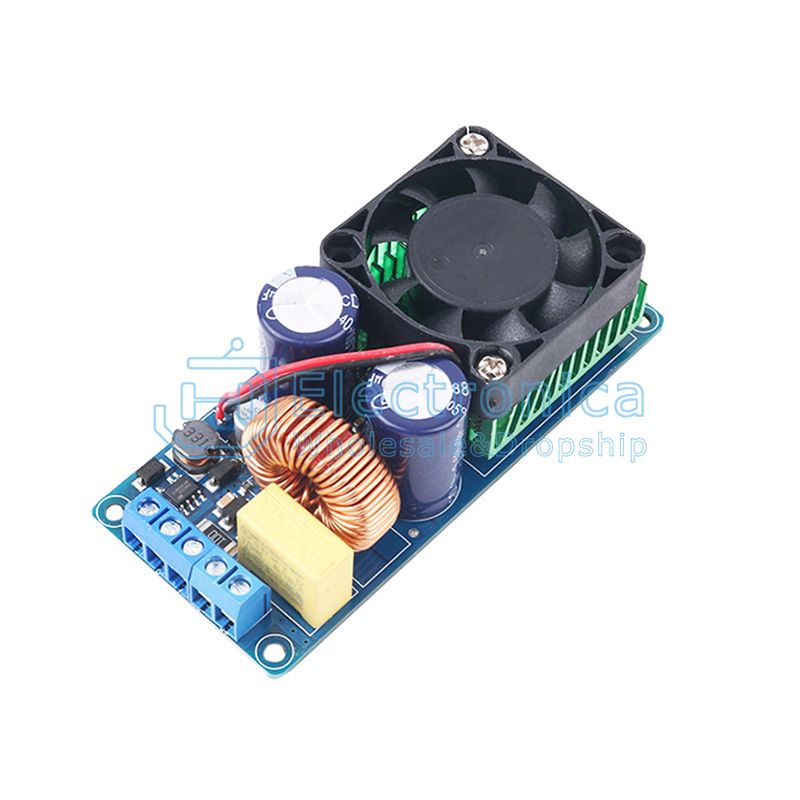

IRS2092S 500W High-power Class D HIFI Digital Power Amplifier Board

SKU : YXS1621 Brand :

Price : $ 4.15

100 +: $4.15500 +: $4.151000 +: $4.15

Style：

IRS 2092S high-power 500W
