1.this module is a pulse generation module, supply the control signal to stepper driver.
To control the stepper motor, it must be equipped with a drive.
2.this simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform.
3.the controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper.
4.can produce pulse signal, can also produce PWM signal, can choose the jumper.
5.the frequency of measurement: PUL and common cathode end.

Different stepper driver may mark different name
EN=ENA=FREE Enable
PUL=PULS=CLK Pulse
DIR=CW=CWW Direction
Common anode Connection method (B)
EN+ PUL+ DIR+ connect together to com+.
EN- connect EN
PUL- connect CLK
DIR- connect DIR

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

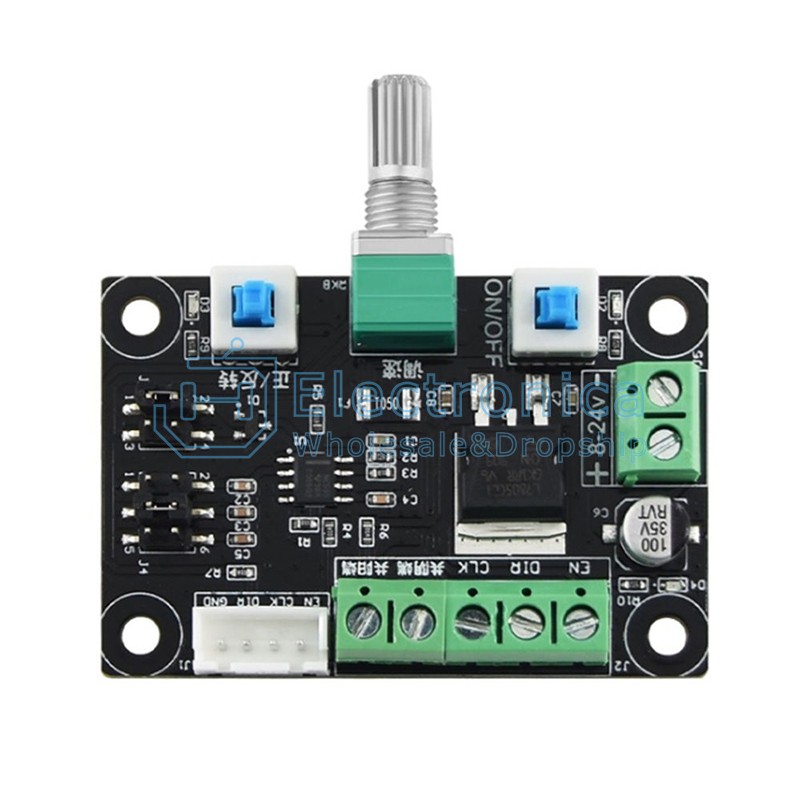

DC 12V 24V PWM Stepper Motor Pulse Signal Generator

SKU : YXB569 Brand : JH Sourcing

Price : $ 1.91
